DSK Series at a glance: Dynamo Skin, a hidden LED screen. A decorative finish panel in marble, wood veneer, concrete, metal, textile, gemstone, fabric, pattern or mirror clips over a 500 × 500 mm fine-pitch LED cabinet. Switched off, it is a wall, a counter or a floor. Switched on, the picture comes through the finish. Six pixel pitches from 1.25 mm to 3.9 mm, serviced from the front, for permanent interior installations.
Brochure: Download the DSK Series brochure (PDF, 3 MB). Six spreads cover the finish families, the LED cabinet behind the finish, panel sizes, installation, front service and the full specification.
What is a hidden LED screen?
A hidden LED screen is an LED display with a real-looking architectural finish on its face. When the screen is off, the surface reads as a solid wall, counter or floor in that finish: a marble reception wall, a timber-clad bar front, a brushed-metal column, a concrete desk. When the screen is on, the LED picture comes through the finish and the surface becomes a display. The DSK Series is Dynamo’s hidden LED screen range, and it sits in our custom LED displays family alongside the LED art display and the mirror LED display, which are the right products when the brief is a bare fine-pitch canvas or a mirror rather than a disguised wall.
Manufacturer’s render of the finish-panel system, not a Dynamo project.
How the DSK Series works

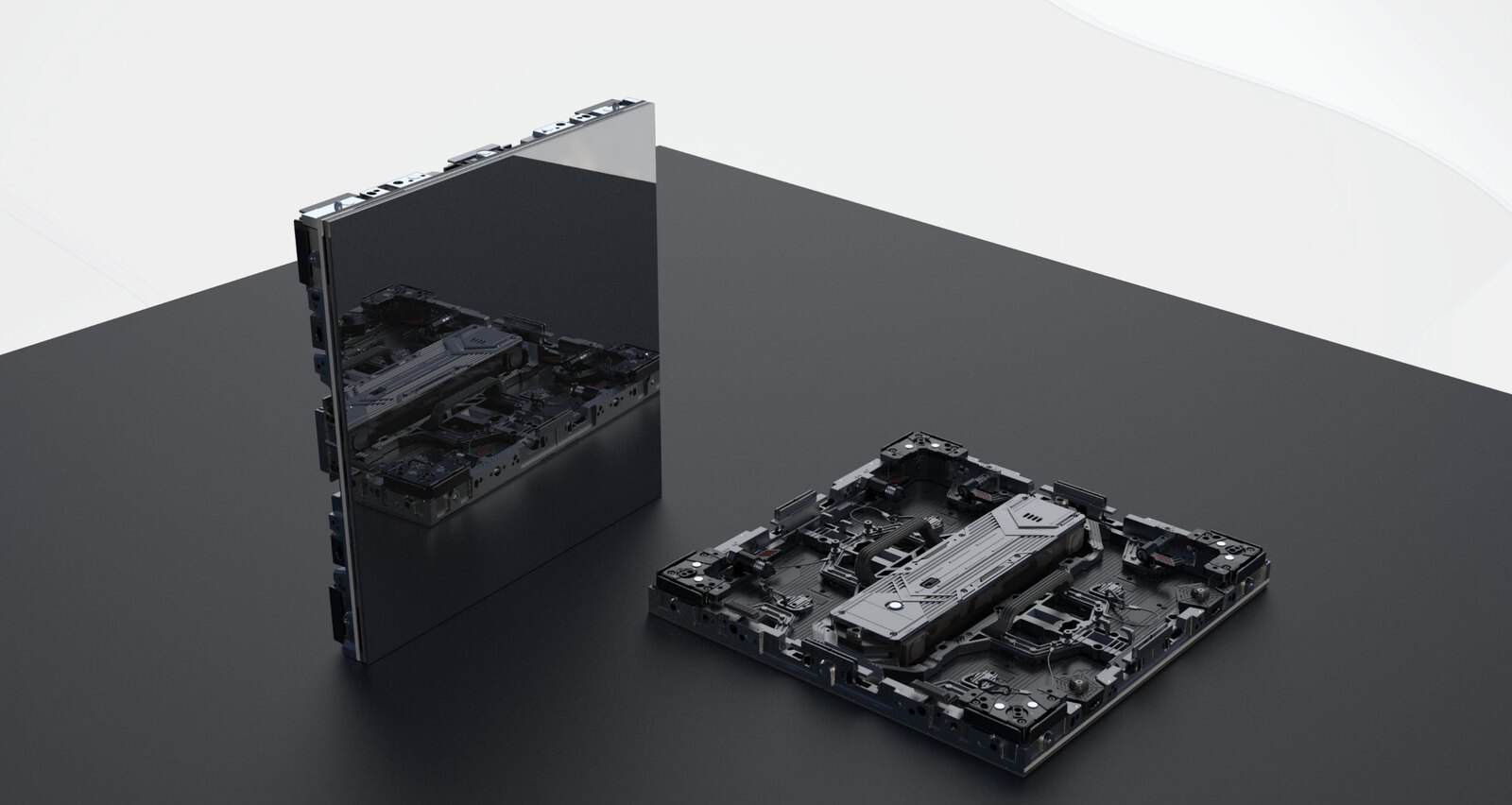

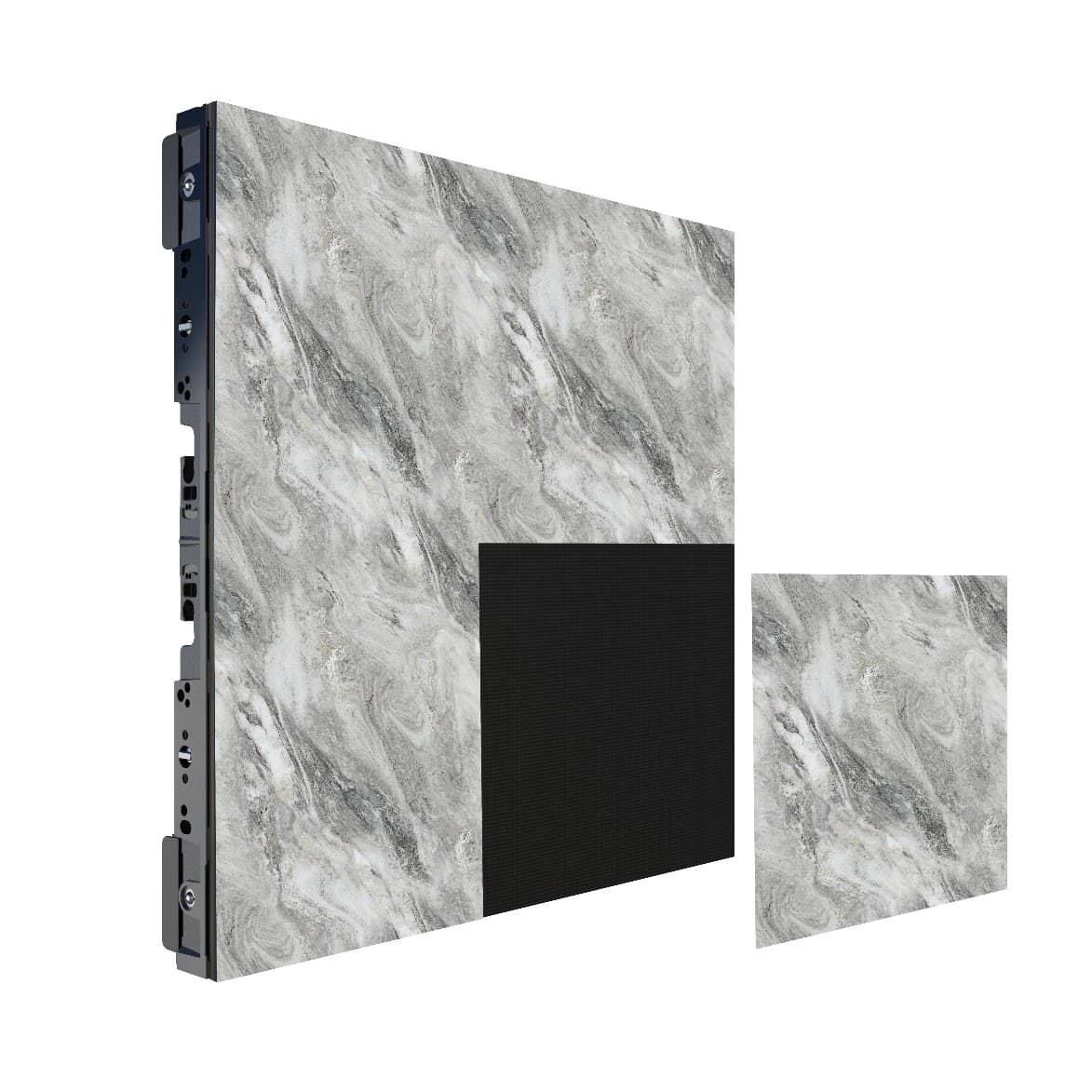

Each DSK Series screen is two parts supplied as one system. The LED is a 500 × 500 × 55 mm fine-pitch cabinet from our DRX Series, built from four 250 × 250 mm modules and weighing 9.2 kg. The finish is a thin decorative panel made to the same 250 mm module grid, in 250 × 250, 500 × 500 or 500 × 1,000 mm sizes, that clips over the face of the cabinet. The LED pixels sit directly behind the finish layer, so the picture reads cleanly through it, and the finish continues over plain backing panels around the live area so the whole surface reads as one.
Manufacturer’s render of the finish-panel system, not a Dynamo project.

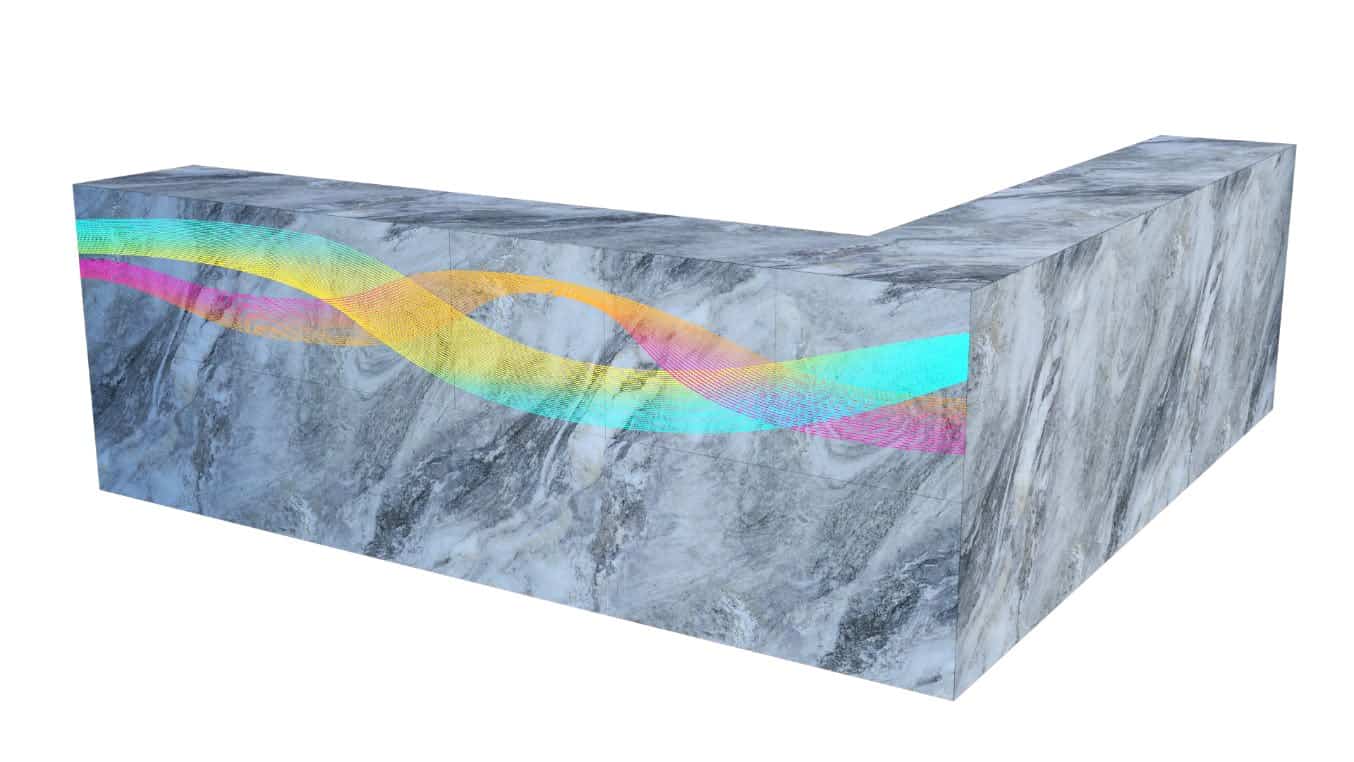

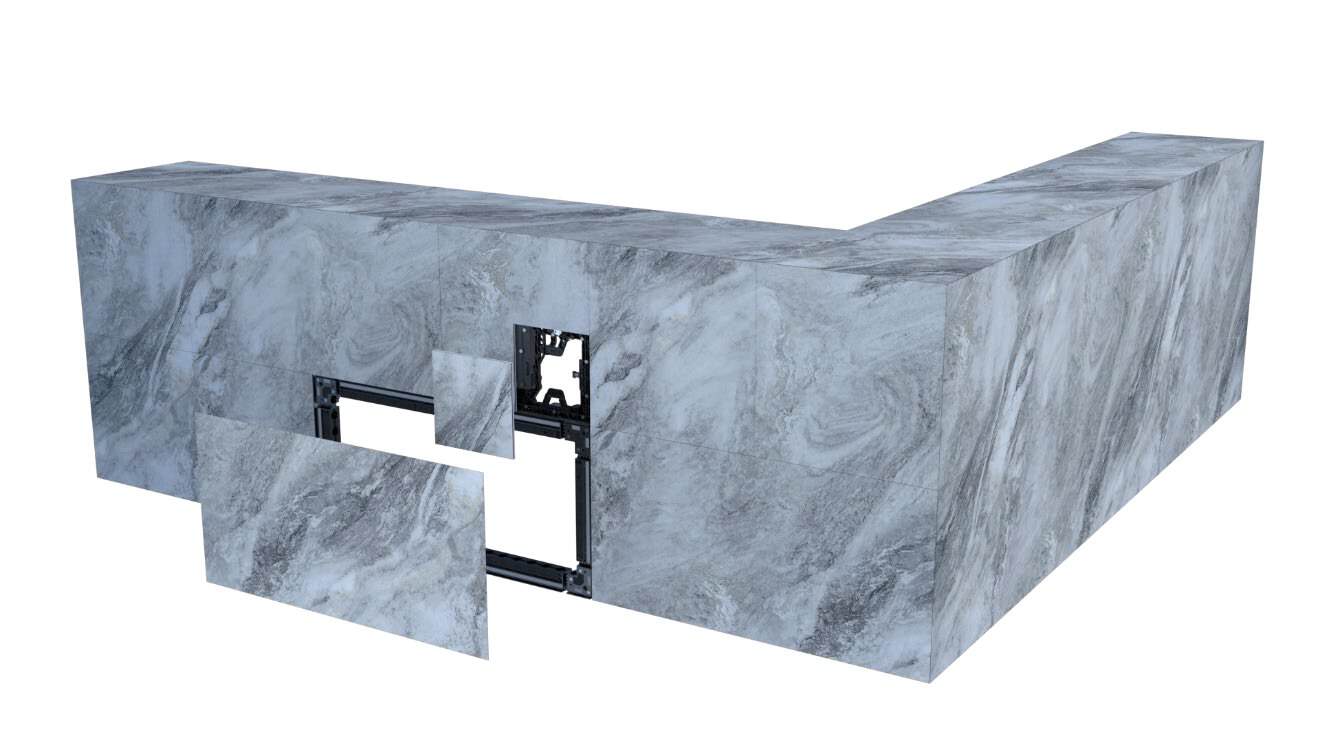

The result is a wall that does both jobs. The same bar counter below is shown switched on, with content running through a marble finish, and switched off with one finish panel lifted to show the LED module behind it.
Manufacturer’s render of the finish-panel system, not a Dynamo project.
Finishes: 61 catalogue finishes, mirror, or your own surface
The finish panels come in eight families: wood veneer (11 finishes), marble (11), concrete (9), metal (8), textile (6), gemstone (5), fabric (6) and pattern (5), plus a mirror finish in a choice of colours (black as standard) and a custom surface printed to your own artwork. Finishes can be mixed across one wall, and panels with and without LED behind them share the same finish. We supply physical samples before a specification is fixed: a printed finish is a reproduction of the material, not the material itself, and the on-screen swatches below will differ from the finished panel.

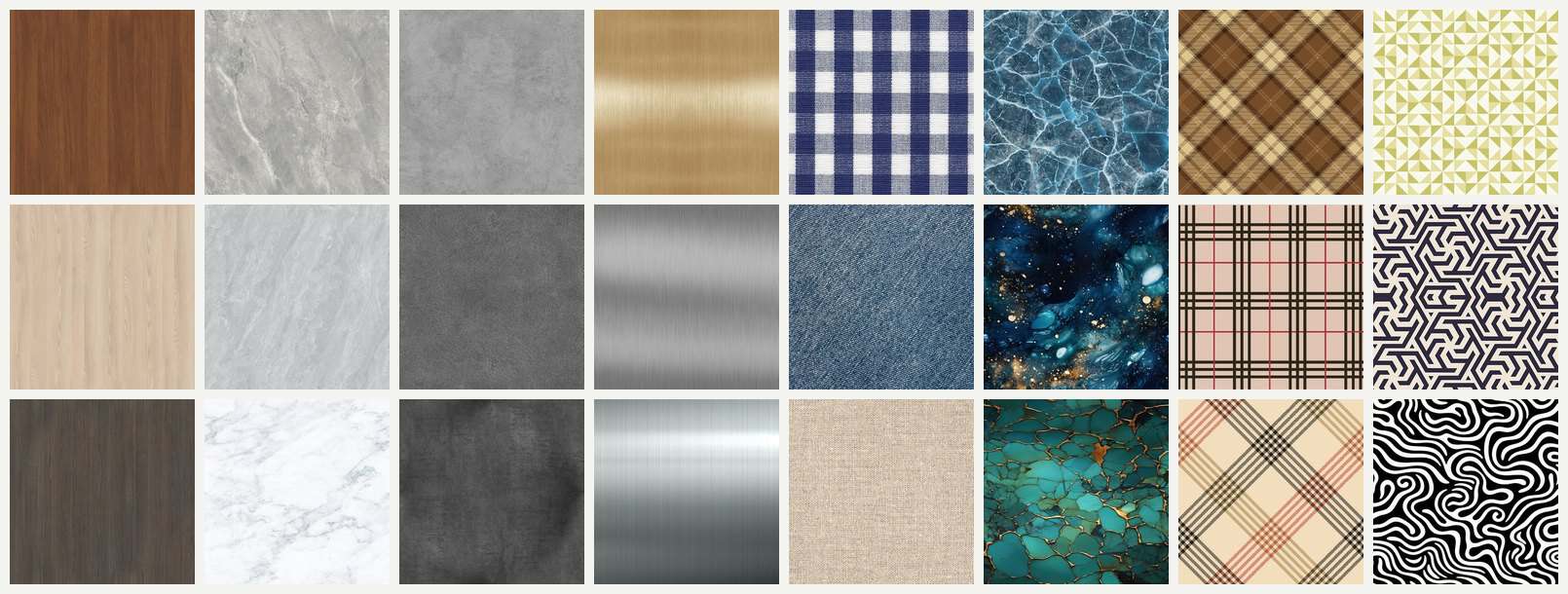

Three catalogue swatches from each of the eight finish families. Samples on request.
Manufacturer’s render of the finish-panel system, not a Dynamo project.
Panel sizes and how they tile
S · 250 × 250 mm
The standard finish panel, the same size as one LED module. Four cover a 500 × 500 mm cabinet, which is how mixed finishes and fine detail are set out across a wall.
M · 500 × 500 mm
One panel covers one cabinet, for fewer joints across a plain finish such as marble or concrete.
L · 500 × 1,000 mm
One panel covers two cabinets stacked or side by side, for long runs such as a bar front or a lift-lobby wall. Other sizes are made to order for a specific design, and the gemstone finishes G02, G04 and G05 are made in all three standard sizes.
The LED behind is always sized in whole 500 × 500 mm cabinets, so a screen is a multiple of 500 mm in each direction. Where the design needs the finish to carry on past the live area, plain backing panels in the same finish take it to the edge of the wall.
Pixel pitch: specified to the viewing distance
All six pitches share the same cabinet, so the pitch can be chosen late in the design. Choose 1.25 mm or 1.56 mm for a bar front or a desk read from arm’s length, 1.95 mm to 2.6 mm for a feature wall across a room, and 2.97 mm or 3.9 mm for a wall read from across a lobby or a gym floor. Our pixel pitch guide explains how viewing distance drives the choice. Module and cabinet pixels are derived from the pitch; brightness figures are for the LED cabinet before the finish layer and the running level is set to the room at commissioning.
| Pitch | Pixel pitch | Brightness (cd/m²) | Module pixels | Cabinet pixels | Pixels per m² | Best viewed |
|---|---|---|---|---|---|---|
| DSK P1.25 | 1.25 mm | >3,000 | 200 × 200 | 400 × 400 | 640,000 | from 1.25 m |
| DSK P1.56 | 1.56 mm | >3,500 | 160 × 160 | 320 × 320 | 409,600 | from 1.56 m |
| DSK P1.95 | 1.95 mm | >3,500 | 128 × 128 | 256 × 256 | 262,144 | from 1.95 m |
| DSK P2.6 | 2.6 mm | >3,500 | 96 × 96 | 192 × 192 | 147,456 | from 2.6 m |
| DSK P2.97 | 2.97 mm | >3,500 | 84 × 84 | 168 × 168 | 112,896 | from 2.97 m |
| DSK P3.9 | 3.9 mm | >5,000 | 64 × 64 | 128 × 128 | 65,536 | from 3.9 m |
Typical screen sizes
Starting points in whole cabinets; any other whole-cabinet size can be built and the finish can continue over plain panels beyond the live area. Resolutions are in pixels, derived from the cabinet grid.
| Screen (W × H) | Cabinets | Area | P1.25 | P1.56 | P1.95 | P2.6 | P2.97 | P3.9 |
|---|---|---|---|---|---|---|---|---|
| 2,000 × 1,000 mm | 4 × 2 = 8 | 2.0 m² | 1,600 × 800 | 1,280 × 640 | 1,024 × 512 | 768 × 384 | 672 × 336 | 512 × 256 |
| 3,000 × 1,500 mm | 6 × 3 = 18 | 4.5 m² | 2,400 × 1,200 | 1,920 × 960 | 1,536 × 768 | 1,152 × 576 | 1,008 × 504 | 768 × 384 |
| 4,000 × 2,000 mm | 8 × 4 = 32 | 8.0 m² | 3,200 × 1,600 | 2,560 × 1,280 | 2,048 × 1,024 | 1,536 × 768 | 1,344 × 672 | 1,024 × 512 |
| 6,000 × 1,500 mm | 12 × 3 = 36 | 9.0 m² | 4,800 × 1,200 | 3,840 × 960 | 3,072 × 768 | 2,304 × 576 | 2,016 × 504 | 1,536 × 384 |
| 1,000 × 2,500 mm | 2 × 5 = 10 | 2.5 m² | 800 × 2,000 | 640 × 1,600 | 512 × 1,280 | 384 × 960 | 336 × 840 | 256 × 640 |
Installation: wall profile, frame, hanging, stacking or LED floor
Wall profile
Aluminium profiles are fixed to the wall, the LED cabinets hang on them and lock with a screw, and the finish panels clip over the face. Light and quick, and the way an LED screen is hidden inside a patterned wall that already exists.
Frame connection
Cabinets, or a frame with cover plates, are built into a free-standing form such as a bar counter or an art wall, with the finish continuing over the plates so the whole piece reads as one surface. The catalogue bar counter is 6 m long, 1.5 m high and 1 m deep with the LED in its front face.
Hanging and stacking
The cabinet can also be hung or stacked, for a suspended feature or a floor-standing wall where the structure allows.
LED floor
With the LED floor cabinet the same finish system becomes a floor: a stone-finish floor that comes to life for an event or a brand moment. For a permanent interactive floor without a finish layer, see our LED screen floor.
Tray extension

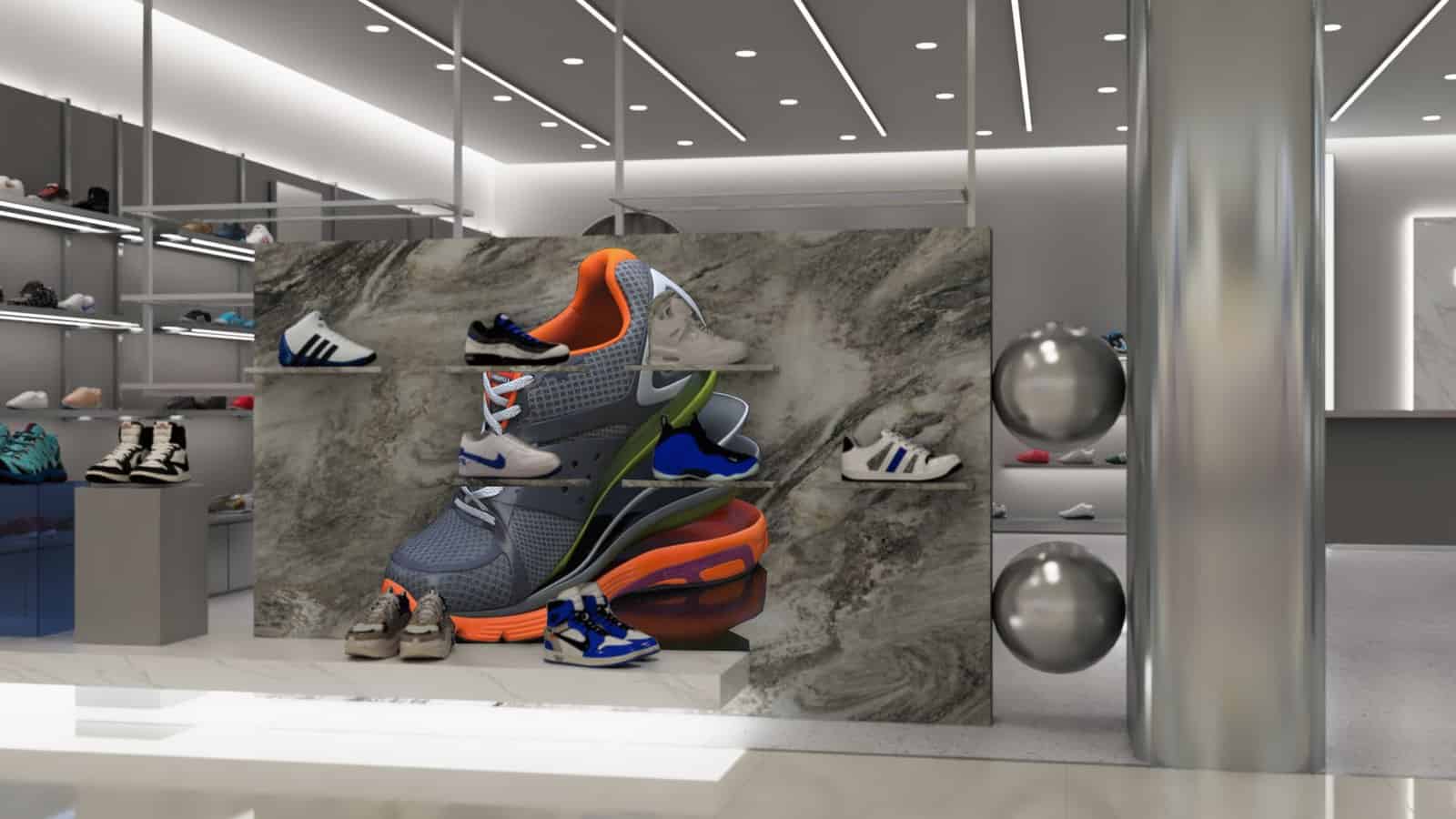

A shelf in the same finish fixes across the panel for a sample wall or a product display: shoes, bags, laptops or perfume, with the picture running behind them.
Manufacturer’s render of the finish-panel system, not a Dynamo project.
Front service

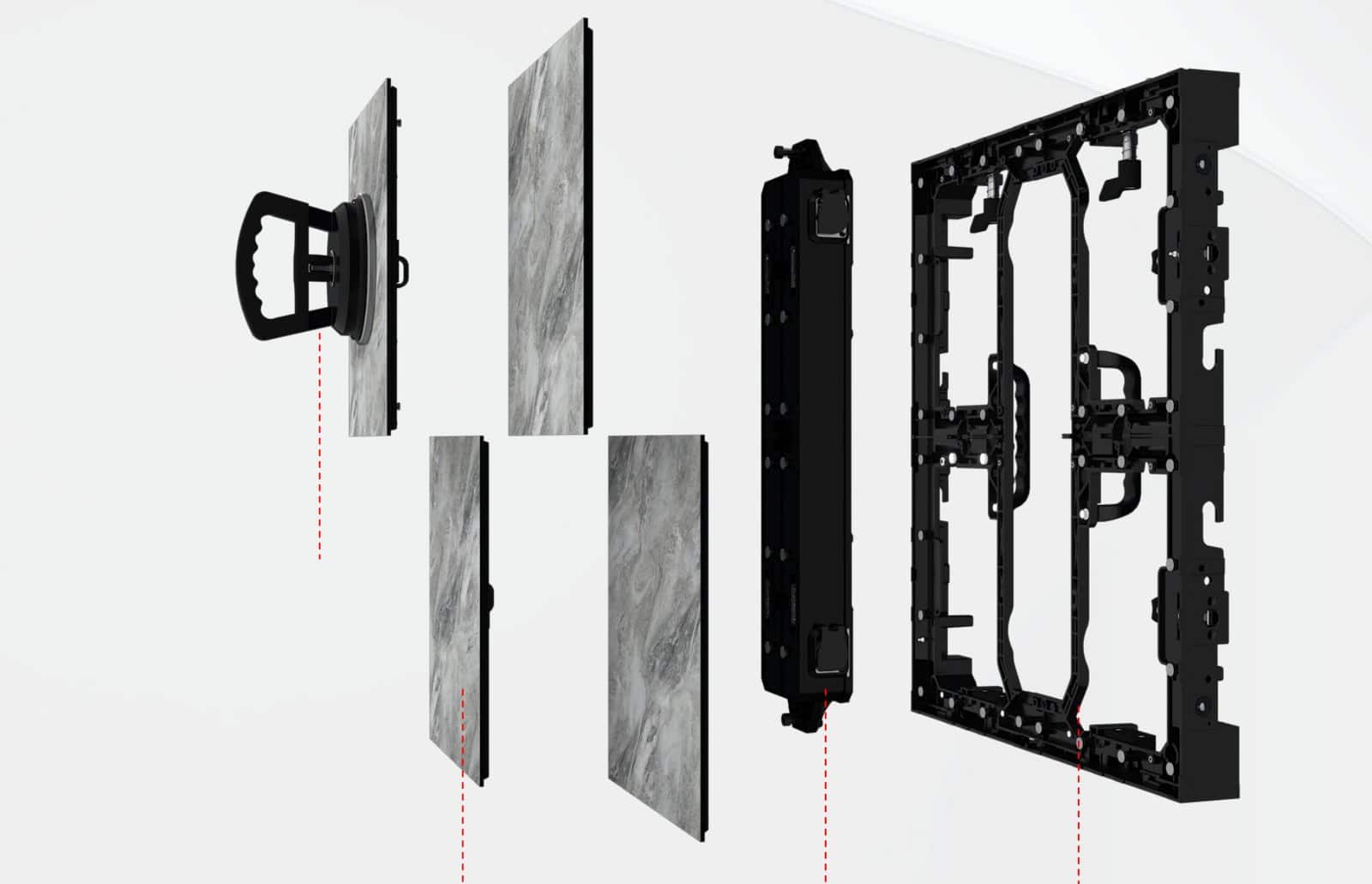

A suction cup lifts the finish panel and the LED module off the face of the cabinet. The control unit behind them, which holds the power supply, hub and receiving card in one piece, is released from the cabinet frame with a screwdriver and lifted out from the front. No access is needed behind the wall, so the screen can sit flush in a wall lining or inside a counter, and a fault is cleared by swapping the module or the unit and refitting the finish panel.
Manufacturer’s render of the finish-panel system, not a Dynamo project.
Specification
| Finish panel sizes | 250 × 250 mm (S), 500 × 500 mm (M), 500 × 1,000 mm (L); other sizes to order |
| Finish families | Veneer, marble, concrete, metal, textile, gemstone, fabric, pattern (61 catalogue finishes); mirror in a choice of colours; custom printed surface |
| LED module | 250 × 250 mm; four per cabinet |
| LED cabinet (W × H × D) | 500 × 500 × 55 mm, 9.2 kg per cabinet (DRX Series) |
| Pixel pitch | 1.25, 1.56, 1.95, 2.6, 2.97 or 3.9 mm |
| Brightness | Above 3,000 cd/m² at 1.25 mm, above 3,500 cd/m² from 1.56 to 2.97 mm, above 5,000 cd/m² at 3.9 mm (LED cabinet, before the finish layer) |
| Refresh rate | 1,920 to 3,840 Hz |
| Viewing angle | 160° horizontal, 160° vertical |
| Contrast | 6,000:1 |
| Ingress protection | LED cabinet IP65 front, IP54 rear; exterior use of the finish panels confirmed per project |
| Power supply | 100 to 240 V AC |
| Service | Front: finish panel and module lifted with a suction cup; control unit released from the front |
| Installation | Wall profile, frame connection, hanging, stacking, LED floor; tray extension |
| Control | Dynamo LED controller; HDMI input or scheduled playback through the Dynamo CMS |
| Warranty | 3-year return-to-base on the LED display |
Figures are from the product specification for the finish-panel system and its LED cabinet. Finish-panel weight and thickness, power consumption and operating temperature are confirmed on the quotation.
Where a hidden LED screen is used
- Hotel, bar and restaurant counters and back-bar walls: a marble or timber counter front that becomes the menu, the brand or the match. See our LED displays for hotels and hospitality.

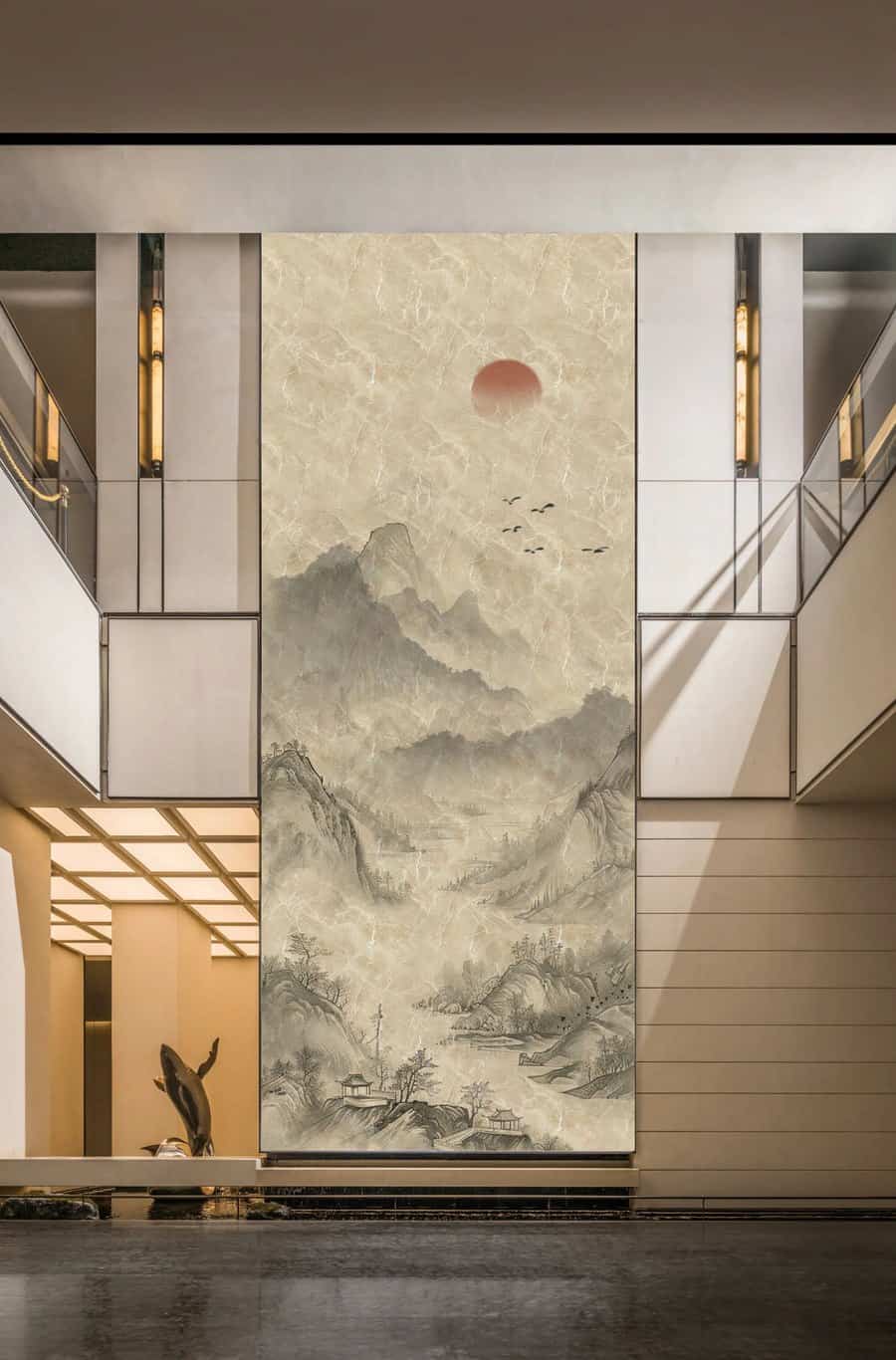

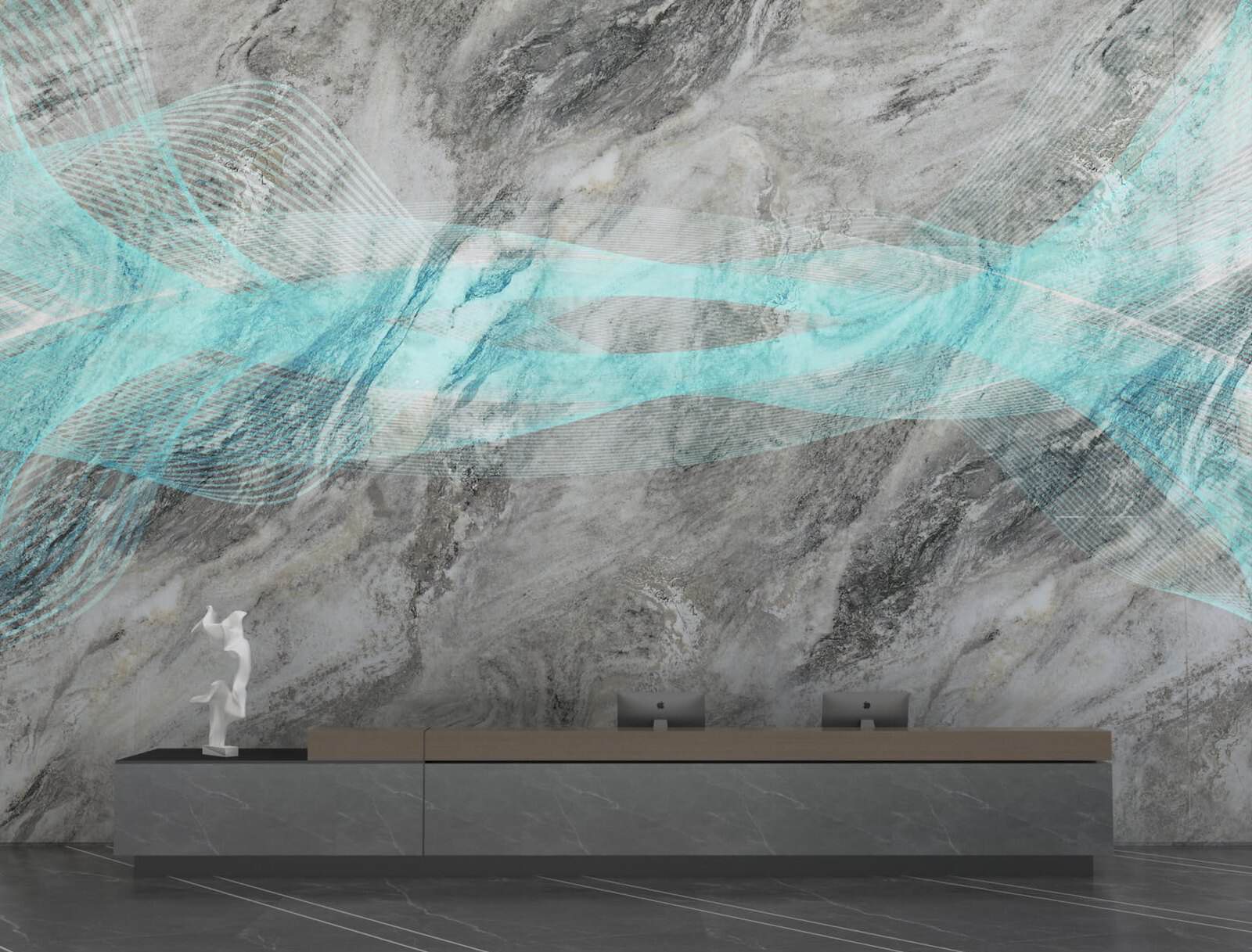

- Reception, lobby and lift-lobby feature walls: a stone wall by day, a LED video wall when the content runs.
- Luxury residential: living-room and cinema walls that must read as a wall when the screen is off; see bespoke LED displays for luxury residential.
- Retail display walls and sample walls, with the tray extension carrying product in front of the picture.

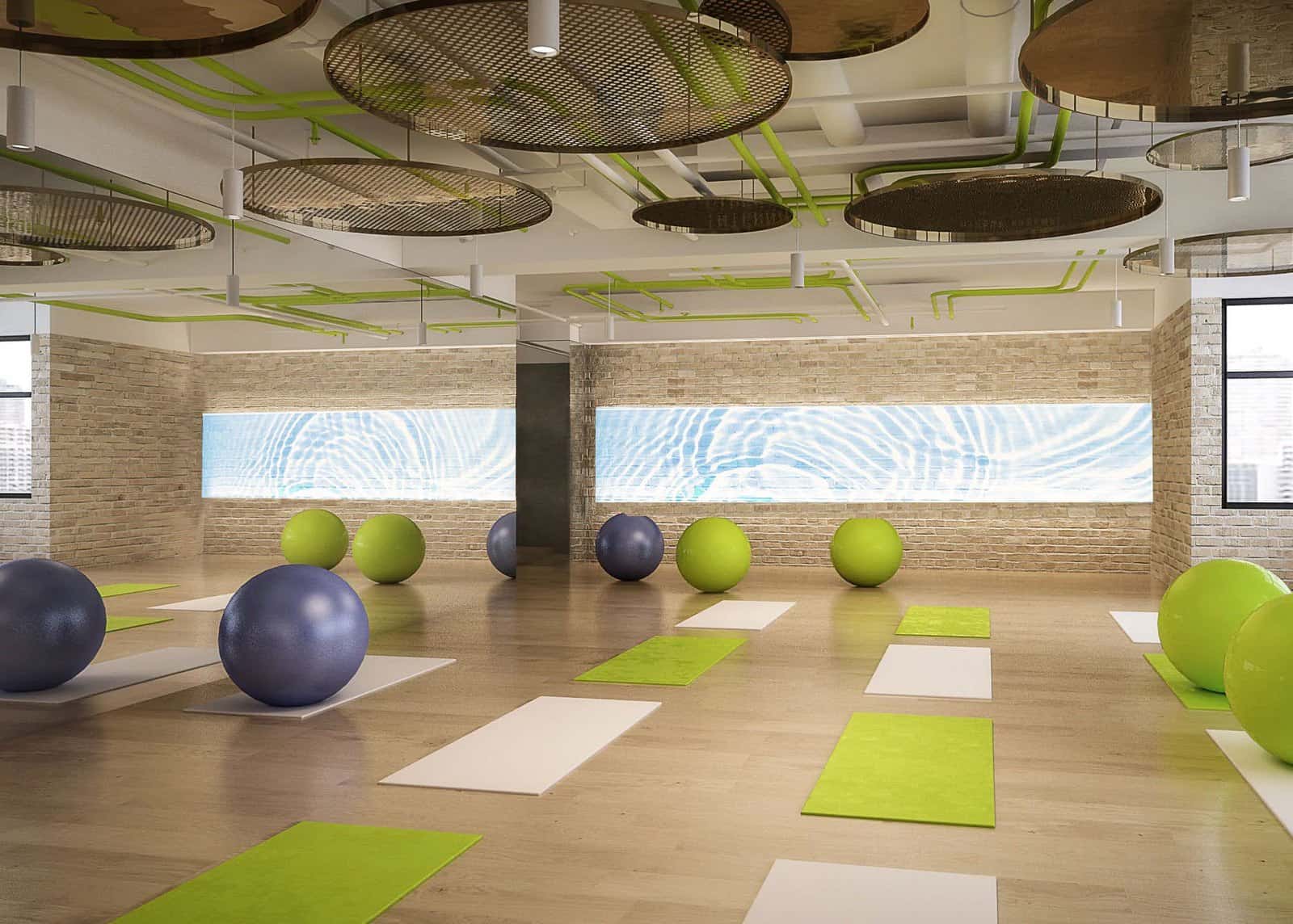

- Fitness studios, spas and members’ clubs: a class screen that disappears into a stone wall between sessions.
- Galleries, show spaces and marketing suites, in the class of installation we delivered for the Mount Anvil new-home show immersive LED room.
Manufacturer’s render of the finish-panel system, not a Dynamo project.
Dynamo CMS and warranty
Every DSK Series screen bought from Dynamo comes with the Dynamo CMS at no extra charge and with no annual licence: browser-based upload, scheduling, publishing and playback checks, with logins for your team, running through a cloud media player specified per installation. A live HDMI feed can also be taken through the Dynamo LED controller. The LED display is covered by a 3-year return-to-base warranty, and a spares allowance of modules and control units is included so a swap can be made on site. Browse the rest of the range on our LED display products and indoor LED displays pages.
Get a quote for a DSK Series hidden LED screen
Send us the wall, counter or floor, the finish you have in mind and the distance it is viewed from. We will come back with a whole-cabinet layout, the pitch and resolution, finish samples and a quotation.
Contact us or call +44 (0)203 489 9878.
DSK Series hidden LED screen: frequently asked questions
What does DSK stand for?
Dynamo Skin. It is the name of our hidden LED screen range: a fine-pitch LED cabinet with a decorative finish panel over its face, so the screen reads as marble, wood, concrete, metal or another surface when it is off.
What is a hidden LED screen?
A hidden LED screen is an LED display with an architectural finish on its face. Switched off, the surface reads as a solid wall, counter or floor in that finish. Switched on, the LED picture comes through the finish and the surface becomes a display. It is different from a transparent LED screen, which you see through, and from a mirror TV, which is a television behind glass.
Which finishes are available?
Sixty-one catalogue finishes across eight families: wood veneer, marble, concrete, metal, textile, gemstone, fabric and pattern, plus a mirror finish in a choice of colours and a custom surface printed to your own artwork. Finishes can be mixed across one wall, and the same finish continues over plain panels around the live area so the whole surface reads as one.
Can the finish match an existing wall?
Often, yes. The custom-pattern option prints the panel to your artwork, so a stone, timber or brick finish can be matched to the surrounding wall. We recommend physical samples before the specification is fixed, because a printed finish is a reproduction of the material rather than the material itself.
What sizes do the finish panels come in, and how do they tile?
Three standard sizes: 250 x 250 mm, 500 x 500 mm and 500 x 1,000 mm, with other sizes to order. The LED cabinet behind is 500 x 500 mm, so four 250 mm panels or one 500 mm panel cover a cabinet, and a 500 x 1,000 mm panel covers two. A screen is a whole number of cabinets in each direction; the finish can carry on past the live area over plain backing panels.
Which pixel pitch should I choose?
It depends on the closest viewing distance. 1.25 mm or 1.56 mm for a bar front or a desk read from arm's length, 1.95 mm to 2.6 mm for a feature wall across a room, 2.97 mm or 3.9 mm for a wall read from across a lobby or a gym floor. The LED cabinet is Dynamo's DRX Series and all six pitches share the same 500 x 500 mm cabinet, so the pitch can be chosen late in the design.
How is it installed?
Most walls use the wall-profile method: aluminium profiles are fixed to the wall, the LED cabinets hang on them and lock with a screw, and the finish panels clip over the face. The cabinets can also be built into a frame for a bar counter or a free-standing art wall, hung, stacked, or laid as an LED floor with the floor cabinet. We survey, install and commission nationwide, or supply to your fit-out contractor with layout drawings.
How is it serviced?
From the front. A suction cup lifts the finish panel and the LED module off the face of the cabinet, and the control unit behind them, which holds the power supply, hub and receiving card, is released from the cabinet frame with a screwdriver. No access is needed behind the wall, which is why the screen can sit flush in a wall lining or inside a counter.
Can a hidden LED screen be used outdoors?
The catalogue shows interior installations and the LED cabinet behind the finish carries its own ingress-protection rating. Whether the finish panels themselves suit an exterior wall is confirmed per project with the manufacturer, so tell us where the screen is going and we will confirm the build before quoting.
Is the Dynamo CMS included?
Yes, for every LED display bought from Dynamo. There is no separate CMS licence fee: you get an account with browser-based upload, scheduling, publishing and playback checks, with logins for your team. The cloud media player it runs through is specified per installation and shown on your quotation. The LED display carries a 3-year return-to-base warranty.
