LED screens for churches are direct-view LED video walls that stay bright and legible in a daylit nave where a projector washes out. Dynamo supplies indoor panels from 1.29mm to 3.9mm pixel pitch rated 800 nits or more, fitted into the wall, hung or free-standing, and they show lyrics, sermon notes, live camera feeds and video from one input.
Updated September 2026. First published October 2022.
Churches were early adopters of projection, and most have lived with its limits: a screen that fades whenever the sun comes through the windows, a throw distance that dictates where the projector can go, and lamps that dim year by year. An LED wall solves all three. This guide covers what churches put on their screens, how to size a church LED wall, the ways it can be mounted in an older building, whether to buy or hire, and how a volunteer team runs it on a Sunday.
The film above and the photograph at the top of this page are from a church Dynamo fitted. The LED screen sits in a recess above the sanctuary, framed by the existing white and gold joinery, so it reads as part of the building rather than a box bolted to the wall.
Church LED screens at a glance
| Series | Pixel pitch | Brightness | Cabinet | Suited to |
|---|---|---|---|---|
| DX Series | 1.9mm to 3.9mm | 800 nits or more | 500 × 500mm and other sizes, 47mm deep, front serviceable | Permanent church LED wall on a budget |
| DRA Series | 1.29mm to 2.58mm | Over 800 nits | 496 × 496mm, 7.5 kg, X-GOB protected front | Premium fixed install with close front pews |
| DRE Series | 1.55mm to 2.58mm indoor | Over 800 nits | 496 × 496mm, 9.2 kg, stacks or hangs | Hire for Christmas, Easter and conferences |
Figures are from the Dynamo datasheets for each series. Outdoor DRE panels at over 3,500 nits cover courtyard and festival use.
Why churches are replacing projectors with LED screens
Brightness in a daylit building

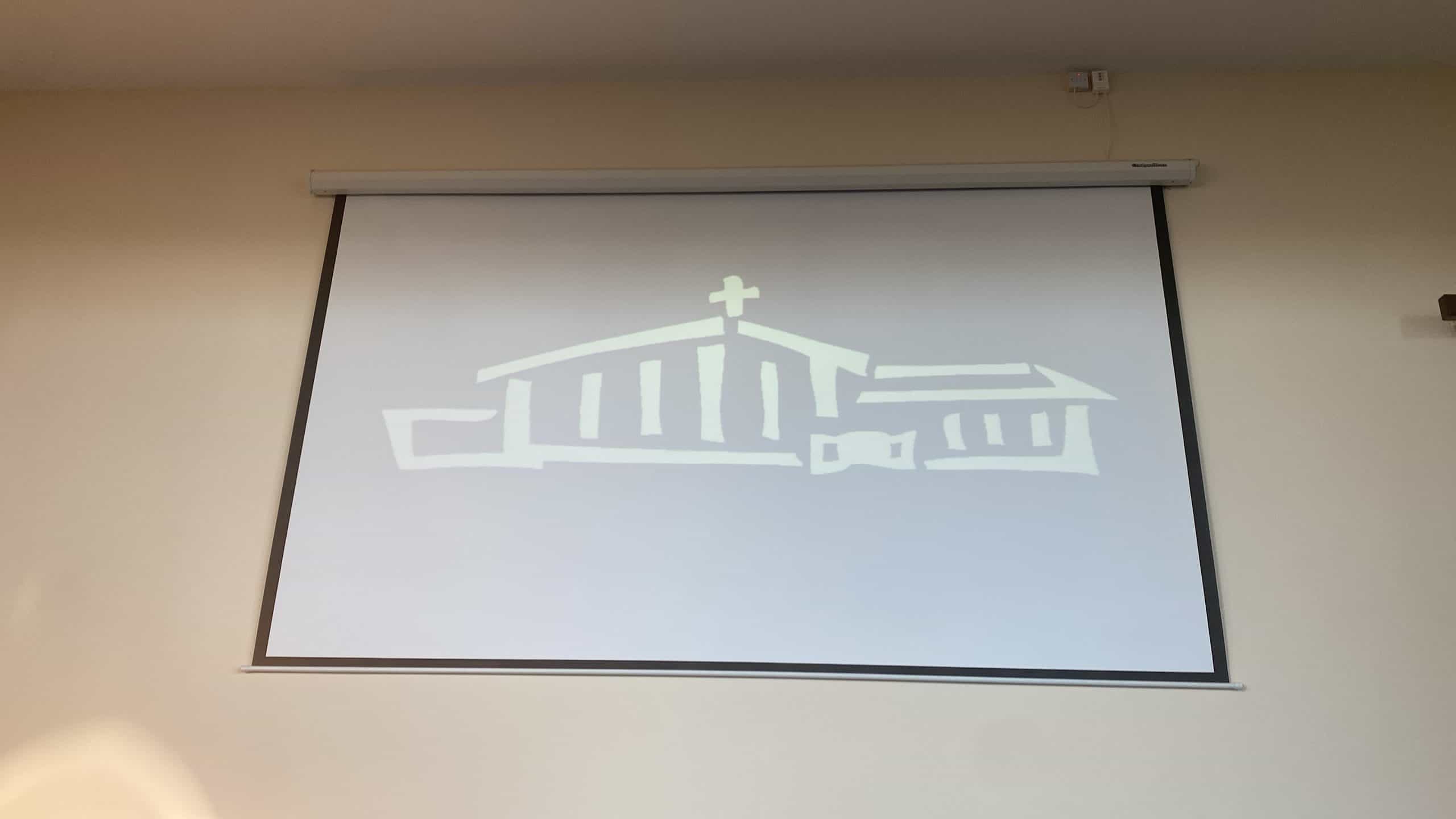

A projector puts light onto a white surface, so any daylight landing on that surface competes directly with the image. Stained glass, clerestory windows and morning services all work against it. A direct-view LED panel emits its own light at 800 nits or more, which a video projector on a large white screen cannot match once daylight lands on it, so lyrics stay readable without drawing blinds.
Size without a throw distance
Projectors need a clear line from lens to screen and a long enough throw to fill it, which in a nave usually means a ceiling mount above the congregation or a lens at the back of the building. LED cabinets tile together to any width and height, so a screen can be as wide as the chancel arch allows and sit exactly where the eye already goes.
Reliability and running cost
LED panels have no lamp to replace and no filter to clean. Front-serviceable cabinets such as the DX Series let a module be swapped from the front, which matters when the screen is recessed into a wall or sits high above the sanctuary. Our LED display maintenance guide covers the routine.
What churches show on an LED wall
The same screen carries the whole service. Typical content includes:
- Song lyrics, liturgy and responses, large enough for the back row.
- Sermon notes, scripture references and chords for the worship band.
- A live camera feed of the speaker so faces are visible from the rear of a deep nave, and the same feed for the livestream.
- Pre-recorded video, testimonies and mission updates.
- Notices and service times before and after the service, so transitions between readings and songs run without an announcement.
- Seasonal pieces such as an Advent calendar with 24 animations, one revealed each day.
How to size an LED screen for a church
Pixel pitch and the front pew
Pixel pitch is the spacing between LEDs in millimetres, and the closest viewer sets it. As a rule of thumb the minimum comfortable viewing distance in metres is about the same number as the pitch in millimetres, so a 2.58mm panel is comfortable from around 2.6 metres and a 1.29mm panel from 1.3 metres. Front pews four or five metres from the screen suit 2.5mm to 3.9mm; a screen right behind the lectern needs finer. Our viewing distance guide works through the arithmetic.
Screen size and resolution
Resolution comes from the modules, not the pitch alone. A DX2.5 module is 250 × 250mm at 100 × 100 pixels, so a 4m wide by 2.25m high wall is 16 modules across by 9 modules high, giving 1600 × 900 pixels: a 16:9 canvas that takes a standard laptop or presentation output without scaling artefacts. Size the wall to the widest text you will show, not to the video, because lyrics at the back of a 30-metre nave need a taller letter height than a film does.
Mounting options in a church building
Wall-mounted or recessed
The permanent option. Cabinets fix to a steel frame on the wall or, as in the church shown above, into a recess so the screen finishes flush with the surround and the existing joinery frames it. A DX cabinet is 47mm deep and a DRA cabinet 55 to 62mm, so the recess can be shallow.
Hung from a truss or beam
DRA and DRE cabinets are rated for hanging as well as stacking, so a screen can fly from a truss or a structurally checked beam where the wall is not suitable, which keeps the fabric of a listed building untouched. Rigging in a church needs a structural check and safe access; our installation safety guide sets out the standards we work to.
Free-standing or ground-stacked
For halls and multi-use spaces, panels ground-stack on a base or mount on a mobile stand and wheel away after the service. This is the usual approach for hire and for churches that share their building with a school or community groups during the week.
If the church is listed, fixing to historic fabric may need consent under the Planning (Listed Buildings and Conservation Areas) Act 1990 or, for Church of England buildings, a faculty. Check before anyone drills, and favour hung or free-standing options where the answer is slow.
Buying vs hiring an LED screen for a church
Buy when the screen is used every week: a permanent DX or DRA wall pays back against projector lamps, blinds and the volunteer time spent fighting daylight. Browse the LED display products range or the LED video walls page for the fixed-install options.
Hire when the need is a season or an event: a carol service, Easter, a conference or a wedding. Dynamo’s LED screen hire service delivers DRE panels, builds the screen, runs the content and de-rigs afterwards, which is also a low-risk way to test a permanent position before committing.
Running the screen on a Sunday
A church LED wall is simpler to operate than it looks. The panels connect to a NovaStar processor, the processor takes one HDMI input from the laptop that already runs the presentation software, and whatever is on the laptop appears on the wall. Volunteers change slides exactly as they did with the projector. Scheduled notices and playlists can also run from a cloud content system without anyone at the desk; see our NovaStar processor guide and the content management options.
LED screens for churches: frequently asked questions
Is an LED wall better than a projector for a church?
For a daylit church, yes. A projector relies on a white screen that daylight washes out, whereas a direct-view LED panel emits 800 nits or more and stays legible with the blinds open. LED also has no lamp to replace, tiles to any size and needs no throw distance. A projector still makes sense in a blacked-out hall on a small budget.
What size LED screen does a church need?
Size it to the text, not the video. Lyrics must be readable from the back pew, so a longer nave needs a taller screen. A common permanent format is a 16:9 wall around 4m by 2.25m, which on 2.5mm DX modules gives 1600 × 900 pixels. Measure the distance from the screen to the front and back pews and we will size it from there.
What pixel pitch should a church LED screen have?
Let the closest viewer decide. The comfortable viewing distance in metres is roughly the pitch in millimetres, so pews four to five metres away suit 2.5mm to 3.9mm panels, while a screen directly behind the lectern with people close to it wants 1.29mm to 1.9mm. Finer pitch costs more per square metre, so do not buy finer than the front row needs.
How much does an LED screen for a church cost?
The cost depends on the screen area, the pixel pitch, the mounting method and whether the church buys or hires. Area and pitch drive most of it: a larger wall at a coarser pitch can cost less than a small wall at a fine pitch. Send us the wall dimensions and the distance to the front pew and we will return a written quote for the options.
Can a church hire an LED screen for Christmas or an event?
Yes. Dynamo hires DRE Series panels for carol services, Easter, conferences and weddings, delivered, built, operated and de-rigged by our crew. The panels ground-stack or hang, so nothing is fixed to the building. Hire is also a sensible way to trial a screen position for a season before committing to a permanent installation.
Can our volunteers run an LED screen?
Yes. The wall takes a single HDMI input from the laptop that already runs the presentation software, so the volunteer on the desk changes slides exactly as before. The NovaStar processor holds the brightness and colour settings. Notices and playlists can be scheduled through a cloud content system, so the screen also runs on its own between services.
Get a quote for a church LED screen
Send us the wall or recess dimensions, the distance to the front and back pews and a photo of the space, and we will come back with a pixel pitch, a screen size and a written quote for buying or hiring. Get a quote or call 020 3489 9878.
