Dynamo LED Plinth with Glass Enclosure at a glance: a free-standing LED plinth with a video face on each of its four sides, 320 × 960 mm per face, and a clear glass enclosure on top for a real product. Shoppers see the item from every angle and the screens beneath it carry the campaign. Five pixel pitches from 1.25 mm to 2.5 mm, 800 to 1,200 cd/m² adjustable brightness, optional wheels, cylindrical and custom-size versions to order. Indoor use. Price on application: contact us with the pitch and the number of units, or call +44 (0)203 489 9878.
Brochure: Download the Dynamo LED Plinth with Glass Enclosure brochure (PDF, 0.8 MB). Five spreads cover the plinth, the glass enclosure, content and where it is used, custom shapes, and the specification for all five pitches.
What is an LED plinth with glass enclosure?
An LED plinth is a square column with an LED screen on every side, a 4-sided LED display, so there is no back to it: whichever way a shopper approaches, they see moving content. The Dynamo LED Plinth with Glass Enclosure adds a clear glass enclosure on top of the plinth. The product in the enclosure is the point of the display; the four LED faces beneath it show the campaign, the colourway, the price or the story behind it. The plinth is 320 × 320 mm in plan, each LED face is 320 mm wide and 960 mm high, and the four faces together give 1,280 × 960 mm of LED. It stands on its own base and is moved on optional wheels, so it goes where the footfall is rather than where the wall is.

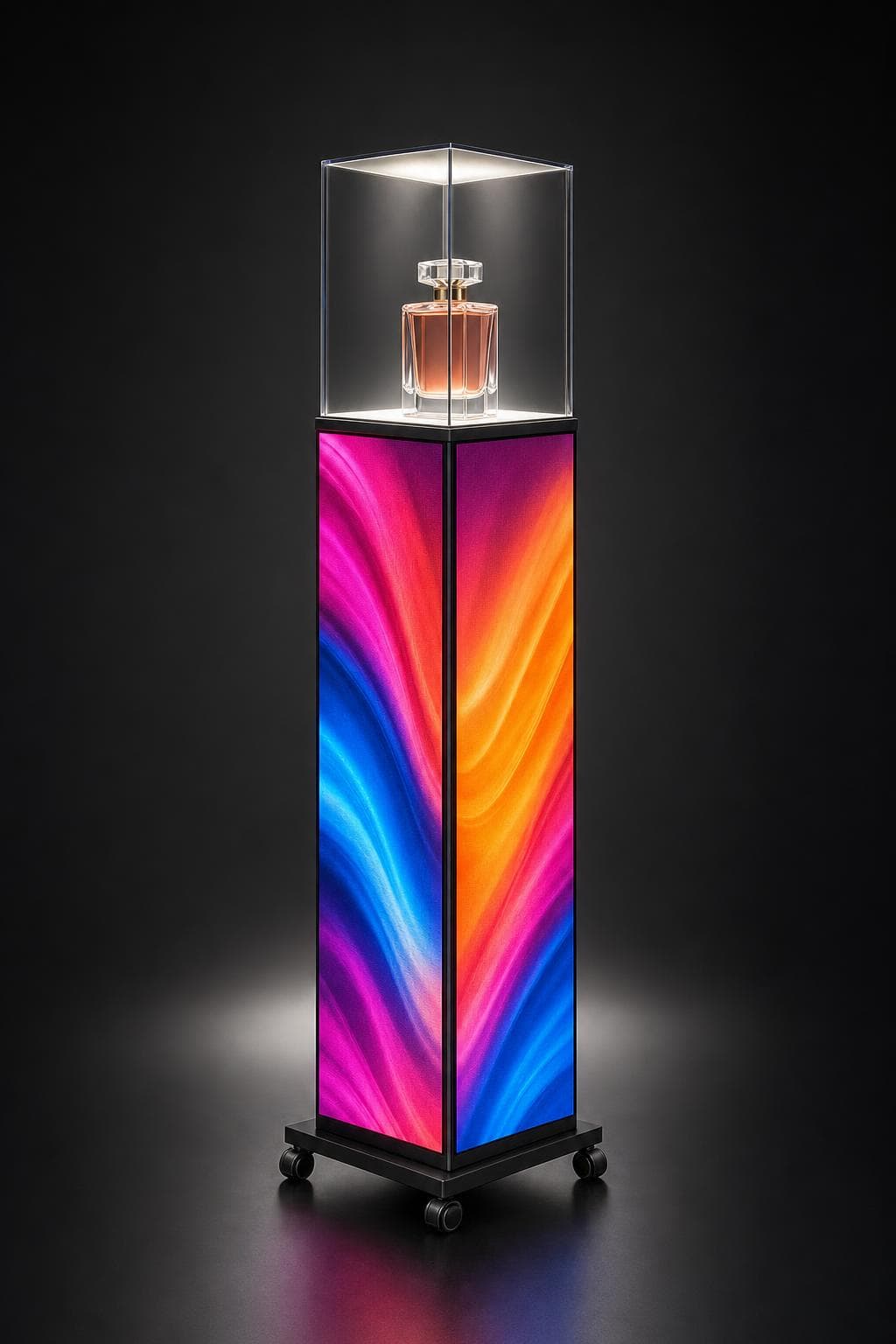

Illustrative render of the product, not a Dynamo project.
How the Dynamo LED Plinth with Glass Enclosure is built
Four indoor fine-pitch LED panels are set into a square plinth with the LED at the surface, meeting at the corners so the picture carries round. The glass enclosure sits on top: a transparent case, so the product inside is seen from every side. The plinth is modular, which keeps installation and maintenance simple, and it is delivered plug and play: wheel it into position, connect the mains and it starts.
Brightness is adjustable between 800 and 1,200 cd/m², enough to hold its own under mall lighting without glaring in a boutique; viewing angle is 160° horizontally and vertically, so the picture holds as the shopper walks round; refresh is 3,840 Hz or higher. Mains supply is 100 to 240 V AC, 50/60 Hz.

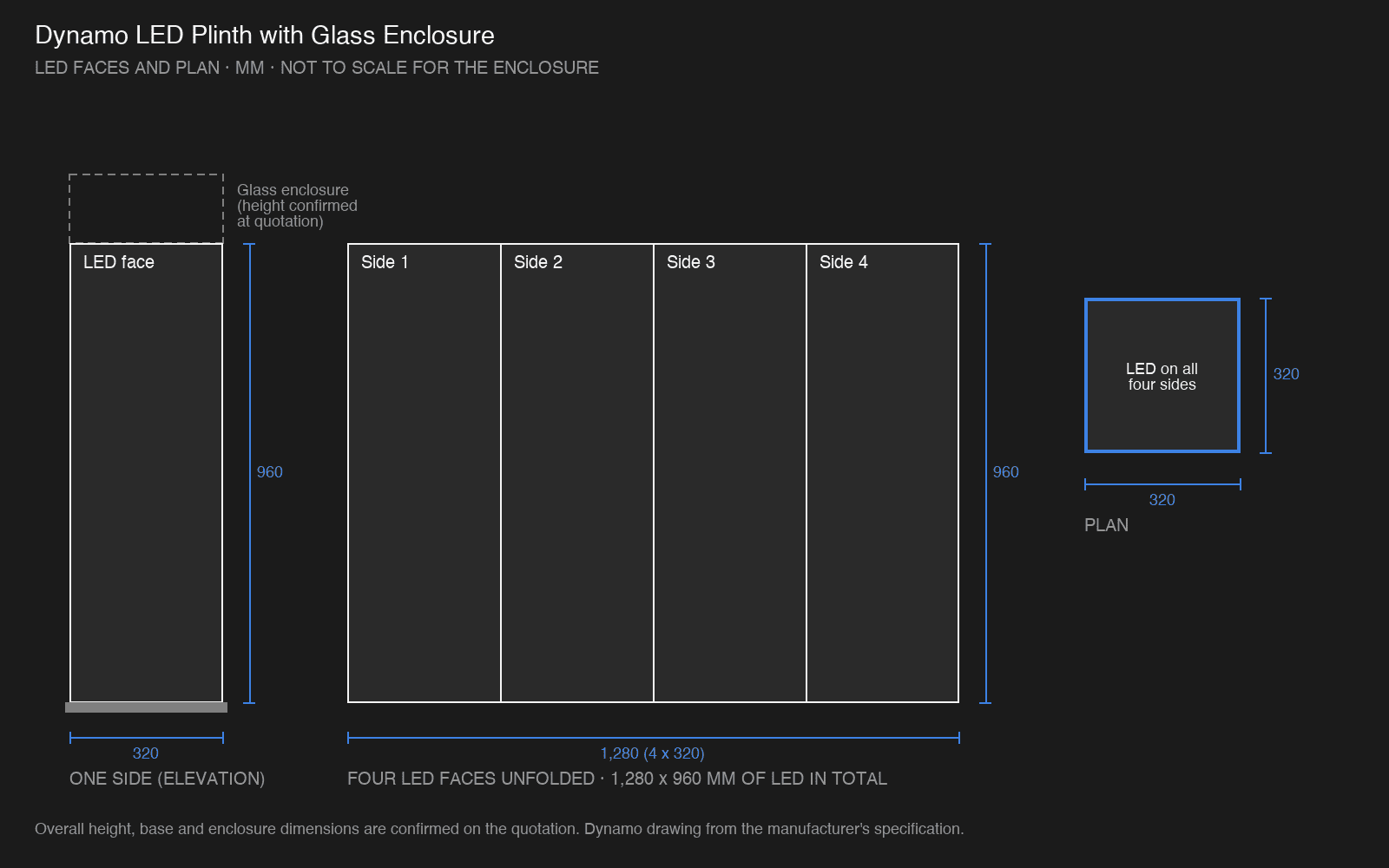

Each LED face of the plinth is 320 mm wide and 960 mm high; the four faces total 1,280 x 960 mm around a 320 x 320 mm plan. Enclosure height and overall height are confirmed at quotation. Dynamo drawing.
Which pixel pitch: the five options compared
The plinth comes at 1.25 mm, 1.53 mm, 1.86 mm, 2 mm and 2.5 mm. The pitch sets the resolution and how close a shopper can stand before the pixels show; it does not change the plinth size. For a unit people walk right up to in a store or on a stand, the finer pitches are the usual choice; for a mall concourse or a stage edge the coarser pitches do the job at a lower cost. Our pixel pitch guide explains how viewing distance drives the choice.
| Model | Pixel pitch | Resolution across four sides | Resolution per side |
|---|---|---|---|
| P1.25 | 1.25 mm | 1,024 × 768 px | 256 × 768 px |
| P1.53 | 1.53 mm | 832 × 640 px | 208 × 640 px |
| P1.86 | 1.86 mm | 688 × 516 px | 172 × 516 px |
| P2 | 2 mm | 640 × 480 px | 160 × 480 px |
| P2.5 | 2.5 mm | 512 × 384 px | 128 × 384 px |
Four-side resolution is the manufacturer’s figure for the 1,280 × 960 mm of LED; per-side resolution is one quarter of the width. Exact pixel counts are confirmed on the quotation.
The glass enclosure: a real product, screens all round
A screen on its own competes with every other screen in the mall. A product on its own is a mannequin or a shelf. Put the two together and the shopper gets the thing itself, visible from every side, with the film, the colourways and the offer wrapped round it. That is what the enclosure is for: a new trainer at a launch, a fragrance at the counter, a handset at a brand store, a watch at an exhibition stand, a limited edition at a concert merchandise stand. Content is changed as often as the product is, and the same plinth works for the next launch.

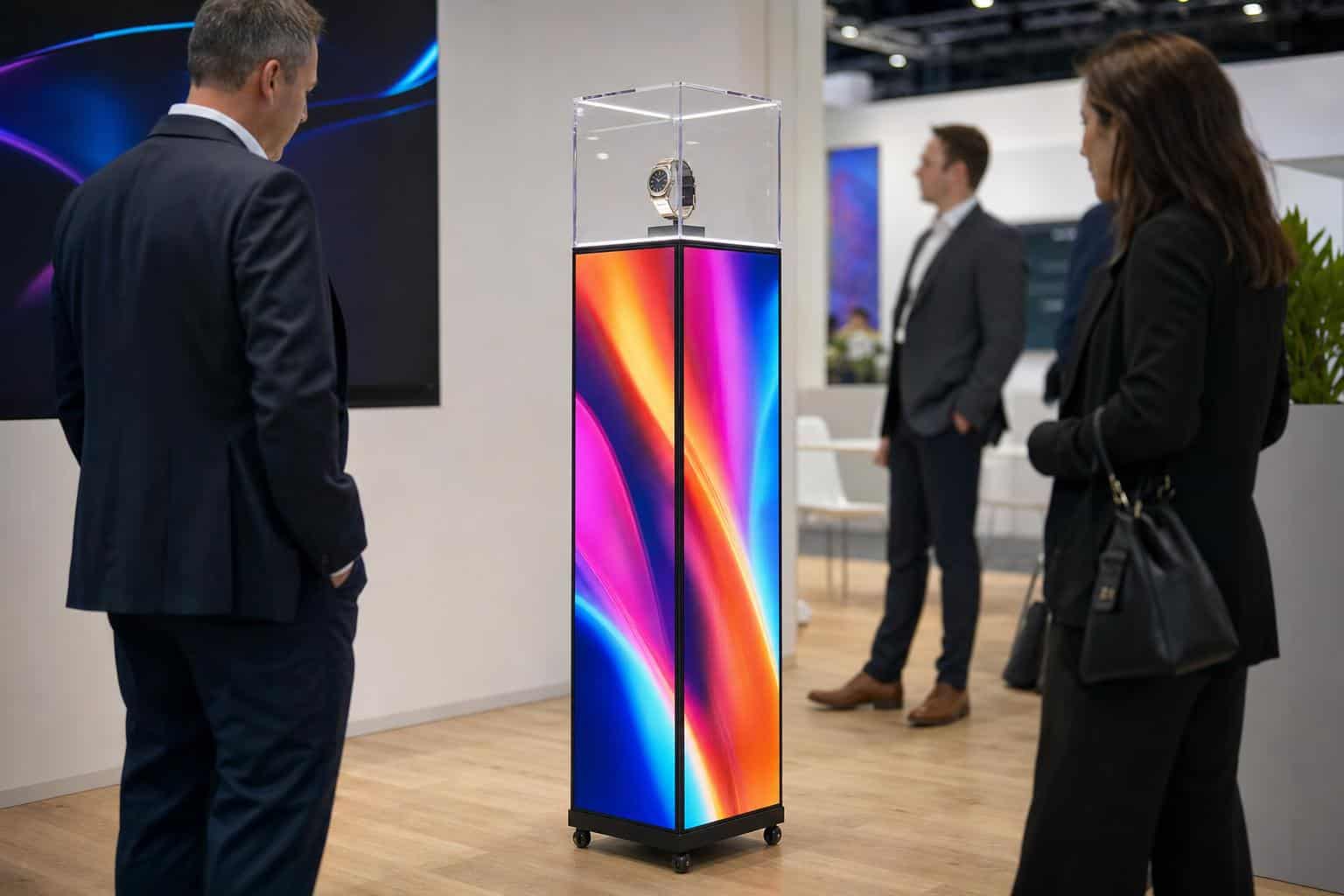

Illustrative render of the product, not a Dynamo project.
Content is delivered plug and play. Tell us at enquiry whether you want the plinth to loop a stored playlist on its own or to follow a live source, and whether several units need to be updated from one place, and we will specify the player with the quotation. Dynamo’s own LED display CMS is included with every screen we sell.
Specification: Dynamo LED Plinth with Glass Enclosure
| Pixel pitch | 1.25 mm, 1.53 mm, 1.86 mm, 2 mm and 2.5 mm (indoor) |
| LED face, per side | 320 mm wide × 960 mm high |
| LED area, four sides | 1,280 × 960 mm (four faces of 320 × 960 mm) |
| Plan | 320 × 320 mm (LED plinth) |
| Resolution | P1.25: 1,024 × 768 px / P1.53: 832 × 640 px / P1.86: 688 × 516 px / P2: 640 × 480 px / P2.5: 512 × 384 px across four sides |
| Glass enclosure | Clear glass product enclosure on top of the LED plinth; size confirmed at quotation |
| Brightness | 800 to 1,200 cd/m², adjustable |
| Refresh rate | 3,840 Hz and above |
| Viewing angle | 160° horizontal, 160° vertical |
| Power supply | 100 to 240 V AC, 50/60 Hz |
| Construction | Modular panels for installation and maintenance; plug and play |
| Base | Free-standing; wheels optional (moved between locations, or fixed in place) |
| Custom options | Cylindrical and round designs, custom sizes, panel options, brand logo and graphics on the plinth |
| Use | Indoor |
| Warranty | 3-year return-to-base |
Figures are from the manufacturer’s product specification. Overall height, weight, power consumption and enclosure dimensions are confirmed on the quotation. Specifications may change without notice.
Custom shapes and sizes
The four-sided 320 × 960 mm plinth is the standard unit. To order, the same idea is built as a cylinder or a round column, at a custom size, with different panel options, and with your logo or graphics on the plinth itself. A cluster of three or four plinths at different heights, a wider unit for a larger product, or a plinth that matches a store’s fixture system are all quoted individually. See our custom LED displays page for the kind of work we do to order.

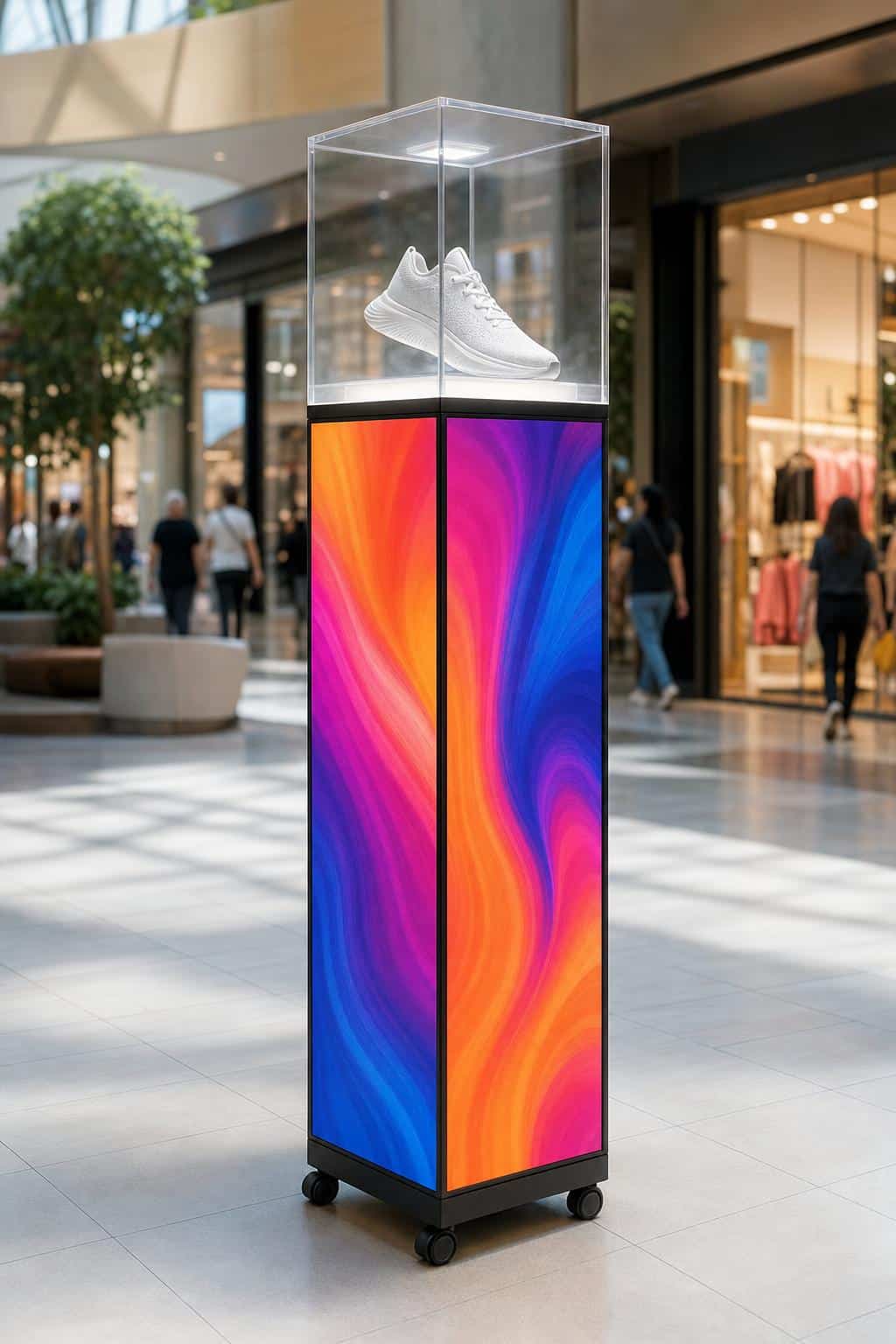

Illustrative render of the product, not a Dynamo project.
Where an LED plinth with glass enclosure is used
- Shopping malls: a concourse unit that is seen from every direction of foot traffic, moved to the atrium for a launch and back to the store front afterwards.
- Retail and brand stores: the hero product at the entrance or the counter, with the film and the colourways around it. For the window itself see our shopfront LED displays and our note on shopfront versus window LED strategy.
- Exhibitions and trade shows: a stand centrepiece that visitors walk round; see the exhibition LED screen case study for how we build stand screens. It pairs with our foldable LED posters for the stand walls.
- Events and concerts: product launches, merchandise stands and sponsor activations, where it works alongside LED screen hire stock.
- Speciality stores: watches, fragrance, footwear, phones, collectibles: anything sold on the strength of the object itself.

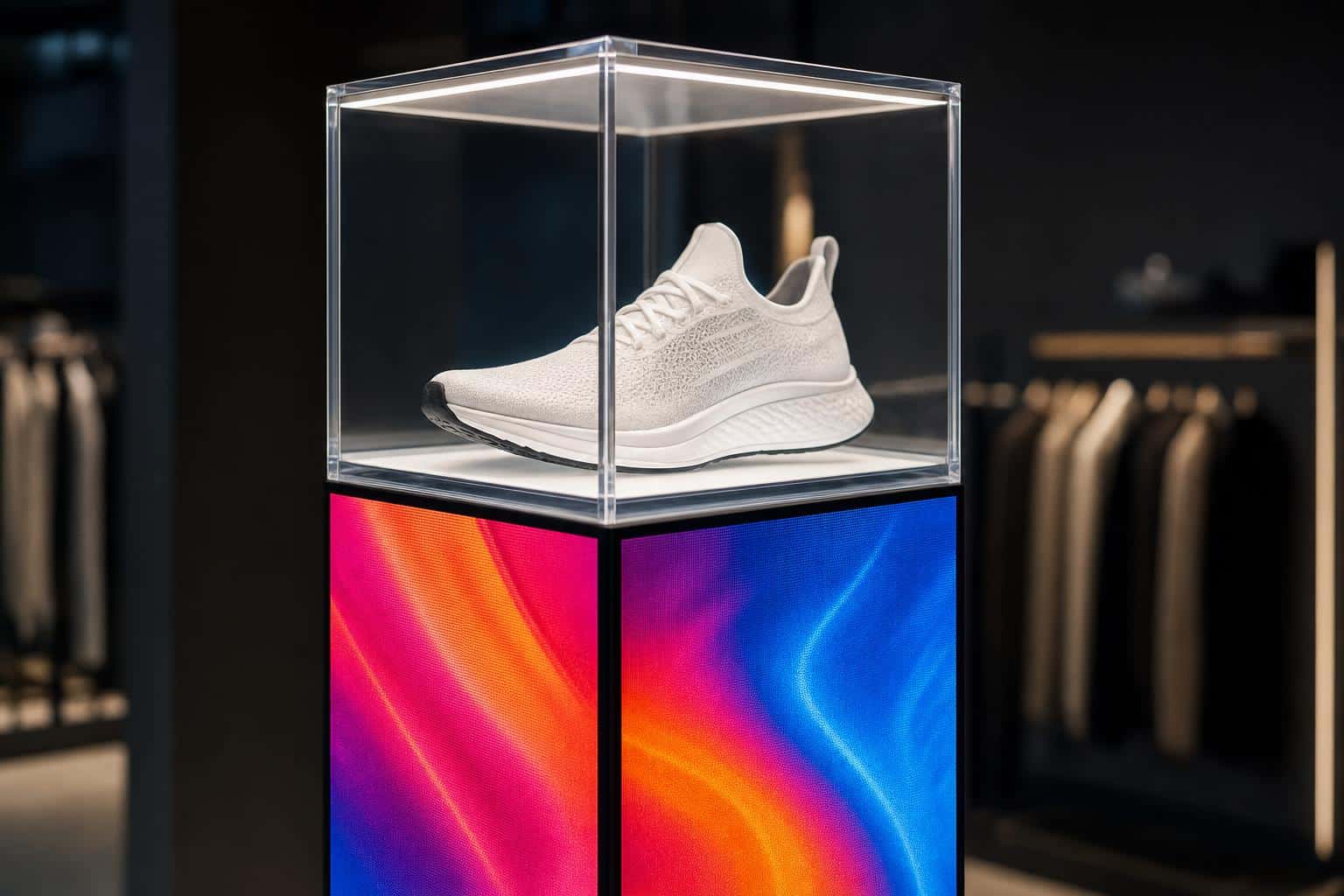

Illustrative render of the product, not a Dynamo project.
Price, ordering and warranty
Price on application. The quotation covers the plinth with its glass enclosure, the chosen pixel pitch, wheels if wanted, and the control hardware for your content; custom shapes are quoted individually. Every Dynamo LED display carries a 3-year return-to-base warranty. Browse the rest of the range on our LED display products and indoor LED displays pages.
Get a price for the Dynamo LED Plinth with Glass Enclosure
Tell us where it will stand, what goes in the enclosure, how close people will be and how many units you need. We will confirm the pixel pitch and the options and send a quotation.
Contact us or call +44 (0)203 489 9878.
Dynamo LED Plinth with Glass Enclosure: frequently asked questions
What is an LED plinth with glass enclosure?
A free-standing plinth with an LED video face on each of its four sides, so the content is seen from every direction, and a clear glass enclosure on top for a real product. Each LED face is 320 x 960 mm, which makes the plinth 320 x 320 mm in plan and gives 1,280 x 960 mm of LED across the four sides. It is a single piece of retail furniture: the item sits in the enclosure and the screens beneath it carry the story.
Which pixel pitch should I choose?
Five pitches are offered: 1.25, 1.53, 1.86, 2 and 2.5 mm. The finer the pitch, the closer a shopper can stand before the picture breaks into pixels, and the higher the resolution and the cost. For a plinth people walk right up to in a store or on a stand, 1.25 to 1.86 mm is the usual choice; 2 and 2.5 mm suit a mall concourse or a stage edge where viewers are further away. Tell us where it will stand and we will recommend one.
Can the plinth be moved around the store?
Yes, with the optional wheels. The plinth is then rolled to wherever the promotion is this week, or fixed in place without them. Say at enquiry whether it will move between locations and we will specify the base accordingly.
What goes in the glass enclosure?
A real product: footwear, a fragrance, a watch, a handset, a bottle, a collectible. The enclosure is clear glass on top of the LED plinth so the item is visible from every side. Enclosure size and any lighting inside it are confirmed with the quotation.
Can I have a round or cylindrical version, or a different size?
Yes. Cylindrical and round designs, custom sizes, different panel options and your own logo or graphics on the plinth are all available to order. Custom shapes are quoted individually, with the lead time confirmed on the quotation.
Is it suitable for a shop window or outdoors?
It is an indoor product. Brightness is adjustable between 800 and 1,200 cd/m2, which is ample for a mall, a store or an exhibition hall but not for a window facing direct sun or for weather. For those see our shopfront LED displays and outdoor LED displays.
How is it priced and what does the price include?
Price on application. Tell us the pixel pitch, how many units, whether you need wheels and whether the design is standard or custom, and we will send a quotation covering the plinth with its glass enclosure and the control hardware to play your content. Every Dynamo LED display carries a 3-year return-to-base warranty.
