Dynamo Foldable LED Poster P1.53 at a glance: a free-standing 640 × 1,920 mm LED poster screen with a 1.538 mm pixel pitch (416 × 1,248 pixels) on a wheeled base. The 6063 aluminium cabinet folds in half to 1,090 mm high for transport and locks flat with a latch. It plays from a USB stick, a phone app or the network as standard, with HDMI and 4G as options, and has two 10 W speakers built in. 42.5 kg. £3,302 per poster excluding VAT; buy online below, or contact us for several posters.
Brochure: Download the Dynamo Foldable LED Poster brochure (PDF, 1.1 MB). Five spreads cover the product, folding and transport, content and control, where it is used and the full specification for all four pitches.
What is a foldable LED poster?
A foldable LED poster is a portrait LED screen in a self-contained cabinet that hinges at mid-height. Open, the Dynamo Foldable LED Poster is 650 mm wide, 2,050 mm high and 45 mm deep, with a 640 × 1,920 mm display area in the 7:21 format of a digital poster. Folded, it is 1,090 mm high and 100 mm thick: a size that goes through a doorway, into a lift, across the back seat of a car or into a flight case without taking anything apart. It stands on a base with four swivel wheels, and the power supply sits in that base rather than behind the LEDs, which keeps the screen cooler and the cabinet thin.

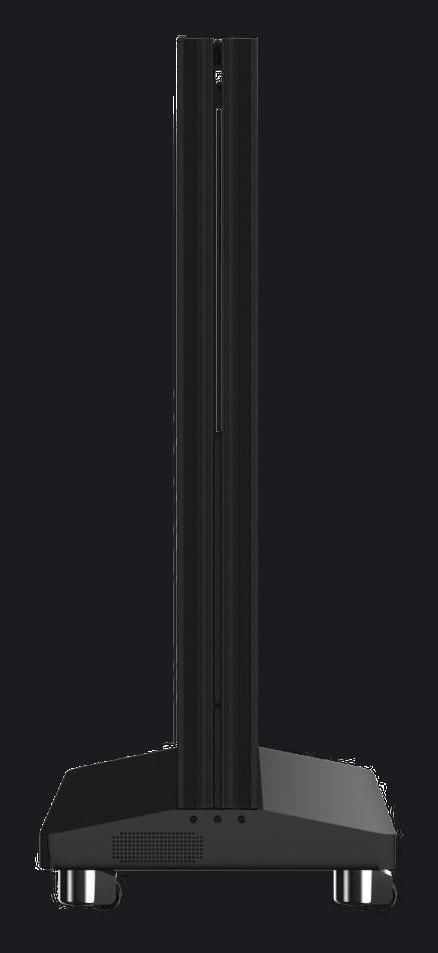

Manufacturer’s render of the product, not a Dynamo project.
How the Dynamo Foldable LED Poster works
The display is twenty-four 320 × 160 mm SMD 3-in-1 LED modules, two wide and twelve high, screw-fixed into the cabinet. At 1.538 mm that is 208 × 104 pixels per module and 416 × 1,248 pixels across the poster. The module faces are GOB: a resin layer over the LEDs that resists scratches, knocks, splashes and damp (IP54), which is what lets the poster travel between venues without a protective screen. Brightness is 500 to 800 cd/m², grey scale 14 to 16 bit, colour temperature adjustable from 3,200 to 9,000 K, refresh 3,840 Hz and above so it films cleanly on a phone or a broadcast camera.

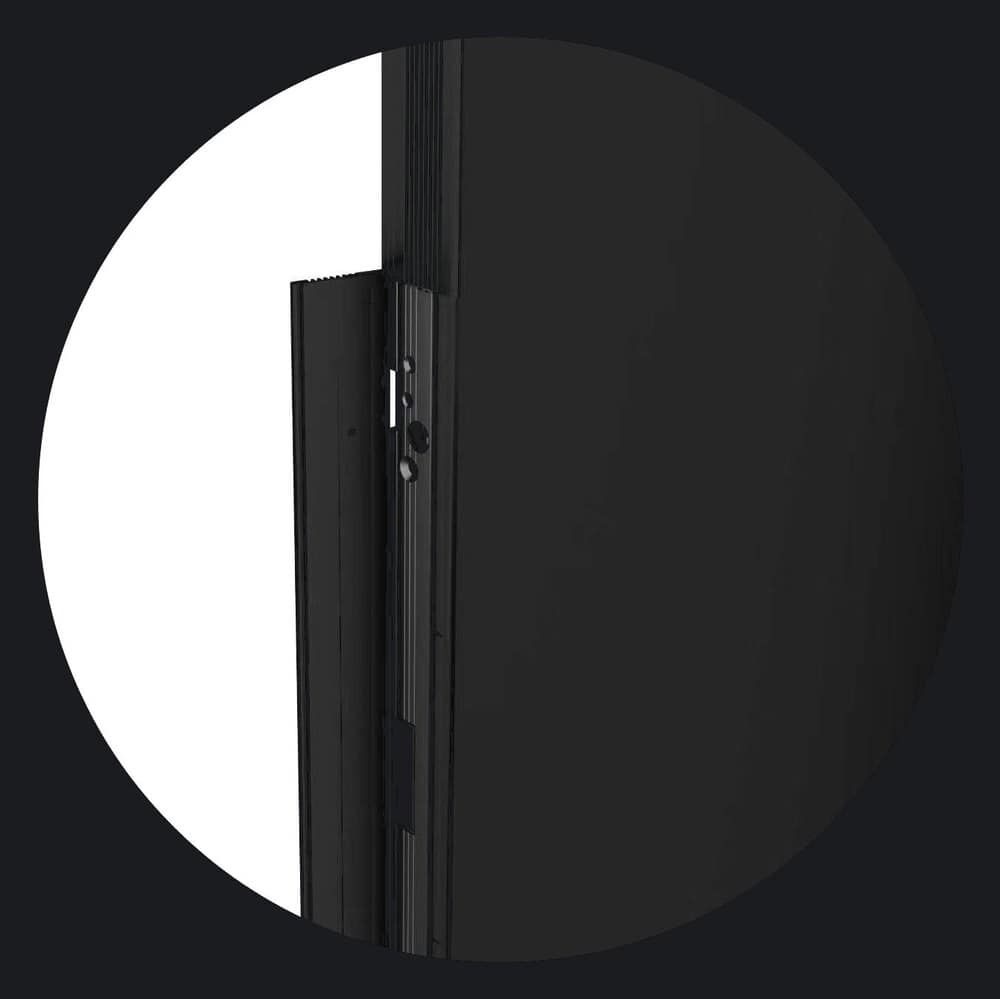

Opening the poster, a hawk lock and a latch pull the two halves flat to within 0.1 mm, so the join is not visible when the screen is on. The folding edge carries magnetic edge wrapping and positioning pins, which is also how several posters are lined up edge to edge to make one wider screen.

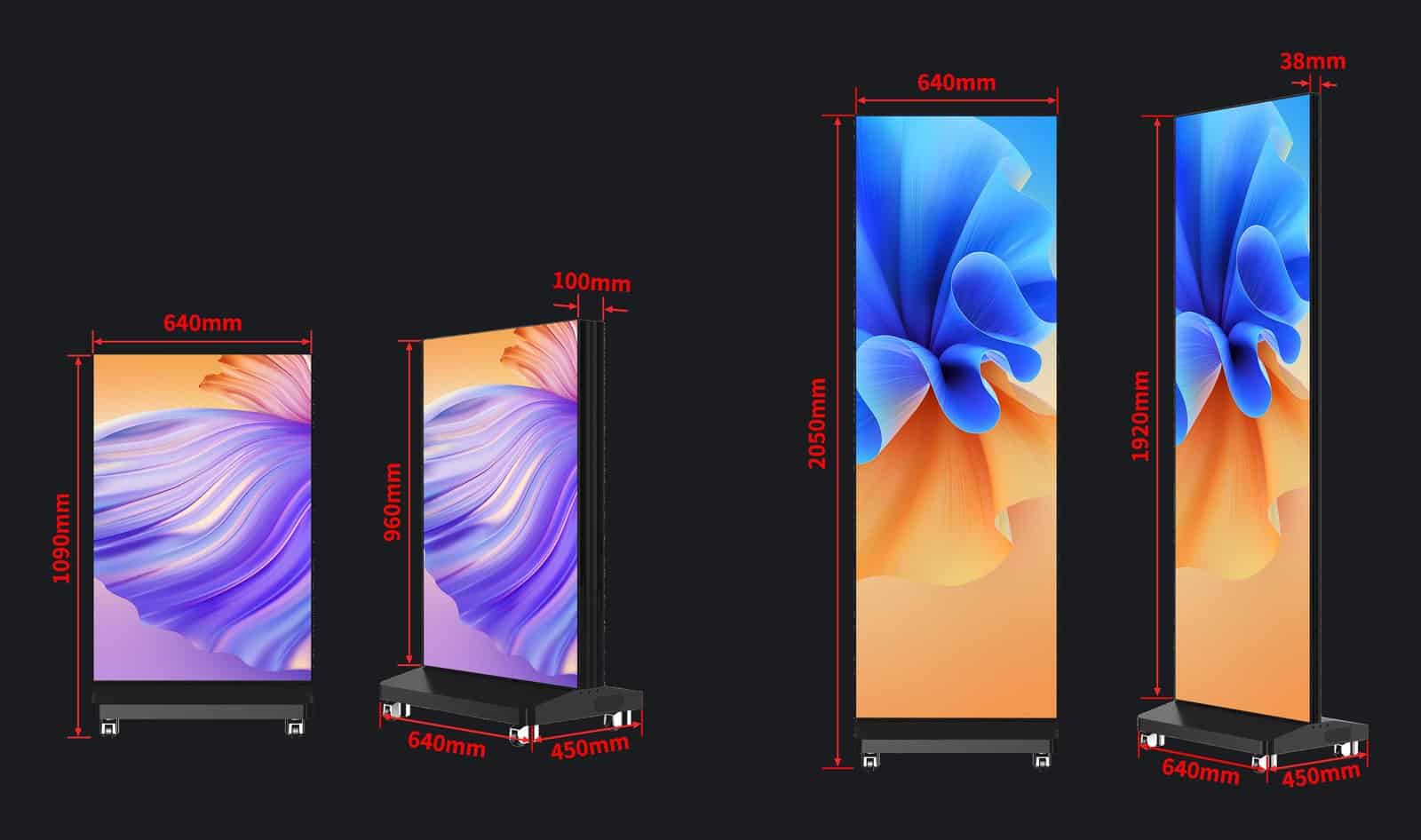

Left: folded, 640 mm wide, 1,090 mm high, 100 mm thick. Right: open, 2,050 mm high on the base, 38 mm cabinet. Manufacturer’s drawing.

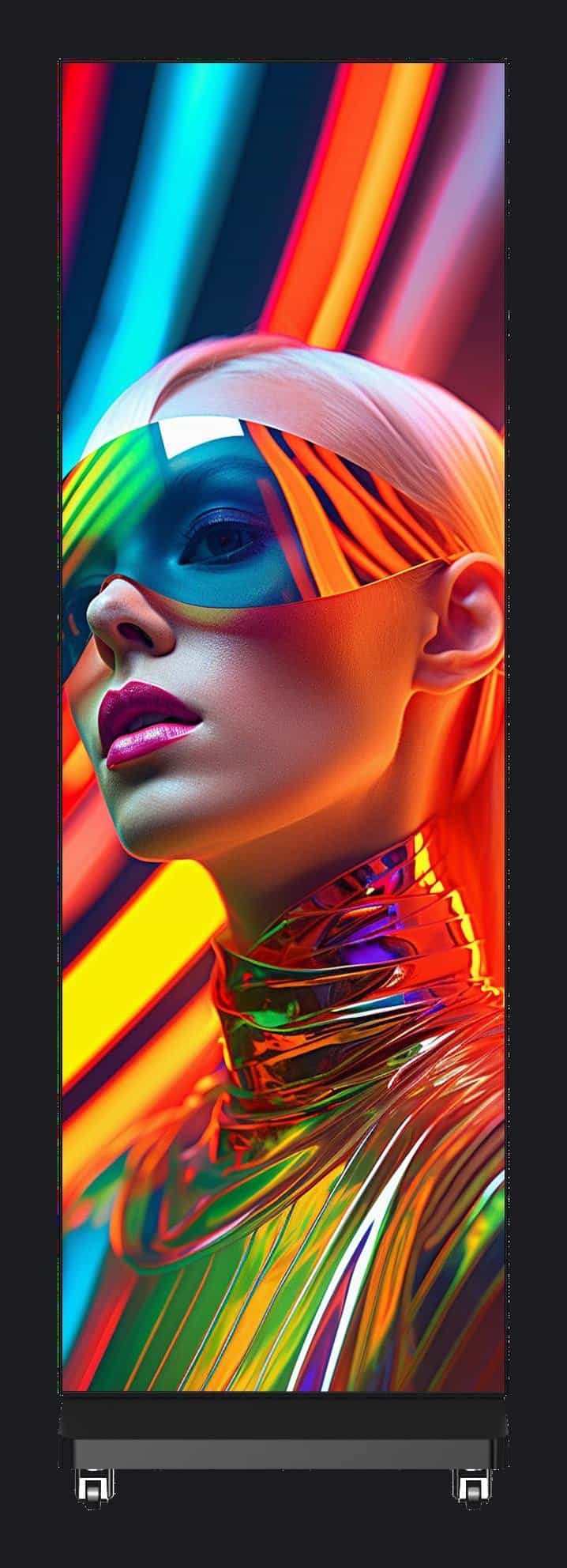

Manufacturer’s render of the product, not a Dynamo project.
Content: USB stick, phone app, network or HDMI
The poster is delivered assembled and tested, and plays on its own. Load a playlist on a USB stick or send it from the phone app over Wi-Fi in one tap, and the poster loops it with no network and no computer on site (asynchronous playback). Over the network port, the 4G option or the cloud, a group of posters across several sites is managed as one cluster, so the same campaign goes to every shop and is changed from one place. With the HDMI option the poster shows a live source (synchronous playback): a laptop at a conference, a camera for a live-stream background, a presentation on a stage, and HDMI auto-splicing extends one source across several joined posters. Two 10 W speakers are built in, with a 3.5 mm jack for an external amplifier.

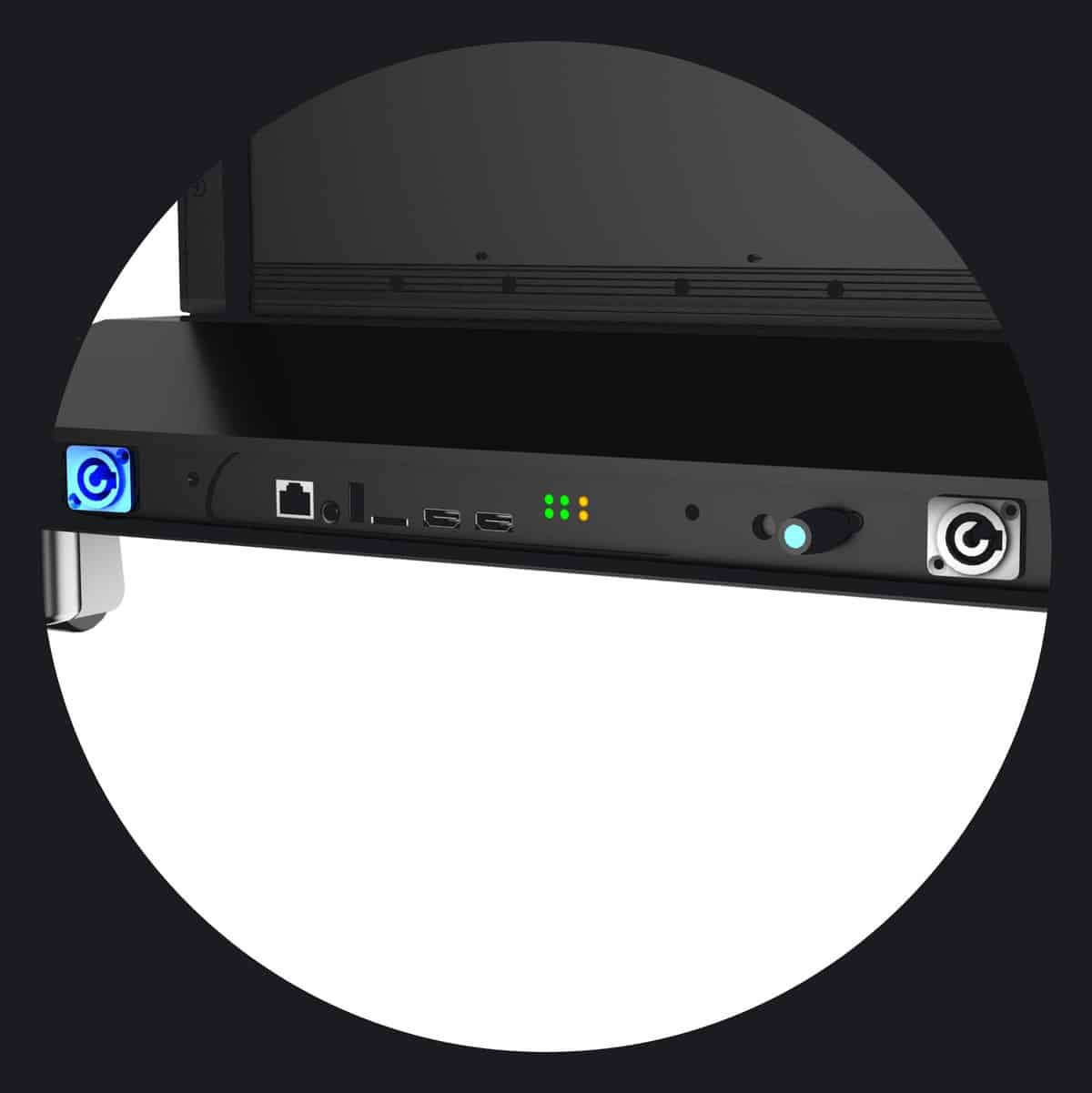

The recessed connection panel in the base: mains in and out, network, USB and HDMI. Manufacturer’s render.
Which pixel pitch: the four models compared
All four models share the same cabinet, weight, brightness, inputs and speakers; only the pitch and resolution change. Choose by the closest distance the poster is read from. The P1.86 is the other pitch we stock for online purchase; the P2.5 and P1.25 are priced on application. Our pixel pitch guide explains how viewing distance drives the choice.
| Model | Pixel pitch | Module pixels | Poster pixels | Read from | Price (ex VAT) |
|---|---|---|---|---|---|
| P2.5 | 2.5 mm | 128 × 64 | 256 × 768 | 3 m | Price on application: enquire |
| P1.86 | 1.86 mm | 172 × 86 | 344 × 1,032 | 3 m | £2,763 per poster |
| P1.53 (this page) | 1.538 mm | 208 × 104 | 416 × 1,248 | 2 m | £3,302 per poster |
| P1.25 | 1.25 mm | 256 × 128 | 512 × 1,536 | 1.5 m | Price on application: enquire |
The whole range is on the foldable LED posters page.
Joining posters into a wider screen
One poster is a 640 × 1,920 mm screen. Two side by side make 1,280 × 1,920 mm, three make 1,920 × 1,920 mm, and so on in 640 mm steps. The magnetic edges and positioning pins line the cabinets up and the HDMI auto-splicing spreads one picture across them, so a stand or a stage backdrop can be built from the same stock that works as single posters the rest of the year. For a permanent wall at this pitch, see our LED video walls instead.

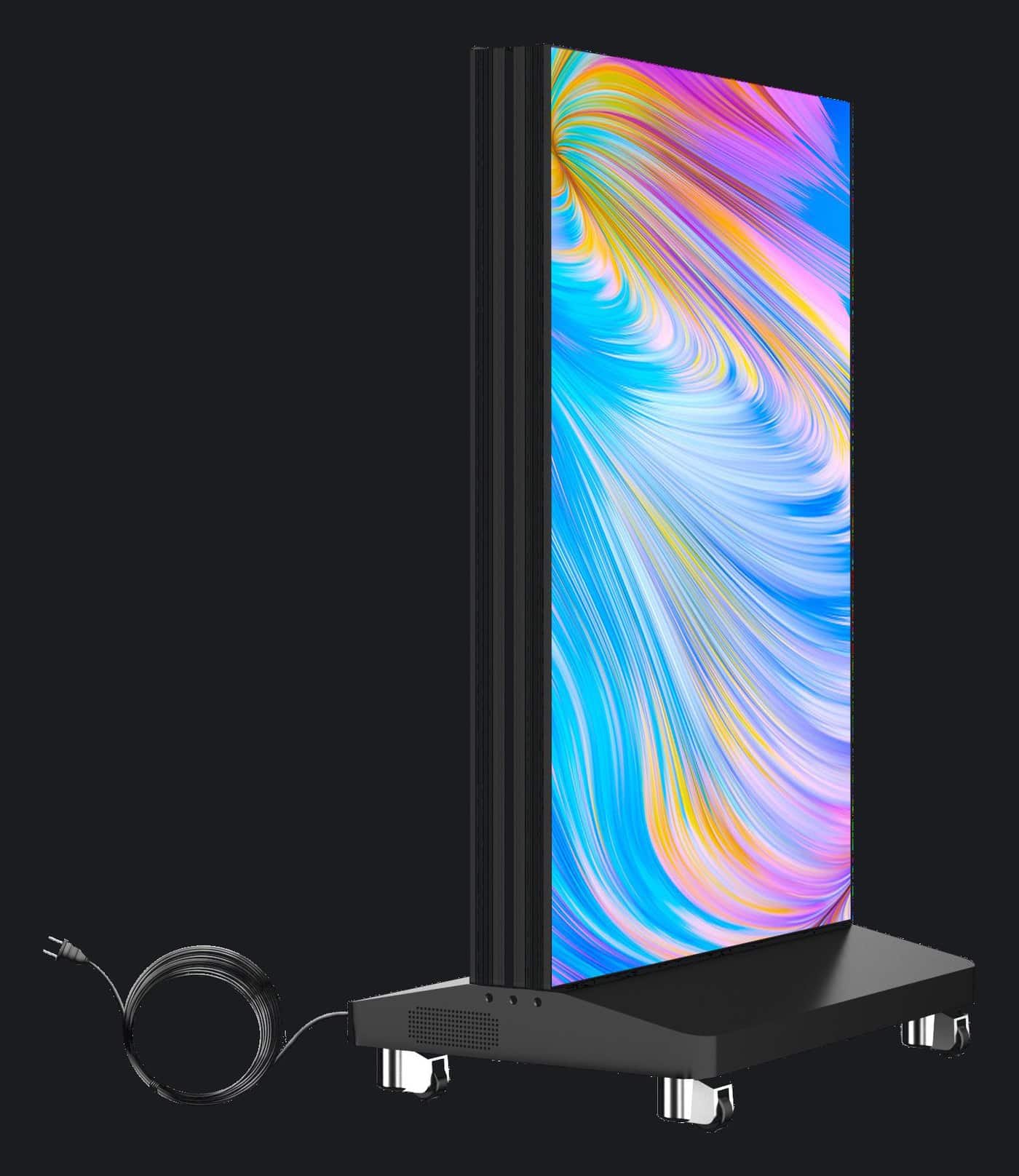

Manufacturer’s render of the product, not a Dynamo project.
Specification: Dynamo Foldable LED Poster P1.53
| Pixel pitch | 1.538 mm |
| Resolution | 416 × 1,248 pixels (519,168 per poster); module 208 × 104 |
| Display area | 640 × 1,920 mm, 7:21 portrait |
| Overall (W × H × D) | 650 × 2,050 × 45 mm open; 640 × 1,090 × 100 mm folded; cabinet 38 to 45 mm |
| Weight | 42.5 kg net |
| Cabinet | 6063 aluminium profile; mid-height hinge with hawk lock and latch; magnetic edge wrapping; base with four swivel wheels |
| LED module | 320 × 160 mm SMD 3-in-1, 0.55 kg, 2 wide × 12 high (24 per poster), screw-fixed, GOB face |
| Brightness | 500 to 800 cd/m² (650 cd/m² white balance) |
| Grey scale; colour temperature | 14 to 16 bit adjustable; 3,200 to 9,000 K adjustable |
| Refresh rate; frame rate | 3,840 Hz and above; 60 Hz; constant-current drive |
| Viewing angle; contrast | 160° horizontal, 160° vertical; 8,000:1 |
| Uniformity; flatness | Luminance 95% and above, chromaticity ±0.003 Cx,Cy; ±0.1 mm |
| Best viewed from | 2 m and beyond, to 20 m |
| Protection | GOB module face; IP54; scratch-, knock-, splash- and moisture-resistant; indoor use |
| Inputs and control | USB drive, Wi-Fi and network port as standard; HDMI and 4G as options; phone app; cloud cluster management |
| Playback | Synchronous (live source) and asynchronous (stored playlist) |
| Audio | 2 × 10 W 8 Ω speakers; 3.5 mm jack for an external amplifier |
| Power | 100 to 240 V AC; maximum 550 W, average 185 W; power supply in the base |
| Environment | Operating −40 to 50 °C, 10 to 80% RH non-condensing; typical LED life 50,000 h |
| Warranty | 3-year return-to-base |
Figures are from the product specification. Module and poster pixels are derived from the pitch. Specifications may change without notice.
Where a foldable LED poster is used
- Retail: shop floors, brand chains and supermarkets, with the same campaign on every store’s poster and the poster moved to wherever the promotion is this week. For a window facing the street see our shopfront LED displays and shopfront versus window LED strategy.
- Events and stage: conferences, product launches, award dinners and live-stream backgrounds. It arrives folded, is open and playing in minutes and goes back in its case the same evening, which is why it suits LED screen hire stock.
- Exhibitions: a stand screen that one person wheels in, with two or three joined for a wider backdrop.
- Lobbies: reception, hotel and office lobbies for welcome screens, wayfinding and the day’s agenda, with no wall fixing and no cabling to the ceiling; see LED displays for hotels and hospitality.
- Showrooms, restaurants and schools: model information, menus and specials, timetables and announcements.

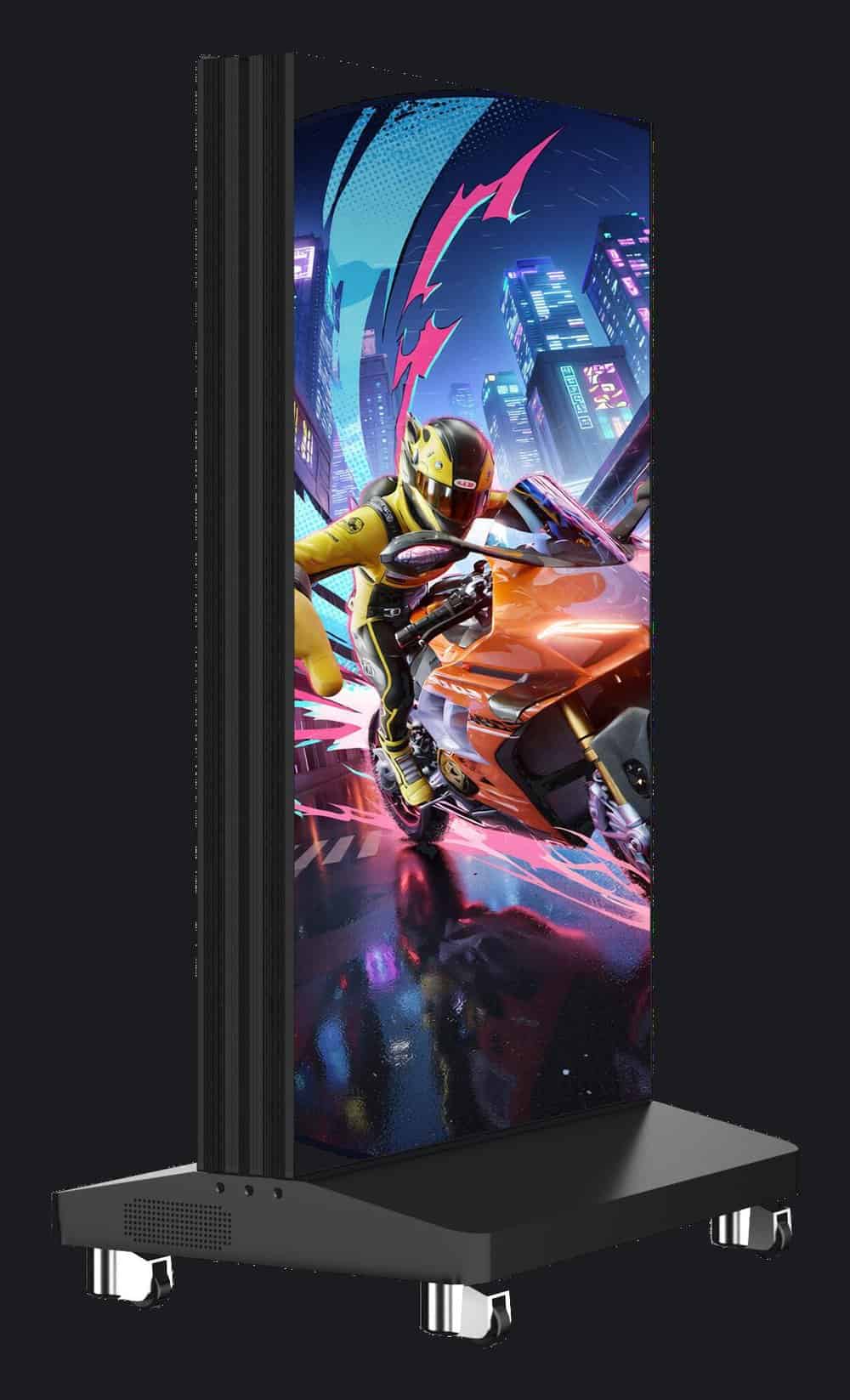

Manufacturer’s render of the product, not a Dynamo project.
What is in the box
- One Dynamo Foldable LED Poster P1.53, assembled and tested, on its wheeled base
- Built-in player with USB, Wi-Fi and network input, and the phone app
- Two built-in 10 W speakers
- Mains lead
HDMI and 4G inputs are options. A flight case is not included: add the flight case for one poster (£236) or the flight case for two posters (£320) to your order.
Price, ordering and warranty
£3,302 per poster, excluding VAT, for the Dynamo Foldable LED Poster P1.53. Add it to your basket above, or contact us for several posters, a mix of pitches, HDMI or 4G options, or a hire enquiry. Every Dynamo LED display carries a 3-year return-to-base warranty. Browse the rest of the range on our LED display products and indoor LED displays pages.
Buying more than one, or not sure which pitch?
Tell us where the posters will stand and how close people will be. We will confirm the pitch, the number of units and the flight cases and send a quotation.
Contact us or call +44 (0)203 489 9878.
Dynamo Foldable LED Poster P1.53: frequently asked questions
What is a foldable LED poster?
A foldable LED poster is a free-standing portrait LED screen built into a cabinet that hinges at mid-height. Open, it is a 640 x 1,920 mm display 2,050 mm tall on a wheeled base. Folded, it is 1,090 mm high and 100 mm thick, so it goes through a doorway, into a lift or into a car or a flight case without any dismantling.
How is the P1.53 different from the P1.86?
Only the pixel pitch and the resolution. The P1.53 has a 1.538 mm pitch and 416 x 1,248 pixels; the P1.86 has a 1.86 mm pitch and 344 x 1,032 pixels. The cabinet, weight, brightness, inputs and speakers are the same. Choose by the closest viewing distance: the P1.53 reads comfortably from 2 m.
Does it need an installer or a technician?
No. The poster is delivered assembled and tested on its base. Open it, lock it with the latch, plug in the mains lead and it starts playing the content loaded on it. No computer, no network and no parameter set-up are needed on site.
How do I put content on it?
From a USB stick, from the phone app over Wi-Fi, or over the network port. With the HDMI option it also shows a live source such as a laptop or a camera feed, and content can be managed remotely for a group of posters over the network, the 4G option or the cloud. The poster plays in a loop on its own (asynchronous) or live from a source (synchronous).
Can several posters be joined into one screen?
Yes. Posters stand edge to edge; the magnetic edge wrapping and positioning pins line them up, and HDMI content splices across the units automatically. Each poster is still its own 640 x 1,920 mm unit, so the joined screen is a multiple of 640 mm wide.
Is it suitable for a shop window or outdoors?
No. Brightness is 500 to 800 cd/m2, which suits a shop floor, a lobby, a stand or a stage indoors. The GOB face is scratch-, knock-, splash- and moisture-resistant (IP54), which is about surviving transport and busy rooms, not weather. For a window facing the sun see our shopfront LED displays.
What does the price include?
The price is per poster, excluding VAT: the P1.53 poster assembled and tested on its wheeled base, with the built-in player, the two 10 W speakers and the mains lead. HDMI and 4G inputs are options and flight cases are sold separately. Every Dynamo LED display carries a 3-year return-to-base warranty.
Which flight case do I need?
One case takes one folded poster; the two-poster case is 135 x 67 x 87 cm and takes two folded posters. Both are sold separately on this site. For hire stock or a touring event we recommend a case per pair of posters.
