Dynamo LED Displays hired two 4.5 m by 2 m DRE Series fine-pitch LED walls, 1.29 mm pixel pitch and 3456 by 1536 pixels each, to ABG Lab for its cosmetics launch at Isabel’s in Mayfair on 25 June 2025. Both walls were built, calibrated, run from NovaStar playback hardware and de-rigged within the same day.
Updated October 2026. Case study first published July 2025.
Project facts
| Client | ABG Lab, an aesthetics and skincare brand founded by Dr Elina Tester |
|---|---|
| Event | Cosmetics launch for influencers and beauty press, 25 June 2025 |
| Venue | Isabel’s, Mayfair, London |
| Screens | 2 × DRE Series P1.29 LED walls (Dynamo’s “1.2 mm” hire kit), 4.5 m × 2 m each |
| Resolution | 3456 × 1536 px per wall (9 × 4 cabinets of 384 × 384 px) |
| Playback | NovaStar ET4S-G media server and NovaStar H2 all-in-one video processor |
| Service | Same-day delivery, build, calibration, on-site operation and de-rig by Dynamo LED Displays |
| Production agency | Tech Events |
The brief: a launch where guests stand close to the screen
ABG Lab launched a cosmetics range on 25 June 2025 with an evening reception at Isabel’s, an intimate venue in Mayfair. The guests were industry influencers and beauty experts, with the brand’s founder, Dr Elina Tester, among them. Tech Events produced the evening and asked Dynamo for two large screens to carry product films, brand graphics and a live social media feed.
Two things shaped the specification. The room is intimate, so guests would stand within a metre or two of the screens with a drink in hand. And the venue trades every day, so the screens had to arrive, go up, run the event and leave within a single day. That pointed to our 1.29 mm hire panels on a freestanding build rather than anything flown.
What Dynamo supplied

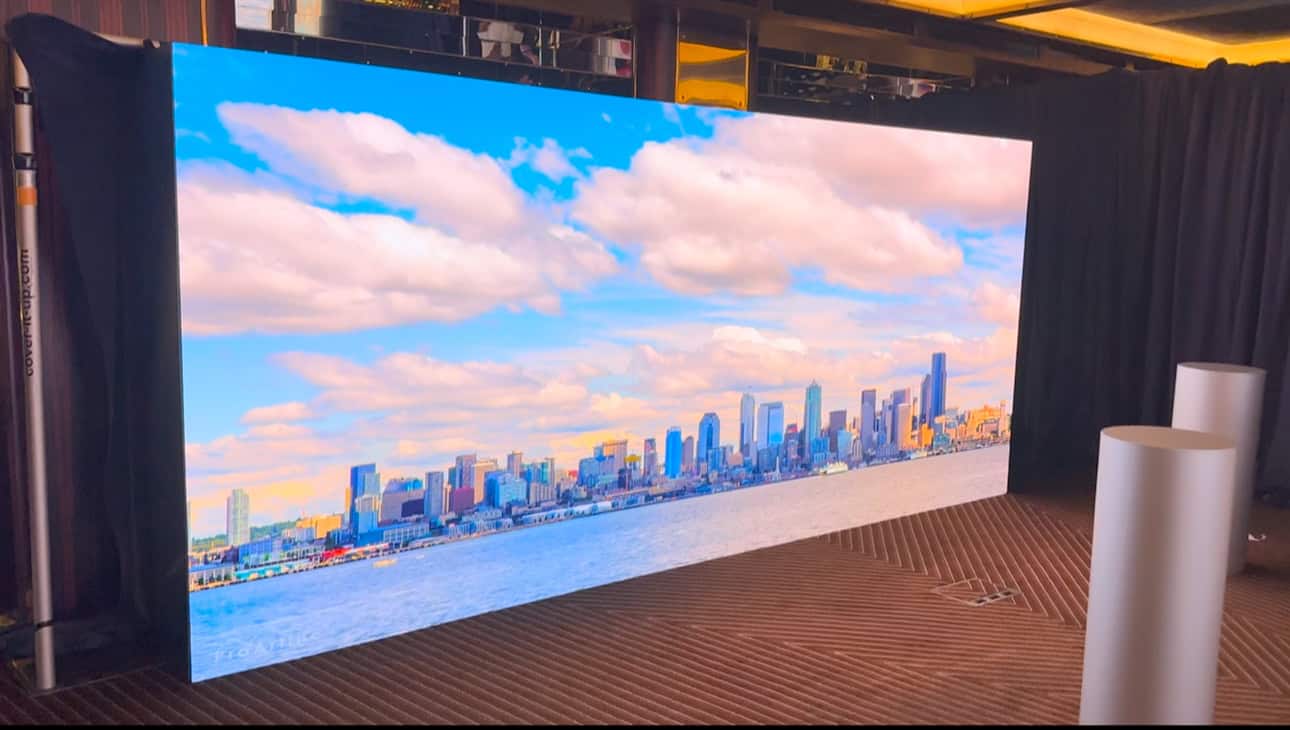

Two 4.5 m by 2 m DRE fine-pitch LED walls
Each wall was built from DRE Series P1.29 cabinets, the panel Dynamo markets as its 1.2 mm hire kit. A cabinet is 496 mm square, weighs 9.2 kg and carries 384 by 384 pixels, so a nine-by-four build gives a 4.46 m by 1.98 m surface at 3456 by 1536 pixels. At 1.29 mm the pixel structure is not visible from a normal standing distance, which is the point for a launch where guests lean in to look at product shots and packaging.
The DRE cabinets are front-serviceable, so a module can be swapped or re-seated from the front without pulling the wall apart, and the X-GOB resin finish protects the LEDs from knocks, dust and the odd spilt drink. The DRE Series is also the panel we use for LED screen hire across conferences, exhibitions and camera-critical stages.
Same-day build, calibration and de-rig
The crew arrived on the morning of the event, built both walls freestanding on the venue floor, dressed the edges in black drape and cabled the processing at the back. Once powered, the walls were calibrated so every cabinet matched in brightness and colour, then the client’s content was tested on the real screens. Brightness and white point were set to suit the room lighting rather than left at factory defaults, because a cold, over-bright wall looks wrong beside warm hospitality lighting. When the last guests left, the same crew de-rigged both walls and cleared the venue that evening.
Playback on NovaStar hardware
Content ran from a NovaStar ET4S-G media server into a NovaStar H2 all-in-one video processor, which scaled and split the feed across the two walls and allowed them to show one continuous image when the running order called for it. Dynamo’s operator could adjust brightness, colour and source on the fly during the evening. The playlist mixed product films, branding loops and a live social media feed, all rendered at the walls’ native 3456 by 1536 pixels.
Why a 1.29 mm pitch suits a cosmetics launch
Pixel pitch is the distance between the centres of neighbouring pixels. The finer the pitch, the closer a viewer can stand before the image breaks into dots. A working rule is that the comfortable minimum viewing distance in metres is about the same number as the pitch in millimetres, so 1.29 mm panels hold together from a little over a metre away. For a drinks reception that is the difference between a screen that reads as a printed backdrop and one that reads as a video wall.
Skincare content is unforgiving on colour. Skin tones, product textures and pale packaging show any cast in the whites, so the calibration step and the on-site white point adjustment matter as much as the pitch. Our guide to integrating rental LED screens into luxury retail spaces covers the same colour temperature and colour rendering questions in more depth.
DRE P1.29 hire panel at a glance
Figures from the DRE Series datasheet and Dynamo’s hire fleet record.
| Specification | DRE P1.29 (indoor hire) |
|---|---|
| Pixel pitch | 1.29 mm |
| Cabinet size | 496 × 496 mm |
| Cabinet resolution | 384 × 384 px |
| Module size | 248 × 248 mm |
| Cabinet weight | 9.2 kg |
| Refresh rate | 1,920 to 3,840 Hz |
| Brightness | 800 nits or more |
| Viewing angle | 160° horizontal / 160° vertical |
| LED protection | X-GOB resin finish |
| Service access | Front |
What the production agency said
“Working with Dynamo LED Displays was a seamless experience. Their professionalism and technical expertise ensured our visuals were stunning and on schedule. They truly brought our vision to life,” said Sasha from Tech Events, the production agency behind the launch.
Planning fine-pitch LED screen hire for a launch event
Brief the content team on the native resolution
Give the content producer the wall’s pixel size and aspect ratio before anything is designed. A 4.5 m by 2 m wall is 2.25:1, not 16:9, so a standard HD file will either letterbox or stretch. Send a test file to Dynamo a few days ahead so it can be checked on the media server.
Confirm access, power and build time with the venue
A freestanding wall needs a clear route from the loading bay, a level floor, and enough time before guests arrive for the build and calibration. Two walls of this size draw more current than a domestic socket can supply, so check the venue’s power with our note on LED screen hire power requirements for events. If the venue cannot accept rigging points, ground-stacking is the answer; see rigging versus ground-stacking a hired LED screen.
Decide who operates the screens
For a launch with a running order, a Dynamo operator on site can switch sources, adjust brightness as the room lighting changes and deal with any content issue without the organiser noticing. Build that into the hire rather than leaving it to the venue’s AV team.
Related Dynamo event and luxury LED projects
- Curved LED screen hire for the Glossier pop-up on Regent Street
- Luxury LED installations for Sotheby’s in London
- Hermès 2024 festive LED window displays
- LED video wall for the LG G4 London launch
- LED screen hire for the Oculus Quest 2 launch at Harrods
Fine-pitch LED screen hire for launch events: frequently asked questions
What pixel pitch do you need for a product launch where guests stand close to the screen?
Work from the nearest viewing distance. A rough rule is that the comfortable minimum distance in metres matches the pitch in millimetres, so a wall guests will stand 1 to 2 m from wants 1.29 mm to 1.93 mm. For a seated presentation with the front row 3 m back, 1.93 mm or 2.58 mm is enough and costs less to hire.
What resolution is a 4.5 m by 2 m LED wall at 1.29 mm pixel pitch?
Built from nine by four DRE P1.29 cabinets of 384 by 384 pixels, the wall is 3456 by 1536 pixels and measures 4.46 m by 1.98 m. That is a 2.25:1 canvas, wider than 16:9, so content should be produced at the native pixel size rather than stretched from a 1920 by 1080 file.
How long does it take to install a hired LED wall for a one-day event?
A freestanding wall of this size goes up in a few hours: cabinets lock together on a base, the processor and media server are cabled at the back, and the crew calibrates the wall before the client sees it. At the ABG Lab launch both walls were built in the morning and taken down the same evening after the guests left.
What is X-GOB protection on a rental LED panel?
X-GOB is the glue-on-board finish used on the DRE Series. A transparent resin layer is cast over the LEDs, so the module surface is smooth and can be wiped clean, and the diodes are protected from knocks, dust and spills. That matters at a drinks reception where guests stand within arm’s reach of the screen.
What content format should we supply for a fine-pitch LED wall?
Ask for the wall’s native pixel size and aspect ratio before the content is made. For the ABG Lab walls that was 3456 by 1536 pixels per screen. Supply video as H.264 or ProRes files at that size, graphics as PNG, and send a test file early so the media server operator can check playback and colour on the real wall.
How much does fine-pitch LED screen hire cost?
The hire price depends on the screen area, pixel pitch, the number of days, crew time for build and de-rig, and transport to the venue. Finer pitches such as 1.29 mm cost more per square metre than 2.6 mm or 3.9 mm. Our explainer on how LED wall hire quotes are built sets out each line, and a written quote follows a short brief.
Get a quote for LED screen hire for a launch event
Tell us the venue, the date, how many screens you need and how close guests will stand, and we will come back with a pixel pitch, a build plan and a written hire quote. Get a quote or call 020 3489 9878.
