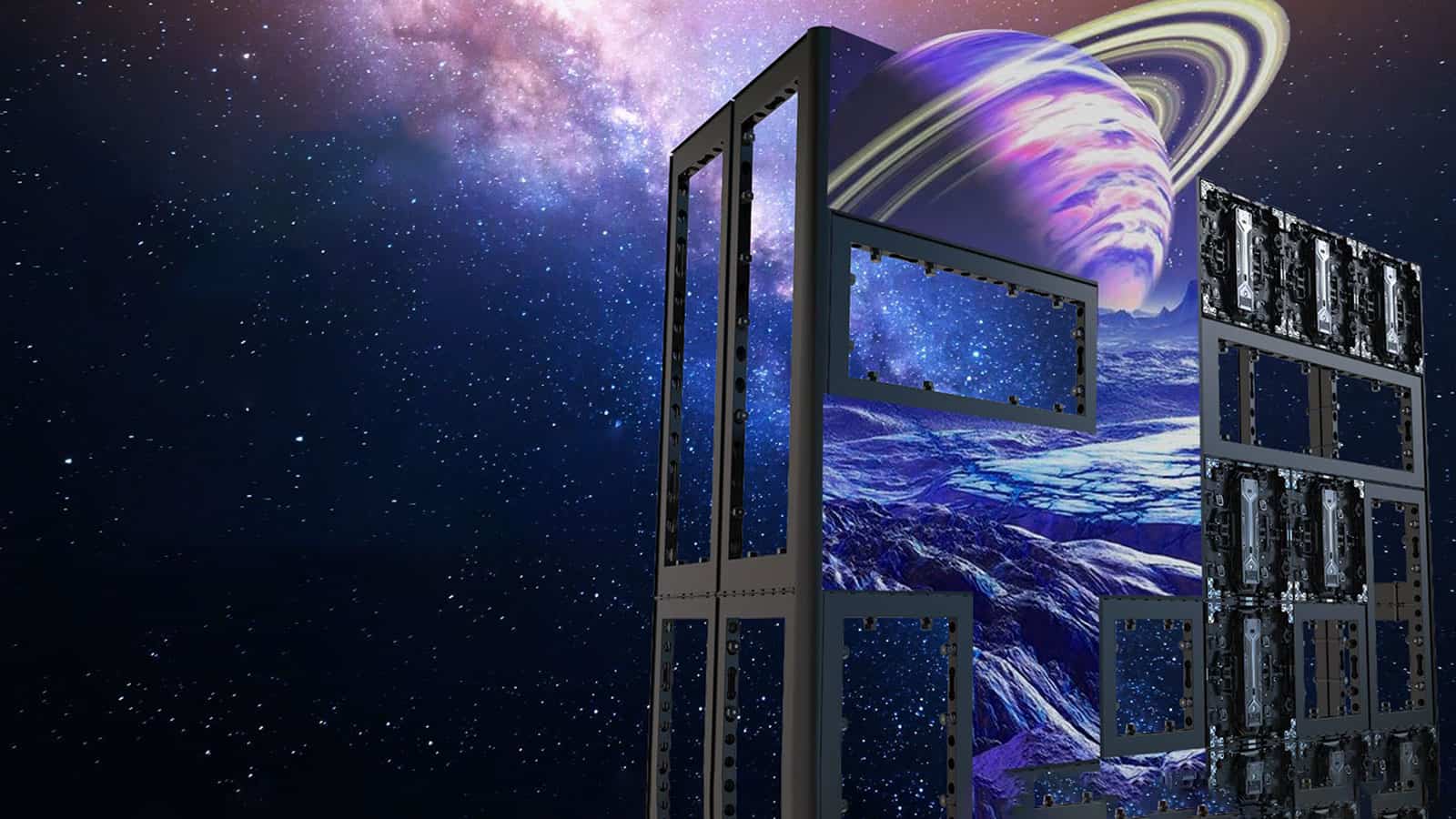

DRE Series Products

£712.00£2,400.00

Compatible With 55mm/62mm Frame System Protective Resin Cover On The LEDs Bematrix & Aluvision Frame System Exhibition Stand LED 496mmX496mm SEG Slot, Cover Plate, Backlight Strip Vesa Mount And Shelf Function Extend Your Creativity

All-in-one Solution

496mm
OUTDOOR SPECIFICATION
496mm
55
All-in-one Solution P1.55
62mm
All-in-one Solution P1.55

496mm

PITCH P1.55 PI.93 P2.58
DRE155I
DREI931
DRE258i
SMD mode (cd/m²)
>800
>800
>800
DISTANCE
>1.55M
Content
>2.58
LED KIND
MicroX
MicroX
MicroX
PROTECTION
X-GOV
X-GOB
X-GOB
TECHNOLOGY
MicroX
REFRESH RATE
1920Hz-3840Hz
VIEWING ANGLE
160°(H) | 160°-(V)
CONTRAST
6000:1
MODULE SIZE
248 x 248 mm 496 x 496 x 55 mm / 62 mm
CABINET SIZE
19.5" x 19.5" x 2.2" / 2.4"
CABINET RES (px)
320 x 320
256 x 256
192 x 192
SYSTEM
Stacking / Hanging / Stitching
DRIVE MODE (Scan)
1/32
1/32
1/16
ENVIRONMENT
IP40 / IP20
MAX POWER (w/m²)
(CCT) 600W/m²
VOLTAGE
AC 100-240V
WEIGHT
9.2kg/Panel (No extensions)
CERTIFICATION
CE, EMC,TUV-EMMC,FCC, ETL, UL,PSE, CCC, RoHS
PITCH P1.55 PI.93 P2.58 P2.95 P3.875
SERIES NO
RE155d
REI93d
RE258d
RE295d
RE387d
SMD mode (cd/m²)
>3500
>3500
>3500
>3500
>3500
DISTANCE
>1.55M
>1.93m
>2.58
>2.95m
>3.87m
LED KIND
MicroX
MicroX
MicroX
MicroX
MicroX
PROTECTION
X-GOV
X-GOB
X-GOB
X-GOB
MASK
Pixel Density ( dots/m²)
416025
268324
150232
114244
66564
TECHNOLOGY
MicroX
REFRESH RATE
1920Hz-3840Hz
VIEWING ANGLE
160°(H) | 160°-(V)
CONTRAST
6000:1
MODULE SIZE
248 x 248 mm
CABINET SIZE
496 x 496 x 55 mm / 62 mm 19.5" x 19.5" x 2.2" / 2.4"
CABINET RES (px)
320 x 320
256 x 256
192 x 192
168x 168x
128x 128
SYSTEM
Stacking / Hanging / Stitching
DRIVE MODE (Scan)
1/40
1/32
1/24
1/14
1/8
ENVIRONMENT
IP56 / IP54
MAX POWER (w/m²)
(CCT) 600
(CCT) 600
VOLTAGE
AC 100-240V
WEIGHT
9.2kg/Panel (No extensions)
CERTIFICATION
CE, EMC,TUV-EMMC,FCC, ETL, UL,PSE, CCC, RoHS

All-in-one Solution

496mm
OUTDOOR SPECIFICATION
496mm
55
All-in-one Solution P1.55
62mm
All-in-one Solution P1.55

496mm

REAR VIEW

SIDE DETAIL VIEW

RE-Series-C-5

55mm Frame
Connect M6

55mm Frame connect M6

TOP DETAIL VIEW

55mm Frame
connect M6

Side lock

Side lock

Maintenance

Frame Control box

FRONT-MAINTENANCE

FRONT MAINTENANCE

496 Corner

BACK MAINTENANCE

REAR MAINTENANCE

STACKING SYSTEM

HANGING SYSTEM

STACKING SYSTEM

Floor System

Robust enough to
bear cars

Accurately position
the cabinet

Robust-enough-to-bear-cars

90° connection
Make your corner & cube

Square profile used to 90° connect three or more cabinets/frames

90 DEGREE

One-quarter round profile

90° connection cabinets cut
45° In the left or right side of
your cabinet and then can't
connect with normal cabinet
from that side anymore.

CORNER FILLER

Corner Filler Left
Corner Filler Right
RE Series C 13
CNC left/right
DRE-Series-Bematrix-Aluvision

Use corner filler to turn 90 degree
cabinet into normal cabinet

SAFETY LOCK

SAFETY-LOCK

AD JUST THICKNESS

Adjust thickness by adding shims
behind 496 Corner to match the
different thickness frame

ADJUST-THICKNESS

6 CORNER

496 CORNER

Switch screw hole

496x496mm size Frame cant connect like this
Connect to 62mmm Frame, Switch pin To ’62’ and Use M8
Switch screw hole
Connect to 62mmm Frame, Switch pin To ’62’ and Use M8

Backlight Strip

TV Backlight Led Strip Attach to 496 corner magnet

TV Backlight Led Strip

Combine with light in power box

Combine with light in power box

SEG SLOT

Use customisable cloth
to cover the back

SEG SLOT

Cover plate

Cover plate extension
Attach to 496 corner magnet

Cover plate
Cover plate re series

DRE can be combined with display tray and hook to give the screen a new display form, so that it can be integrated with the media broadcast, optimising the effect of the LED display.

TRAY EXTENSION

VESA MOUNT

OUTDOOR SPECIFICATION

Combine with monitor
arm to create a tree

RE Series Vesa mount

No need to worry about weight, standard mounts are sufficient.

RE-Series-Vesa-mount
Frame size customizable

Lox Driver

Use another lox as a handle save effort.
One multipurpose.

LOX DRIVER

Square profile used to 90° connect three or more cabinets/frames

RE Series Vesa mount

PROFILES

Cover plate

One-quarter round profile used to 90° connect two cabinets/frames

Diecasting
Module

Diecasting
Module

Diecasting
Module

DIECASET ALUMINUM

XR SOLUTON

VIRTUAL PRODUCTION

VBEX DVB and DNT series can be used in ceilings. VB is lighter than NT while ceilings built by NT is stabler than VB‘s.

DVX Studio and DEX Curve can perfectly provide Led wall. But through different way, DVX uses connector to concave while DEX itself is curved so you don't need to add additional parts.

DVX Studio also can make fine pitch floor, which avoid color shift, with our X360 technology.
VP Top View
NTVX Led Ceiling + Led Wall

Series used for VP Ceiling Display
DNT Series P2.97 | P3.9 | P3.9-7.8 | P4.8 | P7.8
DVB Series P2.6 | P2.97 | P3.9

Series used for VP Wall Display
DVX Studio P1.56 | P1.95 | P2.6
DEX Series P 2.06 | P2.58
VP Structure
cdn_helper cdn_helper cdn_helper cdn_helper

FRONT MAINTENANCE

You can easily access the front of the unit with the magnetic based structure, enabling you to spend less time and effort on maintaining it. The units are less likely to be damaged by impact, dust or water due to their resin cover.
XR Solution
LED Video Floor from Dynamo Led Displays
X360

Due to the 110° viewing angle of regular SMD LEDs, they are not suitable for XR/VP applications because of colour shift.

With our X-RES technology, we can almost eliminate colour shift caused by viewing angles, making X-RES the ideal LED for XR/VP applications。

XR Solution BromptonTechnology

DRE series can be used for either LED walls or non-reflective LED floor displays. They are fully optimised for Virtual Production/XR and are both compatible with Brompton displays technology.

TESSERA S8

4K LED VIDEO PROCESSORS

Xr solution

CHANGE YOUR LED TO MATCH YOUR CAMERA

In order to avoid unsightly effects, you must adjust the shutter speed of your camera to match the refresh rate of the LED screen. With this latest technology it is now possible to adjust the LED refresh rate according to the camera separately, allowing you to shoot film or make virtual productions easily. Currently, the feature is only available on the Tessera SX40 LED processor and the Tessera S8 LED processor.

xr solution

ADVANCE COLOUR MANAGEMENT

By importing 3D LUTs, you can fully customise your LED screen. LUTs allow advanced colour correction, which is common in film production, by remapping colours. To combine your LED screen into a colour management workflow, you can import the file directly into your Brompton Tessera LED processor. The feature is only available on Brompton’s Tessera SX40 and Tessera S8 LED processors.

BROMPTON LED FEATURE SET

01

Frame Remapping
Read more

02

Her +
High Frame rate
Read more

03

Ultra low
Latency
Read more

05

Thermacal
Read more

06

Purtone
Read more

07

Dark magic

08

Osca

09

Chromatune
Read more

10

Genlock
Read more

11

Redundancy
Read more

12

Tessera software
Read more
DRE Series

Indoor LED display, Outdoor LED display

Pitch

P1.55, PI.93, P2.58, P2.95, P3.875
