A large LED video wall changes the acoustic character of any room. Hard, flat and reflective, an LED video wall surface bounces sound back into the space in ways that plasterboard or soft furnishings never would. If LED wall room acoustics are not addressed during the design phase, the result is flutter echo, poor speech intelligibility and a room that fights its own AV system. The real question is not whether an LED video wall is “noisy.” It is what absorption, speaker coverage and maintenance space you lose when a hard luminous surface takes over an entire elevation.
Key takeaways
- Every LED video wall introduces a large, rigid reflective surface that raises reverberation time (RT60) in the room.
- Acoustic treatment should be planned alongside the LED installation, not retrofitted after handover.
- First reflections off the LED video wall surface are the priority — side walls and ceiling panels opposite the display matter most.
- Pixel pitch and cabinet construction are chosen for image quality and serviceability, not acoustic behaviour — the acoustic issue is the total hard surface area.
- Speaker position matters. If loudspeakers fire across the display or into nearby glass, the video wall can make intelligibility worse.
- Control rooms, boardrooms and hospitality venues each have different acoustic targets.
- Budget for acoustic treatment from day one; it is cheaper to integrate during fit-out than to correct afterwards.
At a glance: LED room acoustic considerations
| Factor | Detail |
|---|---|
| Primary issue | Large rigid reflective surface increases RT60 |
| Typical affected rooms | Boardrooms, control rooms, hotel suites, lecture theatres |
| Target RT60 (speech-critical) | 0.4–0.8 seconds |
| Target RT60 (multi-use hospitality) | 0.7–1.2 seconds |
| Key treatment zones | Ceiling, rear wall, upper side walls, returns around display |
| Common treatments | Fabric-wrapped absorbers, ceiling baffles, bass traps in corners |
| When to plan acoustics | During AV design phase, before LED video wall installation |
| Service access consideration | Front-service modules or planned rear access — acoustic build-up must not block maintenance |
Why an LED video wall changes room acoustics
An indoor LED video wall is made from rigid aluminium and polycarbonate cabinets that reflect almost all mid- and high-frequency sound energy back into the room, raising reverberation time (RT60) and degrading speech intelligibility. Unlike a projector screen — which is usually fabric or perforated material — these cabinets bolt together into a single continuous hard plane.
The acoustic metric that matters here is RT60: the time it takes for sound to decay by 60 decibels after the source stops. The Institute of Acoustics publishes guidance on acceptable RT60 values for different room types, and most speech-critical environments target somewhere between 0.4 and 0.8 seconds. Add a 4-metre-wide LED video wall to a medium-sized boardroom, and you have replaced what might have been a curtained window or acoustic panel with a surface that reflects nearly all incident sound energy.
The problem shows up in two distinct ways. Speech becomes harsher and less comfortable as early reflections bounce off the display, and the room can develop flutter echo — particularly when the video wall faces another hard plane such as a glazed rear wall. Loudspeaker coverage becomes less forgiving too: a pair of wall-mounted speakers either side of the display may look tidy, but if they spray energy across the video wall surface or into a hard ceiling, the room gets louder without getting clearer.
ISO 3382-1 covers how acoustic consultants measure room parameters such as reverberation time. On practical LED projects, we rarely need the client to become an acoustician. We do need the LED, audio and interior packages to stop fighting each other.

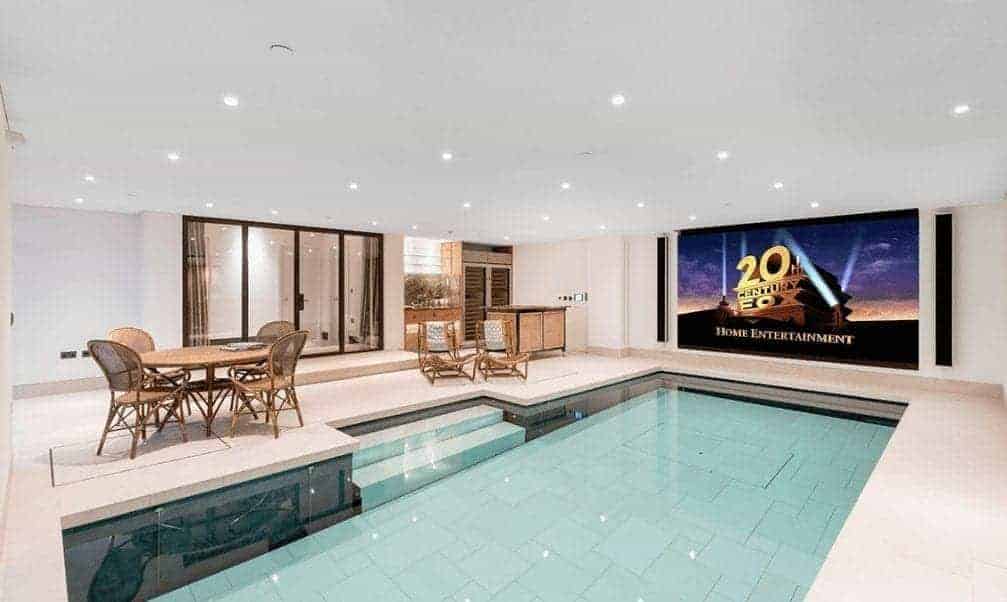

Where treatment works when the front wall becomes LED
The common mistake is to assume the front wall can still do the acoustic work after the LED video wall is installed. In most cases, it cannot. Once the display occupies the front elevation, useful treatment moves elsewhere.
Ceiling. Usually the most valuable surface. Acoustic rafts, baffles or a suspended ceiling with suitable absorption can reduce reverberation without competing with the display. Lighting, sprinklers, HVAC and camera sightlines all need to be coordinated — a ceiling plan drawn without acoustic input often leaves no room for useful absorbers.
Rear wall. If the rear wall is glass or hard plasterboard, reflections travel straight back towards the presenter and front loudspeakers. A treated rear wall can make a large room feel calmer without changing the LED design. We see this frequently in hospitality LED display projects and corporate reception areas where a double-height lobby sits behind the audience.
Side walls. The lower wall may be occupied by joinery, screens or doors, but the upper wall can still take fabric-wrapped panels or slatted absorbers with backing. For an LED room, the first reflection point on the side wall is the priority — where a line drawn from loudspeaker to wall to listener hits the surface.
Returns around the display. A narrow fabric border will not compensate for a 6-metre-wide reflective video wall, but a deeper reveal or treated architectural surround can reduce edge reflections and improve perceived comfort.
A 50mm panel with a 50mm air gap behind it will absorb effectively down to around 250 Hz. For rooms where low-frequency build-up is a concern — particularly smaller spaces with subwoofer content — thicker panels or dedicated bass traps in corners are worth specifying.
If you are specifying an indoor LED video wall, our P2.5mm indoor LED range pairs well with acoustic planning from the outset, or build your specification to start.
Room type matters: matching treatment to use case
Different rooms have different acoustic demands, and the presence of an LED video wall shifts the baseline in each case.
Boardrooms and meeting rooms. Speech intelligibility carries the design. RT60 should sit between 0.4 and 0.6 seconds. The LED video wall is often the largest single reflective surface, so side-wall and ceiling treatment opposite the display is critical. If video conferencing microphones are ceiling-mounted, untreated reflections off the video wall surface will degrade pickup quality and trigger echo cancellation issues.
Control rooms and operations centres. Staff may sit in the room for long shifts, so acoustic comfort matters as much as presentation clarity. Multiple LED video walls or a continuous display spanning one or more walls makes the challenge significant. Ceiling treatment and desk-level absorbers between workstations are standard approaches. On one control room project, we found the untreated space was measurably worse with three video walls than with one — the cumulative reflective area made the difference, not the individual panel.
Hospitality and event spaces. Hotels and venues using LED video walls for ballroom backdrops or function room displays have more flexibility on RT60, but once radio microphones, panel discussions and hybrid meetings are involved, the room cannot be designed only for music playback. Air walls, changing seating layouts and mixed content make acoustic prediction harder — where the LED video wall is permanent, the room still needs to cope with different audience sizes.
Lecture theatres. The rear seats should hear clearly without the front seats being overdriven. The LED video wall helps image visibility compared with projection, but if the room is too live, the content is seen before it is properly heard.
Fixed install choices that affect acoustic treatment
For fixed indoor work, the product line should match the installation. Our DFC Series is a front-service fine-pitch cabinet designed for premium fixed installs, while the DX Series covers mid-range fixed installs where budget and specification sit differently. Where acoustic performance is a specific design requirement, our ACO Series acoustic LED panels integrate sound-absorbing material directly into the cabinet, reducing the reflective surface area without requiring a separate treatment layer.

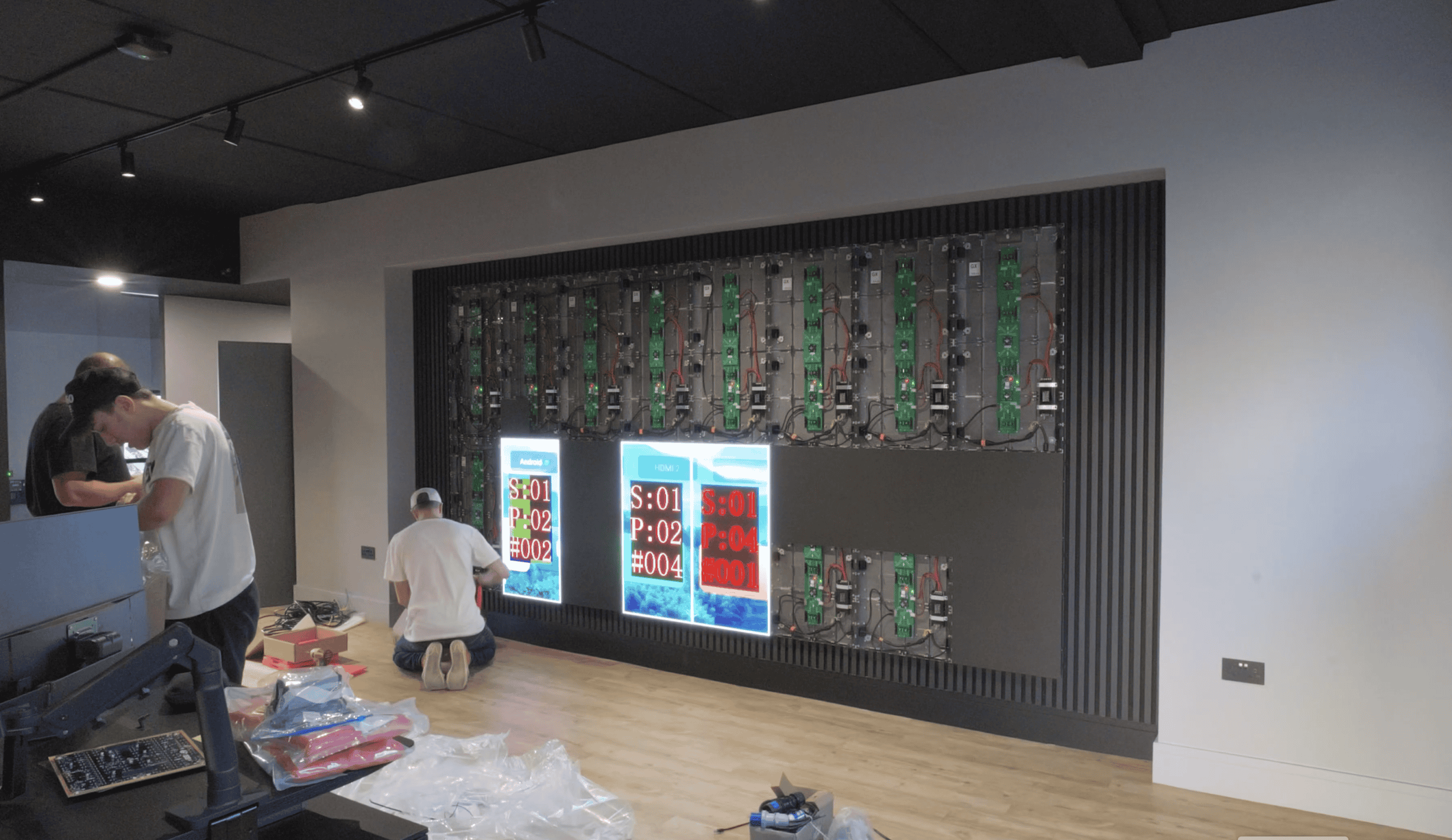

Access is the first practical decision. Front-service LED avoids creating a deep rear maintenance corridor, which can free up space for acoustic treatment. But it also means the surrounding trim must remain serviceable — acoustic fabric, timber features or decorative reveals must not trap modules in place.
Ventilation matters. LED video walls produce heat, and acoustic build-ups that block airflow can shorten component life or make the room uncomfortable. Where a design includes a recessed LED display, we check how air moves in and out before the joinery is closed.
Depth is worth discussing. A slim wall build-up may look attractive, but it can reduce space for cabling, structure and acoustic backing. A slightly deeper detail can sometimes give the acoustic consultant more options without changing the visible display size. On a recent boardroom fit-out, a 120mm-deep reveal behind the trim gave room for both cable routing and a layer of mineral wool that meaningfully reduced mid-frequency reflection from the surround.
Common mistakes and how to avoid them
Treating the wrong surfaces. Putting acoustic panels on the same wall as the LED video wall does nothing for reflections off the display itself. Treatment needs to go on the surfaces that receive reflected sound — the opposite wall, the ceiling and the side walls.
Hiding absorption behind the LED video wall. Panels behind the cabinets may reduce sound transmission to the room behind, but they do not address reflections off the front of the display, which is the primary acoustic issue.
Retrofitting after installation. Once the LED video wall is live and the room is furnished, access to ceiling voids and wall surfaces becomes more difficult and more expensive. Acoustic panels are far easier to install during the fit-out phase.
Ignoring loudspeaker interaction. A tidy speaker drawing is not always a useful one. Coverage pattern, firing angle and proximity to the display all affect how much energy the video wall reflects back into the room.
Assuming the LED video wall is the only problem. The display surface contributes to the acoustic environment, but it is rarely the sole issue. Glass, hard floors and untreated ceilings all play a role.
When we handle an LED video wall installation, we raise acoustic impact during the site survey and recommend involving an acoustic consultant early. A short RT60 measurement of the empty room before fit-out gives a baseline that avoids the guesswork of buying panels after the fact.
From the field
I’ve walked into plenty of rooms where a client has spent serious money on a high-specification LED video wall and then wondered why the space sounds terrible. The display looks stunning, but conversations feel strained and presentations are hard to follow. In nearly every case, acoustics were not part of the design conversation.
I’ve also seen the opposite — the display gets blamed for a problem caused by the wall behind the audience. The video wall surface was reflective, yes, but the real culprit was a glass partition sending everything straight back. My advice is always the same: walk the space, clap, speak from the presentation position and look at every hard surface before deciding where the treatment goes. Get an acoustic consultant involved when you are planning the LED video wall, not six months after it goes live.
LED wall room acoustics: frequently asked questions
Does the pixel pitch of an LED video wall affect room acoustics?
No. Pixel pitch determines image resolution and viewing distance, not acoustic behaviour. Whether you install a P1.5mm fine-pitch display or a P2.5mm panel, the acoustic impact is the same. The reflective surface area and the rigidity of the cabinet structure are what matter. A fine-pitch indoor LED video wall and a coarser-pitch display of the same physical size behave identically from an acoustic standpoint.
How much does acoustic treatment for an LED room cost?
Costs vary with room size, target RT60 and the extent of treatment needed. As of 2026, for a boardroom of roughly 30–50 m², fabric-wrapped wall panels run from £40 to £120 per square metre installed and ceiling baffles sit in a similar range. Based on treatment packages we have specified alongside LED installs, budget somewhere between £2,000 and £8,000 for treatment that makes a meaningful difference.
Can acoustic panels go behind an LED video wall?
They can physically go there, but they may do very little if the display blocks sound from reaching them. Absorption needs acoustic exposure to the room. For most commercial LED rooms, it is better to place treatment on the ceiling, rear wall, side walls or visible returns around the display.
What reverberation time should an LED meeting room target?
Many speech-led meeting rooms sit around 0.4 to 0.8 seconds, depending on size and use. A small boardroom may need the lower end of that range, while a larger multi-use room may sit higher. The right number should come from the room brief, not from the LED video wall alone.
Do LED video walls generate noise themselves?
Yes, to a degree. Cooling fans in the cabinets and power supplies produce a low-level hum. In a quiet boardroom or control room, this can be audible. Specifying low-noise fan modules and ensuring adequate ventilation behind the display reduces this. Fanless cabinets cut equipment noise but do not solve room reflections — the hard reflective surface remains.
Should the acoustic consultant be involved before the LED video wall is specified?
Yes, if the room is speech-critical, large, glazed, high-ceilinged or used for events. Early input can protect ceiling zones, rear-wall treatment and speaker locations before the interior design is fixed. It also avoids late panels being added in places that look awkward or block LED service access.
Does the size of the LED video wall matter for acoustic impact?
Directly. A larger display presents more reflective surface area, which increases the energy of reflected sound. A 2-metre-wide accent display in a lobby has a modest acoustic impact. A 6-metre-wide video wall spanning an entire boardroom wall is a significant acoustic event. Treatment specification should scale with the display size relative to the room volume.
Can a room with an LED video wall still meet accessibility standards for hearing loops?
Yes, but the acoustic environment affects hearing loop performance. A room with excessive reverberation degrades the signal that induction loops pick up from ceiling microphones, which in turn degrades what hearing-aid users receive. Treating the room to bring RT60 within the target range helps the loop system as well as unaided listeners.
Conclusion
Getting LED wall room acoustics right is a design-phase decision. An LED video wall introduces a large, hard, reflective surface into any room, and without proper acoustic treatment the space becomes fatiguing to use. The principles are straightforward: identify first reflection points, treat side walls and ceilings opposite the display, coordinate loudspeaker coverage with the room geometry and specify absorption that covers the frequency range the room needs. For fixed indoor work, we would normally steer towards our DFC or DX Series rather than a rental product, then build the room detail around the correct pixel pitch, structure and access method. The acoustic result depends on the whole room, not one cabinet choice.
To discuss LED wall room acoustics and planning for your next project, call us on +44 (0)203 489 9878 or get in touch through our contact page. We will help you plan the display, access and acoustic treatment so the room sounds as good as it looks from day one.
