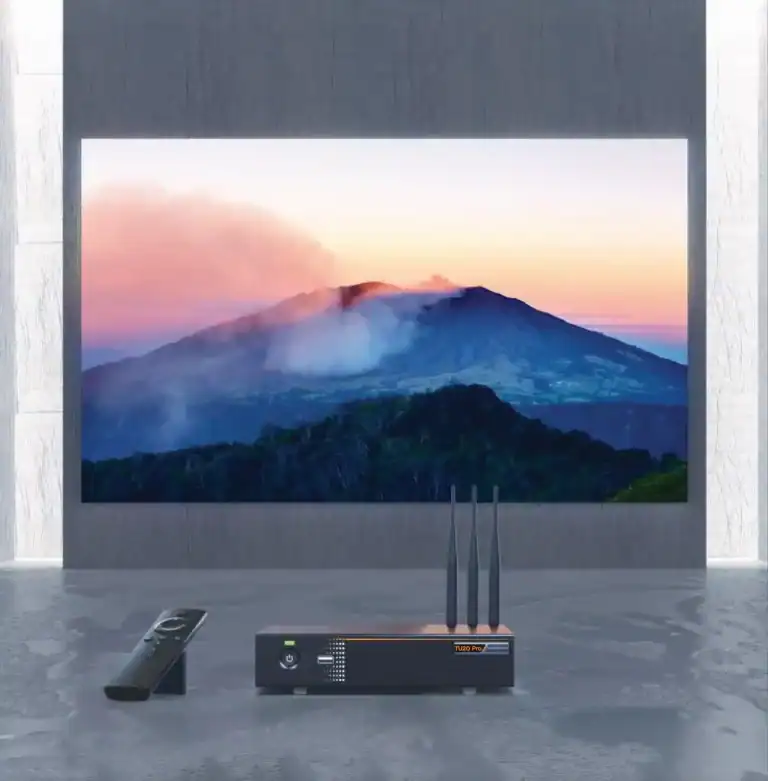

TU40 Pro LED Playback Control Processor

£2,200.00

Categories , Tags , , ,
TU40 Pro
Dimensions
445.0mmx383.0mmx49.9mm
Input Voltage
100-240V~, 50/60Hz, 2.5A Max
Standby Power Consumption
HDMI Input
Max. Width&Height
Max. Width 16384 pixels; Max. Height 8192 pixels
Loading Capacity
13 Million
Android
Android 13
Wi-Fi
Wi-Fi6 (AP) ; Wi-Fi5 (Station)
Memory Space
8GB/128GB
Input Ports
2xHDMl2.0; 1xHDMl1.3; 2xUSB2.0; 1xUSB3.0
Output Ports
2QxRJ45; 2x10G OPT; 7xHDMl1.3; 7x3.5mm Audio Output; 7xSPDIF; 1x Phoenix Contact Audio Output
Control Ports
1xGigabit Ethernet Port; 1xRS232; 2xSensor
Intelligent Playback Control
Remote, APP, USB Drive
Wireless Mirroring
Support Windows / iOS / Android multiple platform mirroring
Whiteboard
Support (combined with infrared frame)
Intelligent Voice Control
Support
Free Scaling
Support
Effect Adjusting
Support (Standard, Meeting, Vivid, Skin)
One-click Eye Protection
Support
Launcher Customization
Support
Boot Animation Customization
Support

TU40 Pro

LED Playback Control Processor
Tu40 Pro

Massive Loading Capacity

4K Loading capacity

2QxGigabit Ethernet ports, 13 million ultra-large loading capacity Max. Width 16384 pixels; Max. Height 8192 pixels Free wiring, no rectangle limitation

Flexible Application

Integrated playback of internal and external source

Simultaneous synchronous and asynchronous display Flexible screen combination, free arrangement Frame-level synchronization of playback, presenting excitement at will

Multiple Playback Control Methods

Intelligent Remote Control
Usb Drive Display
App Smart Control

Enhanced Image,
Renewed Sensory Experience

Al Image Enhancement

Al algorithm intelligently recognizes playback content and conducts frame-by-frame fine-tuning, comprehensively optimizing color saturation, brightness, sharpness, and dynamic compensation, recreating exceptional image quality

Ai Image Enhancement

Full-link HDR Image Quality

Wider color gamut, higher contrast, and richer details.
No overexposure in highlights, no loss of details in shadows, presenting a vivid and lifelike realistic vision.

High-end Hardware, Hardcore Performance

Powerful performance, Stable and Smooth

Built in octa-core 64-bit CPU and 4*A73+4*A53 ARM processor, maximun dominant frequency 2.2GHz.
8GB large RAM, 128GB massive storage, paired with Android 13 system, DBDM Wi-Fi 6 – ensuring long-term stable system operaion.

Arm Dynamo Led

Feature-rich, Comprehensive, and Flexible

Abundant input, output, and control ports.
It supports various peripherals to meet the needs of different scenarios such as conferences, advertising media, and exhibition halls.

Feature Rich

Practical Functions,
Applicable to Various scenarios

Shopping Malls And Advertising Media
Conference Rooms And Enterprise Exhibition Halls
Report Halls And Brand Stores

Introduction

The TU40 Pro is an LED playback control processor specially designed by Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar) for LED screen applications. It integrates the Android system, sending card and video processing functions into one unit, and allows third party apps to run on it, featuring powerful interaction, display and playback control capabilities. The TU40 Pro supports a maximum load capacity of 13 million pixels and offers convenient LED screen control via the front panel LCD or a remote control. It also supports wireless screen mirroring across multiple platforms including Windows, macOS, iOS, and Android. To cater to different application scenarios, the TU40 Pro features advanced image processing capabilities and provides 4 modes to let the document presentation, video playback and remote meetings have the optimal display effect. The TU40 Pro has no requirements of redesigning or changing the screen structure and can be mounted on the wall or placed on a surface or into a cabinet, allowing for quick environment setup and use. It is highly versatile and suitable for a broad range of applications such as corporate showrooms, conference rooms, auditoriums, and outdoor standalone LED display screens.


Certifications

CQC, SRRC, CE, FCC, IC
If the product does not have the relevant certifications required by the countries or regions where it is to be sold, please contact NovaStar to confirm or address the problem. Otherwise, the customer shall be responsible for the legal risks caused or NovaStar has the right to claim compensation.

Inputs and Output

  • 1x HDMI 1.3 input
  • 2x HDMI 2.0 inputs
  • 2x USB 2.0 inputs
  • 1x USB 3.0 input
    − For connecting a variety of USB devices such as mouse, keyboard, camera, and speaker
    − For USB playback, firmware update and exporting logs
  • 1x HDMI 1.3 output Output monitoring for device debugging
  • 20x Gigabit Ethernet outputs
  • 2x OPT outputs, for fiber converting applications
  • 4x audio outputs
    − 1x SPDIF digital audio output
    − 1x 3.5-mm audio output
    − 1x HDMI eARC audio output
    − 1x Phoenix audio output
  • Output image scaling
    − Width range: 64 to 16384 pixels
    − Height range: 64 to 8192 pixels
    − Total device load capacity ≤ 13 million pixels

System Functions

  • Android 13.0-based desktop UI system,
    supporting third-party apps
  • Screen drawing and commenting
  • Wireless screen mirroring from multiple platforms
    – Max resolution: 3840×2160@30Hz
    − Mirror from Windows, macOS, iOS and Android terminals
  • Working with ViPlex Handy to achieve reverse control
    The speaker can reversely control the LED screen via the terminal.
  • Powerful processing performance
    − Quad-core A73 + quad-core A53  ARM processor @ 2.2 GHz
    − Support high-definition video
    decoding of H.264 and H.265 at
    4K@60Hz.
    − 8 GB of onboard RAM
    − 128 GB of storage space
  • Excellent playback performance
    Supports playback of 2 streams of 4K
    video, 6 streams of 1080p video, 10
    streams of 720p video, or 20 streams of
    360p video.
  • Playback control via different terminals
    − Intelligent playback control via
    mobile app: Install ViPlex Handy on
    your smartphone for program editing
    and publishing and screen control.
    The HDMI sources can also be used
    as program content.

System Functions

  • Android 13.0-based desktop UI system,
    supporting third-party apps
  • Screen drawing and commenting
  • Wireless screen mirroring from multiple platforms
    – Max resolution: 3840×2160@30Hz
    − Mirror from Windows, macOS, iOS and Android terminals
  • Working with ViPlex Handy to achieve reverse control
    The speaker can reversely control the LED screen via the terminal.
  • Powerful processing performance
    − Quad-core A73 + quad-core A53  ARM processor @ 2.2 GHz
    − Support high-definition video
    decoding of H.264 and H.265 at
    4K@60Hz.
    − 8 GB of onboard RAM
    − 128 GB of storage space
  • Dual Wi-Fi modes
    Allow for Wi-Fi and wireless hotspot
    connections at the same time.
  • Image quality enhancement
    The display effect can be dramatically
    improved from the three dimensions of contrast, details and color. The overall
    sense of image gradation is richer and
    more delicate; the edge details are clear
    and sharp; the color is bright and vivid.
  • Excellent playback performance
    Supports playback of 2 streams of 4K
    video, 6 streams of 1080p video, 10
    streams of 720p video, or 20 streams of
    360p video.
  • Playback control via different terminals
    − Intelligent playback control via
    mobile app: Install ViPlex Handy on
    your smartphone for program editing
    and publishing and screen control.
    The HDMI sources can also be used
    as program content.
    − Convenient playback control via
    remote: Perform playback control of
    local programs and simple program
    editing on the screen.
    − USB playback: Support standalone
    playback, plug and play, copy and
    play.
  • Support for HDR10 and Image Booster
  • Effect adjustment
    Offer 4 display modes including
    standard, meeting, vivid and skin, and
    allow you to adjust the brightness, color
    temperature, saturation, contrast, etc.
  • Eye comfort mode

Device Controls

  • Gigabit Ethernet control port with
    TCP/IP protocol support
  • Low-power (less than 0.5 W) mode
    during standby, and wakeup from
    standby via infrared remote
  • A relay can be connected for convenient
    power management of LED display
  • Intelligent control via mobile app
    Download and install VNNOX Care on
    your smartphone to easily configure the
    LED screen within just 10 minutes. The
    app also allows you to scan QR codes to
    set up screens, connect and adjust the
    topology by taking photos, and monitor
    the status of your devices.
  • Control the LED screen with a remote
  • Bluetooth 5.1
    Can connect to the Bluetooth voice
    remote, Bluetooth mouse, Bluetooth
    keyboard, Bluetooth sound system and
    other common peripherals.
  • Control via front panel LCD (Touch
    control not supported)
  • Support peripherals such as camera,
    sound system and infrared touch frame.
    Please contact NovaStar technical
    support for information on supported
    peripheral device models.
Appearance
Front Panel
Front Panel
Name Description
USB 2.0
  • Support a mouse, keyboard, camera, speaker and other common USB devices.
  • Can be used for USB playback, firmware update and exporting logs.
Status LED
  • Solid red: Power off (low power consumption)
  • Solid green: Functioning normally/Standby
  • Off: No power supply
Standby button
  • Press the button to power on the device or put it on standby.
  • Hold down the button to restart the device.
LCD screen

A 2.0-inch screen that displays the device status, menus, submenus and
messages for parameter settings
Knob
  • On the home screen, press the knob to enter the main menu screen.
  • On the main menu screen, rotate the knob to select a menu item or
    adjust the parameter value. Press the knob to confirm the operation.
  • Hold down the knob and BACK button simultaneously for 5s or longer
    to lock or unlock the buttons.
BACK
Press the button to go back to the previous menu or cancel the current operation.
Rear Panel
Real

Input

Connector Qty Description
HDMI 1.3
1
  • Max resolution: 1920×1080@60Hz
  •  Custom resolutions supported
    − Max width: 3840 pixels (3840×600@60Hz).
    − Max height: 2560 pixels (800×2560@60Hz)
  •  Accepts 8-bit and 10-bit input sources.
  • HDCP 1.4 compliant
  •  Accompanied audio supported
HDMI 2.0
2
  • Max resolution: 3840×2160@60Hz
  • Custom resolutions supported
    − Max width: 8192 (8192×1080@60Hz)
    − Max height: 8192 (1080×8192@60Hz)
  • Accepts 8-bit and 10-bit input sources.
  • HDCP 1.4 and HDCP 2.2 compliant
  • Accompanied audio supported
  • eARC audio supported by HDMI 2.0-1
USB 3.0 / USB 2.
1
  •  Support a mouse, keyboard, camera, speaker and other common
    USB devices.
  • Can be used for USB playback, firmware update and exporting logs.
  • Supported image formats: *.jpg, *.jepg, *.bmp, *.png, *.gif
  • Supported video formats: *mp4, *.webm, *.mkv, *.ts, *.asf, *.m2ts,
    *.mov, *.avi, *.mts, *.m4v, *.flv, *.f4v, *.3gp, *.mpg
  • File systems supported: FAT32, NTFS; not supported: exFAT, FAT16

Output

Connector Qty Description
1–20
20

RJ45 (1Gps)
OPT 1–2
2

10G OPT outputs, for fiber converting applications
AUDIO
1

3.5-mm audio output
This audio connector supports 3-conductor headphone output but
does not support headphone input.
SPDIF
1
For digital fiber optic audio output
HDMI 1.3
1
Output monitoring for device debugging

Controls (CONTROL area)

Connector Qty Description
ETHERNET
1

Max bandwidth: 1 Gbps
Connect to an external network or control software.
WIFI 1–2
2

Connect to a Wi-Fi antenna and Bluetooth antenna.
WIFI 3
1

Connect to a Wi-Fi antenna.
SENSOR 1–2
2
Connect to light sensors or temperature and humidity sensors. Note It is recommended to use NovaStar’s light sensors or temperature and humidity sensors.
Phoenix connector (12 pins)
1

 1x L: Left channel of output audio
 1x R: Right channel of output audio
 1x GND: Grounding
 1x RX: RS232 input
 1x GND: Grounding
 1x TX: RS232 output
 1x IR-I: Infrared input
 1x IR-O: Infrared output
 1x VCC: 3.3 V power supply
 1x GND: Grounding
 1x RELAY: Relay output

Power

Connector Qty Description
100-240V~, 50/60Hz, 2.5A Max
1

An AC power input connector and switch

Dimensions

Tu40 Pro Dimenstoin
Tu40 Pro Dimenstoin2

Applications

Application Tu40 Pro

Specifications

Specification

Optional Accessories

Item Code Description Note
710010020
Wireless mirroring activation code – 4-split screen
To use the 4-split screen feature, please purchase this item separately.
710010073
Wireless mirroring activation code – 9-split screen
To use the 9-split screen feature, please purchase this item separately.
710010027
Whiteboard activation code
To use the whiteboard feature, please purchase this item separately.
W01010277
MEEXUS_Dongle_TB1304
To use the mirroring dongle, please purchase this item separately (it has a Type-C connector but can also be used with a USB port and comes with a Type-C to USB adapter included).

Media Decoding Specifications

Category Codec Max Resolution Format Note
JPEG
JPEG
8000×8000 pixels
JPG, JPEG
No support for non interlaced scan Support for SRGB JPEG Support for Adobe RGB JPEG
BMP
BMP
8000×8000 pixels
BMP
N/A
GIF
GIF
6000×4500 pixels
GIF
N/A
PNG
PNG
8000×8000 pixels
PNG
N/A

Video

Video Specification

Brand

Novastar LED

NOVASTAR LED LOGO

Related products

Instagram Facebook-f Twitter Youtube
Quick link
Awards
av awards 2024 Dynamo LED Displays
Contact
Map
map
  • Copyright Dynamo LED Displays Limited 2024
