Ultra light cabinet
- LED Ceiling Tile
- 600x600mm - 2.4KG
- Retro - Fit for replacing tiles
LED Ceiling Tiles
Sky Tiles Pro
- P3.75 - 160x160 Pixels
63mm
13mm
600mm
600mm
Sky Tiles Pro - LED Ceiling Tiles
LED ceiling tiles measure 600x600mm and is compatible with all traditional ceiling frame solutions. They can be hung anywhere on the ceiling and in any pattern desired and display video content either on each individual LED tile or as an image over multiple tiles. Fire safety tests have been conducted on Dynamo LED Tiles, which comply with all safety standards.
Size: 600 x 600 mm
Weight: 2.4kg
Pitch: 3.75 mm
Res: 160 x 160 px
Weight: 2.4kg
Pitch: 3.75 mm
Res: 160 x 160 px

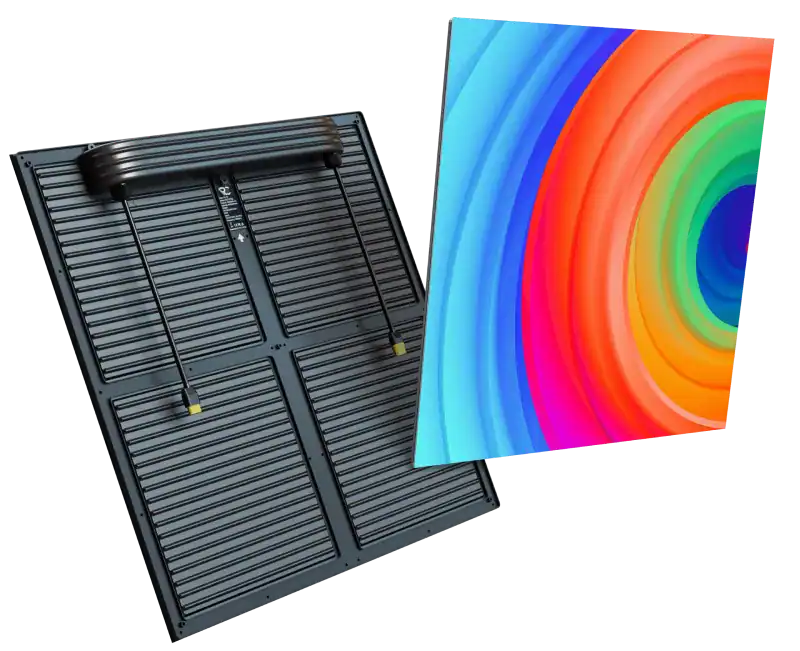

LED Ceiling Tiles - Super light cabinet
The weight of the tile is only 2.4kg
Ultra wide Angle of view
Viewing Angle H160°/ V160°
Capture every detail without color cast or image distortion, Even if viewing from the side.
LED Ceiling Tiles
You can use LED sky tiles displays as a single unit or as multiple units. For real-life LED ceiling screens, you can install more than one panel and split the overall video content between them.
Practical and Creative
LED ceiling tiles can be used on walls for
advertising and display purposes.
Plus, it can also be used to mimic
a window looking out into fields
when the room has no natural
light.
LED Ceiling Tiles High refresh rate
Conventional display screen Low frequency refresh rate
High-definition screens
Panoramic vision restores true colors
High brightness with outstanding contrast Offer you the best visual experience with our LED ceiling tiles
Conventional
display screen /
With PC-Glass Pl
Conventional
display screen /
With PC-Glass Plate
- brightness ≥500nits
- contrast ≥3000:1
Step one
Tilt the cabinet upwards with your hand
Step two
Lift the cabinet through the ceiling grid
Step three
Align position
Step four
Put the cabinet on the ceiling grid to complete installation
Easy to install
Lightweight cabinets with two simple connections and intuitive software makes these LED ceiling tiles extremely easy to install in just four simple steps.
Serial Connection for Power
Serial Connection for Signal
Mapping Software for different positions
Four simple steps to replace your ceiling
Specification Find Everything You Need
| PITCH | P3.75 |
|---|---|
|
LED Type |
SMD |
|
Density |
70756 dot/m² |
|
Module size (W x H) |
300 x 600mm |
|
Cabinet size (W x H x D) |
600 x 600 x 63mm |
|
Weight (pcs) |
2.4kg |
|
Material |
Aluminum Alloy |
|
Contrast |
≥ 3000:1 |
|
Scan mode |
1/20 Scan |
|
Brightness |
≥ 500nits |
|
Gray scale |
≥ 13bit |
|
Refresh rate |
≥ 3960Hz |
|
Viewing angle |
H 160° / V 160° |
|
Colour temperature |
6500k |
|
Maintenance |
Front |
|
IP rate |
IP43 |
|
Max Power consumption |
420W/m² |
|
Average Power consumption |
140W/m² |
|
Supply voltage |
AC 100-240V |
|
Max number of connections |
20 |
|
Signal Input |
Options |
