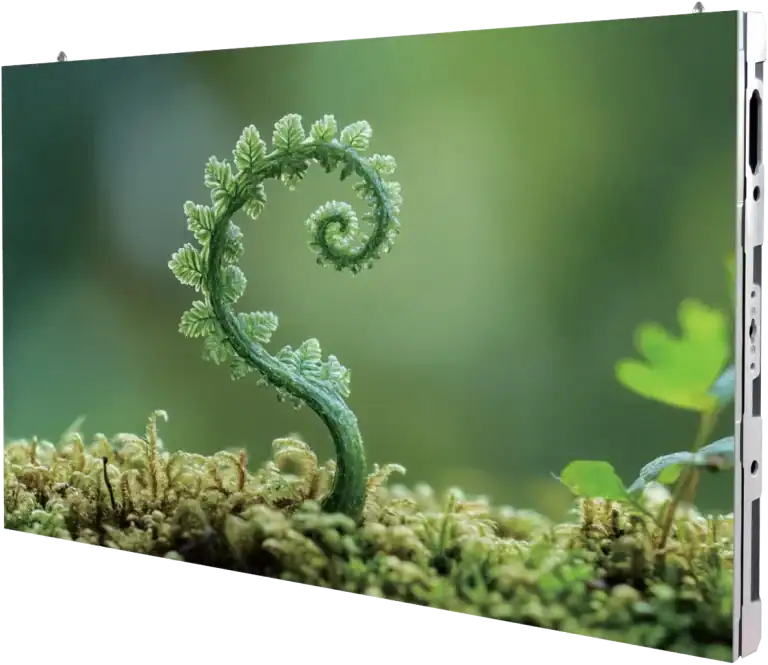

Flip Chip LED Technology: Introducing the DFC Series by Dynamo LED Displays
Revolutionising the LED Landscape
Welcome to the future of LED displays with flip chip LED technology—an innovative approach that’s set to transform the way you experience visual content. Dynamo LED Displays is proud to introduce the DFC Series, our latest range of high-performance LED displays powered by advanced flip chip technology. This state-of-the-art solution uses less power, provides an ultra-high contrast ratio of 20,000:1, and delivers exceptional colour accuracy. It also features a robust protective covering, making it the perfect choice for anyone seeking top-quality performance and reliability.

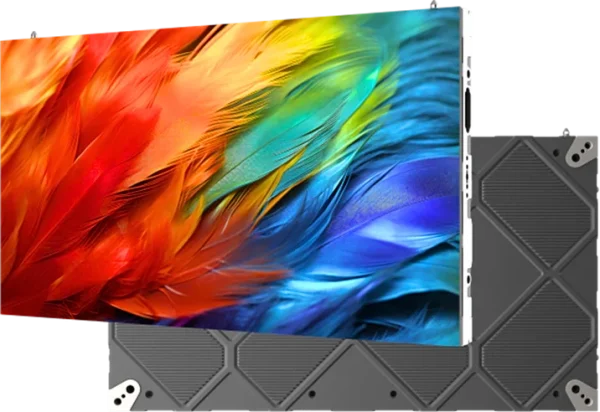

Flip chip cob product
What Is Flip Chip LED Technology?
Flip chip LED technology is a cutting-edge design that differs from traditional surface-mount devices (SMDs). Instead of wire-bonding, the LED is directly attached (or “flipped”) onto the substrate. This approach:
- Reduces Power Consumption – With shorter current paths and fewer components, flip chip LEDs operate more efficiently, lowering overall energy usage.
- Enhances Contrast – The LED chips can be placed more densely and secured with less light leakage, producing contrast levels of up to 20,000:1 for stunning on-screen clarity.
- Improves Durability – A protective layer helps shield each chip from dust, moisture, and knocks, ensuring a longer lifespan.
- Increases Heat Dissipation – Direct contact between chip and substrate allows for faster heat transfer, maintaining colour accuracy and preserving hardware performance.
By focusing on these benefits, Dynamo LED Displays has developed the DFC Series to outshine conventional SMD solutions in terms of brightness, energy efficiency, and long-term reliability.
Key Benefits of the DFC Series
Why Choose Dynamo LED Displays for Flip Chip LED
We’re not just another LED supplier. Dynamo LED Displays is known for:
Expertise and Experience
Our seasoned team has delivered countless installations in various sectors—from retail giants to cutting-edge command centres. We bring unparalleled insight to each new project, ensuring you receive a solution that truly meets your needs.Commitment to Quality
We strive to deliver the highest quality displays, backed by thorough testing and a commitment to international safety and performance standards.Competitive Pricing
While we never compromise on quality, we continually seek the best pricing options to give our clients outstanding value for money.Dedicated Customer Support
From your first query to post-installation follow-ups, our support team is with you every step of the way, ensuring your DFC Series display performs perfectly throughout its lifespan.

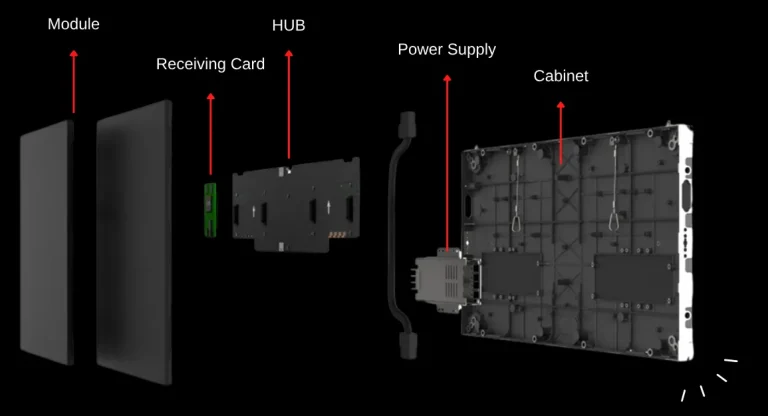

PRODUCT EXPLOSION DIAGRAM
High Contrast and Colour Accuracy
Experience deeper blacks and brighter whites with our 20,000:1 contrast ratio, while each flip chip LED guarantees consistent, vibrant colours. Perfect for environments demanding precise visuals—such as broadcasting, command centres, or any venue that relies on crystal-clear imagery.Energy-Efficient and Cost-Effective
Flip chip technology’s reduced power requirements translate to lower running costs. Whether you manage a control room or a commercial venue, you’ll appreciate the budget-friendly benefits of the DFC Series’ minimal power consumption.Protective Covering for Durability
Each DFC module features a sturdy protective layer, shielding the delicate LED chips from dust, moisture, and accidental impacts. This robust design not only keeps the display looking pristine but also extends the product’s life cycle and reduces maintenance overheads.Slim, Lightweight, and Easy to Install
Designed with a sleek form factor, the DFC Series uses a die-cast aluminium cabinet just 37mm thick. Its lightweight structure simplifies both the initial installation and any subsequent maintenance, making it a versatile choice for multiple applications—be that wall-mounted, floor-supported, or even curved installations.Versatile Cabinet Sizes and Pixel Pitches
Our DFC Series offers a range of pixel pitches, such as 1.5mm and 1.9mm, suitable for various viewing distances and resolutions. Seamlessly create large-scale displays in 2K, 4K, or 8K without sacrificing image clarity or uniformity.Comprehensive Support from Dynamo LED Displays
Leverage Dynamo LED Displays’ wealth of experience and industry knowledge. We’ve worked on countless high-profile projects worldwide and are committed to ensuring every display solution meets your exact requirements—from initial concept to final installation.

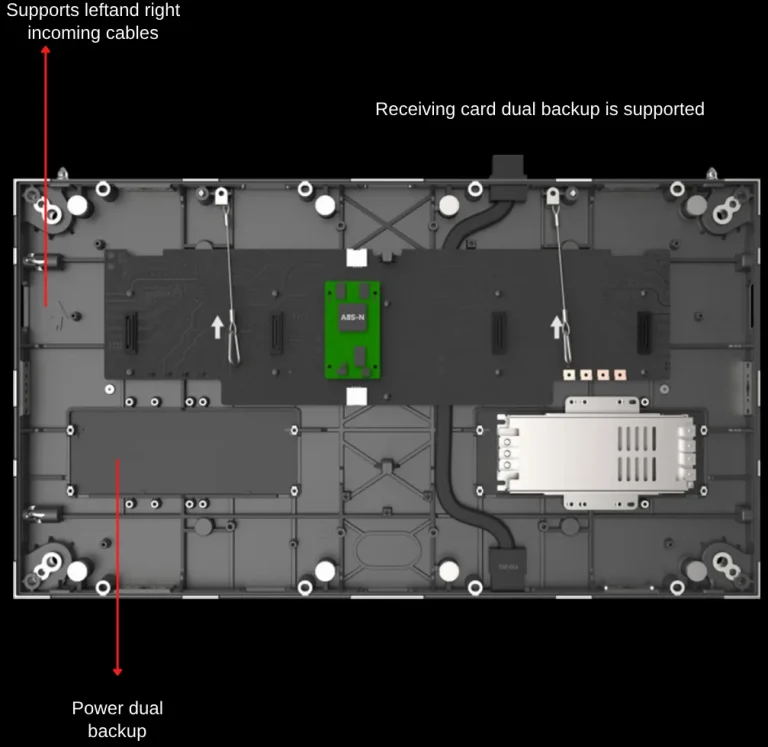

CABINET STRUCTURE
PRODUCT SPECIFICATION
| PRODUCT PARAMETER | DFC1.5 | DFC1.9 |
|---|---|---|
|
Pixel pitch |
1.58 |
1.9 |
|
LED type |
COB（ Flip chip）
|
|
|
Module size /mm |
304× 342 |
|
|
Cabinet size/mm |
304×342×37 / 608×342×37 /
608×684×40 |
|
|
Cabinet resolution/dots |
192×216 / 384×216 /
384×432 |
160×180 / 320×180 /
320×360 |
|
Material |
Die-cast aluminum |
|
|
Weight /kg |
2.8 / 5.2 /10 |
|
|
Brightness /nits |
600~1500 |
600~1000 |
|
Gray scale (bit) |
13 |
13 |
|
Refresh rate /Hz |
3840 |
3840 |
|
Maximum power
consumption/W/m² |
180/340 |
180/260 |
Why Choose Dynamo LED Displays for Flip Chip LED
We’re not just another LED supplier. Dynamo LED Displays is known for:
Expertise and Experience
Our seasoned team has delivered countless installations in various sectors—from retail giants and huge skyscrapers to the world’s busiest airports. We bring unparalleled insight to each new project, ensuring you receive a solution that truly meets your needs.Commitment to Quality
We strive to deliver the highest quality displays, backed by thorough testing and a commitment to international safety and performance standards.Competitive Pricing
While we never compromise on quality, we continually seek the best pricing options to give our clients outstanding value for money.Dedicated Customer Support
From your first query to post-installation follow-ups, our support team is with you every step of the way, ensuring your DFC Series display performs perfectly throughout its lifespan.

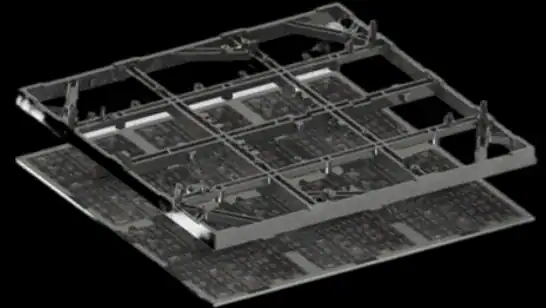

SECURITY AND STABILITY
Longer Life
Decreased contact area with the air, improves the heat conduction speed, and reduces the
failure rate of components
Low Maintenance Cost
Reduced display instability and dead pixels, reducing maintenance costs
Fear Of Collision
The reinforced metal structure is closely attached to the PCB board and is evenly stressed
by the metal frame.
Shortening Of Build Period
Faster installation, fewer magnets for a single module, faster flatness adjustment.
Colour Accuracy
Modules dissipate heat faster and display more consistent colours
Static Aesthetics
After splicing the wholebox, the surface is high and the structure is beautiful
DFC SERIES FEATURES
High Brightness
The maximum brightness can reach 1500 nits to meet the requirements of different
application scenarios.
High Reliability
Module with aluminum bottom shell for superior cooling and radiation protection.
Equipped with a safety rope for ensured security.
Perfect Display
Designed with a ratio of 16:9. Easily create 2K, 4K, 8K and so on LED screens.
Energy Saving
Power consumption is lower than that of similar products. Reduce the loss and save the resources.
Colourful
Higher colour reproduction and lossless image quality. Ultra-high contrast and high black colour consistency.
Great Protection
Waterproof, dust-proof and anti-static as well as moisture-proof, mould-proof and impact-proof.

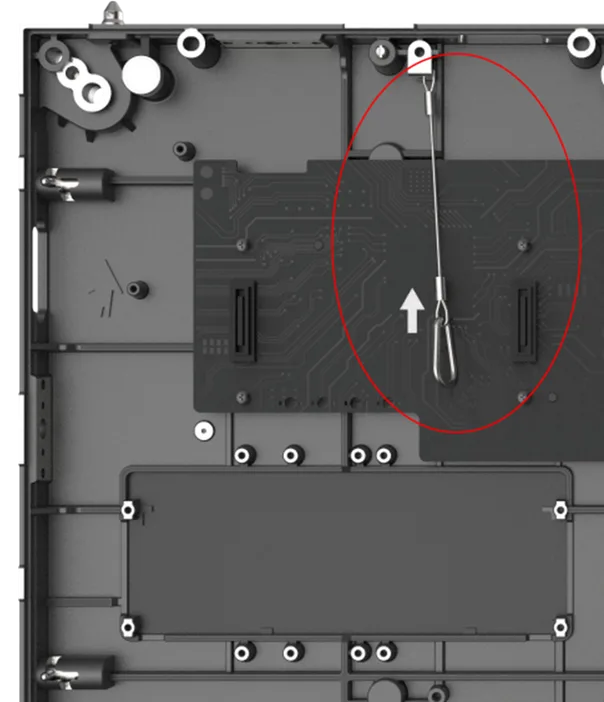

SECURITY AND STABILITY
The cabinet is equipped with safety rope to prevent the module from falling during
installation and maintenance.
High Brightness Levels
The maximum brightness can reach 1500nits (DFC1.5), 1000nits (DFC1.9) to meet the
requirements of different application scenarios
HIGH EFFICIENCY AND ENERGY SAVING
WITH THE SAME BRIGHTNESS, ENERGY CONSUMPTION CAN BE SAVED BY ABOUT 50% COMPARED WITH OTHER PEER PRODUCTS.
INSTALLATION AND
MAINTENANCE INSTRUCTIONS
MULTIPLE INSTALLATION
Wall mounting
Floor support mounting
Arcmounting

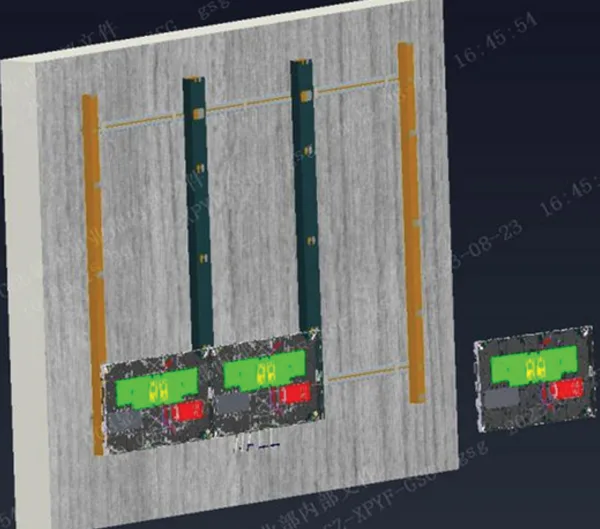

WALL-MOUNTED INSTALLATION DIAGRAM

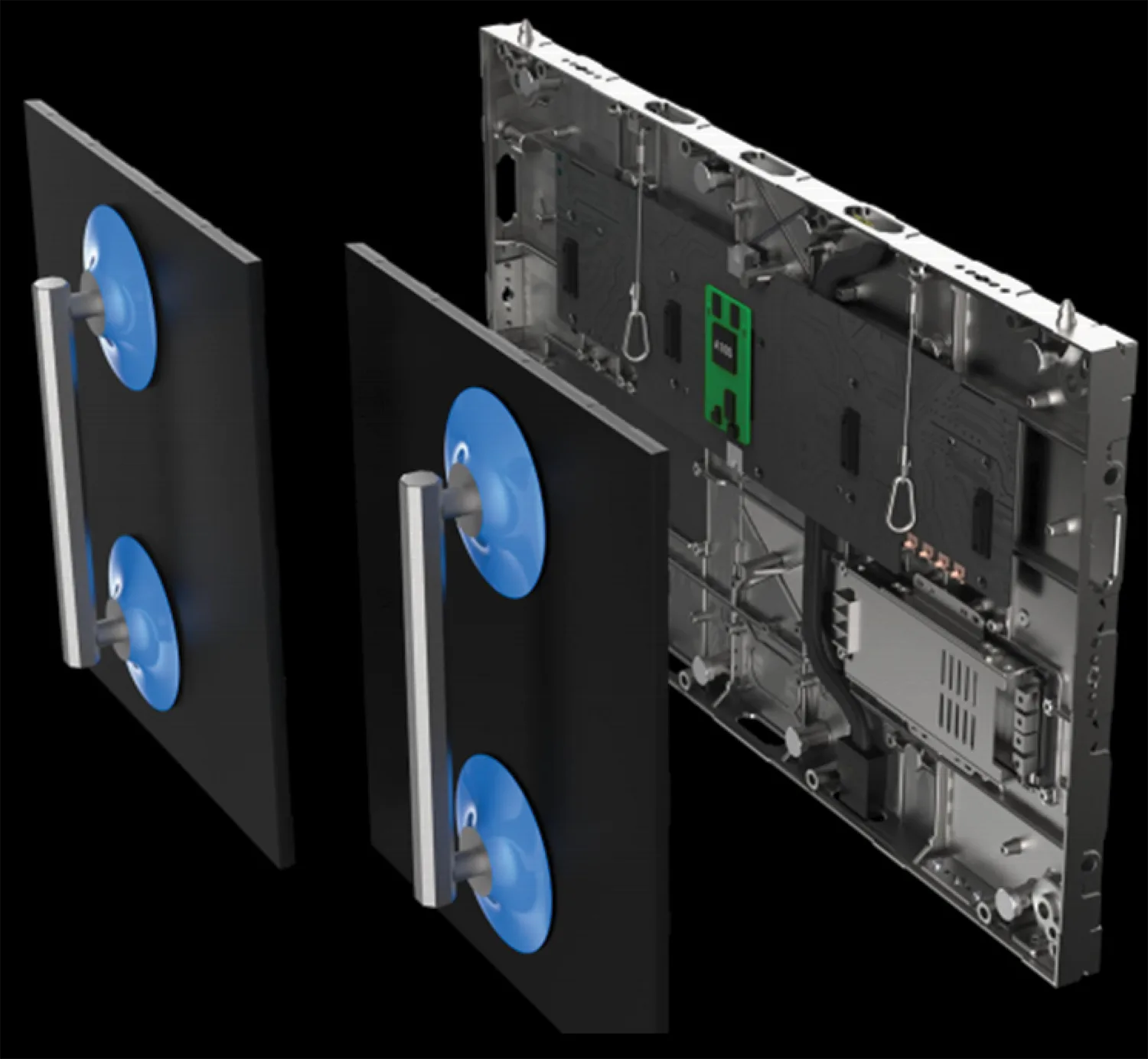

FULL FRONT MAINTENANCE
Full front-end maintenance: including module, power supply and receiving card
Applications for the DFC Series
Retail and Shopping Centres:
Attract attention with vibrant signage that stands out from the crowd.
Corporate and Conference Rooms:
Elevate presentations or video conferences with pin-sharp visuals and excellent contrast.
Broadcast Studios and Control Rooms:
Ensure accuracy and reliability in demanding, around-the-clock operations.
Museums, Galleries, and Exhibitions:
Provide immersive, visually striking exhibits that captivate audiences.
Houses of Worship:
Engage congregations with easy-to-read text, live video streams, and crisp imagery.
CONFERENCE CENTER

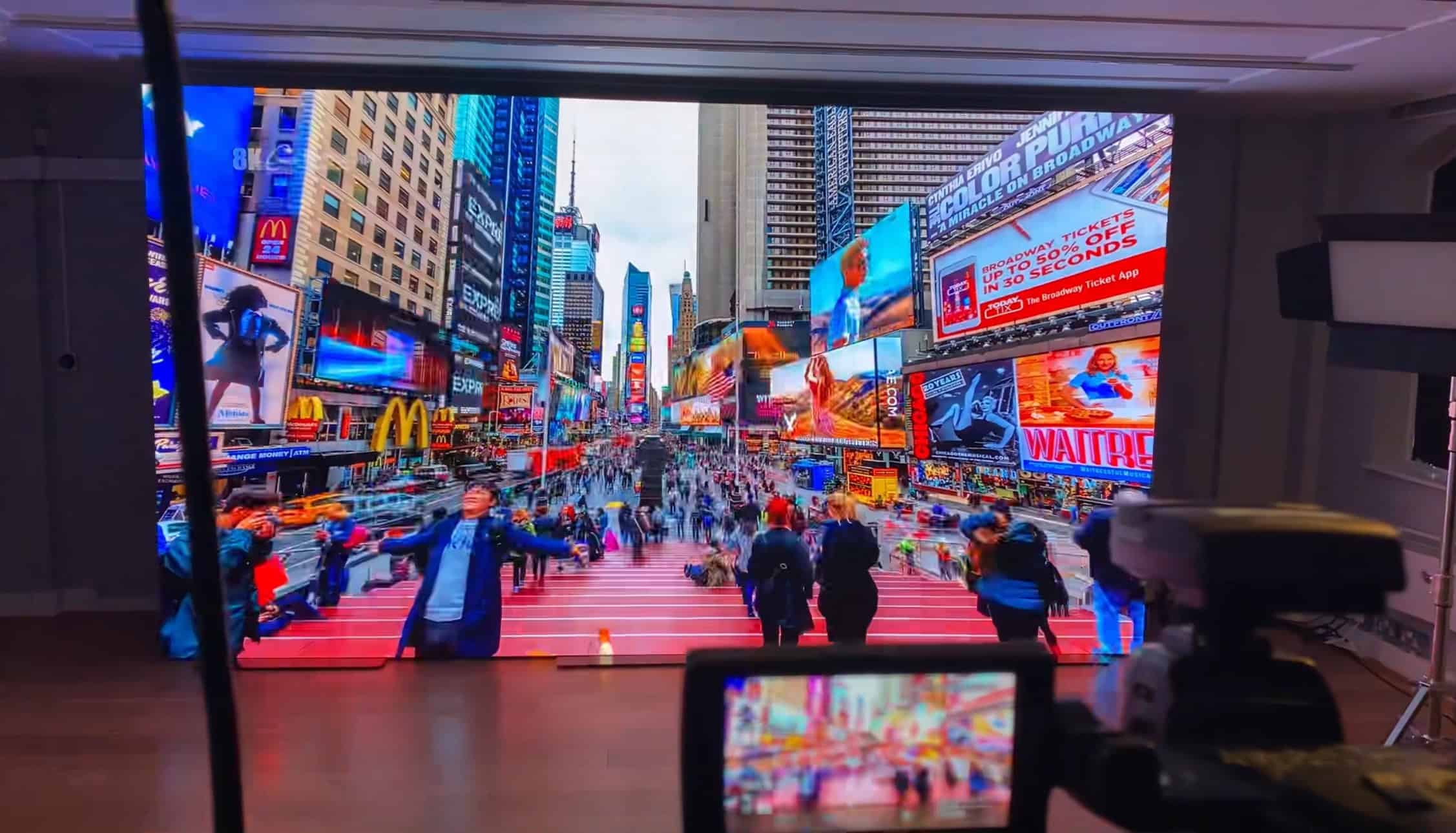

STUDIO
Applications for the DFC Series
Ready to Upgrade to Flip Chip LED?
We’d love to explore your specific requirements for a new flip chip LED display solution. Whether you need extra details on module sizes, brightness levels, or energy consumption, our expert team is here to help. Get in touch today for:
- Tailored Proposals and Pricing
- Technical Specifications
- Project Timelines and Installation Guides
- References to Completed Projects
We look forward to helping you harness the power of flip chip LED technology with our exceptional DFC Series—engineered to deliver unmatched energy efficiency, breathtaking contrast, and outstanding durability. Experience the difference Dynamo LED Displays can make today!.
Thank you for considering Dynamo LED Displays for your next LED project—we’re confident our expertise, dedication to quality, and competitive pricing will make all the difference in bringing your vision to life.
