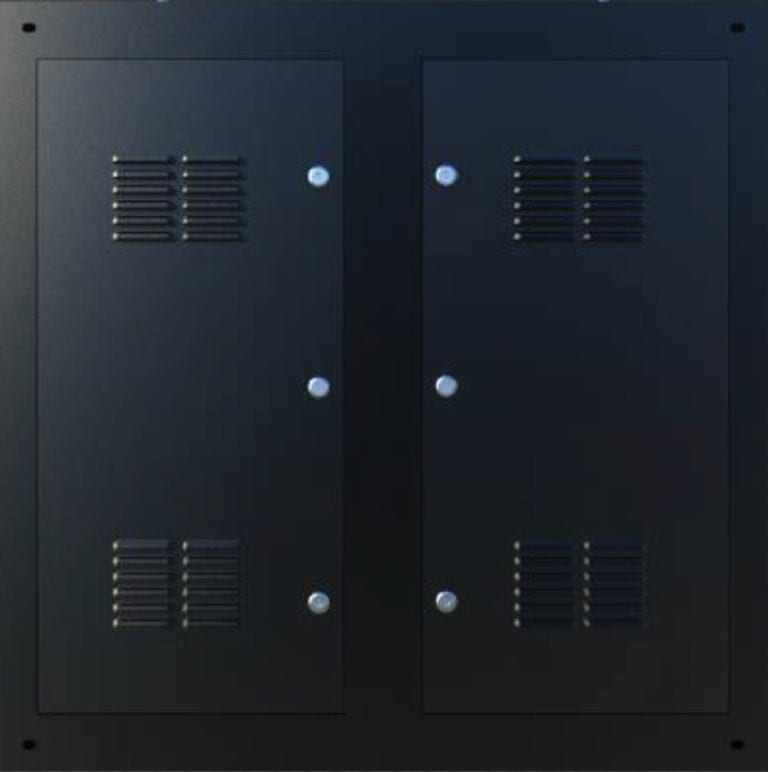

All-in-one Solution
P1.93
- 55/62mm Frame compatible
- S-lock optional for safety maintenance
- Front / Rear Maintenance
- Diecasting aluminum
- Backlight Strip
- SEG/ Cover Plate
- Tray Function
Specification
| PITCH | PI.93 |
|---|---|
| Series | REI93d |
| SMD mode (cd/m²) | >3500 |
| Distance | >1.93m |
| LED kind | MicroX |
| PROTECTION | X-GOV |
| Pixel Density ( dots/m²) | 268324 |
| TECHNOLOGY | MicroX |
| REFRESH RATE | 1920Hz-3840Hz |
| Viewing Angle | 160°(H) | 160°-(V) |
| CONTRAST | 6000:1 |
| MODULE SIZE | 248 x 248 mm |
| CABINET SIZE | 496 x 496 x 55 mm / 62 mm 19.5″ x 19.5″ x 2.2″ / 2.4″ |
| CABINET RES (px) | 256 x 256 |
| SYSTEM | Stacking / Hanging / Stitching |
| DRIVE MODE (Scan) | 1/32 |
| ENVIRONMENT | 1/24 |
| MAX POWER (w/m²) | (CCT) 600 |
| VOLTAGE | AC 100-240V |
| WEIGHT | 9.2kg/Panel (No extensions) |
| CERTIFICATION | CE, EMC,TUV-EMMC,FCC, ETL, UL,PSE, CCC, RoHS |
SIDE DETAIL VIEW
- Profile Hole Connect with our profile extensions
- M8 Screw hole Connect with 62mm Frame system
- M6 Screw hole Connect with 55mm Frame system
55mm Frame
Connect M6
TOP DETAIL VIEW
55mm Frame
connect M6
- M6 Screw Hole Connect with 55mm frame system
- Direct cabinet lock Connect cabinet by M6 Screw instead of using side lock
Side lock
- 10° ,7.5°,5 °,2.5 °,0 °
- Side lock
Maintenance
Frame Control box
FRONT MAINTENANCE
496 Corner
REAR MAINTENANCE
STACKING SYSTEM
HANGING SYSTEM
- Hanging bar
Floor System
Robust enough to
bear cars
Accurately position
the cabinet
90° connection
Make your corner & cube
90 DEGREE
90° connection cabinets cut
45° In the left or right side of
your cabinet and then can't
connect with normal cabinet
from that side anymore.
CORNER FILLER
Corner Filler Left
Corner Filler Right
Use corner filler to turn 90 degree
cabinet into normal cabinet
SAFETY LOCK
AD JUST THICKNESS
Adjust thickness by adding shims
behind 496 Corner to match the
different thickness frame
6 CORNER
Switch screw hole
496x496mm size
Frame cant connect like this
Connect to 62mmm Frame, Switch pin To ’62’ and Use M8
Connect to 62mmm Frame, Switch pin To ’62’ and Use M8
Backlight Strip
TV Backlight Led Strip Attach to 496 corner magnet
Combine with light in power box
SEG SLOT
Use customisable cloth
to cover the back
Cover plate
Cover plate extension
Attach to 496 corner magnet
DRE can be combined with display tray and hook to give the screen a new display form, so that it can be integrated with the media broadcast, optimising the effect of the LED display.
VESA MOUNT
Combine with monitor
arm to create a tree
No need to worry about weight, standard mounts are sufficient.
Lox Driver
Use another lox as a handle save effort.
One multipurpose.
Square profile used to 90° connect three or more cabinets/frames
PROFILES
One-quarter round profile used to 90° connect two cabinets/frames
Diecasting
Module
Diecasting
Module
Diecasting
Module
