DRE Series LED Video Walls – Installed UK
Two turnkey sizes. Four mm precision pixel pitches. NovaStar processing, CMS and professional installation anywhere in the UK.
Dynamo’s DRE Series delivers premium indoor LED video walls with X‑GOB anti‑collision resin, true‑black high contrast and front service engineering. Choose 2.976 × 1.984 m (6×4 of 496 mm) or 4.96 × 2.48 m (10×5 of 496 mm) in 1.29, 1.55, 1.93 or 2.58 mm pitches, supplied with the right NovaStar processor, a pre‑configured media player with Dynamo CMS (cloud or local) and a full UK installation.
Why choose Dynamo’s DRE Series
- X‑GOB resin protection for a smooth, impact‑resistant face that looks premium and resists knocks on busy stands.
- High contrast, high refresh (>800–1000 nits, 1920–3840 Hz) for vibrant colour and camera‑friendly playback.
- Front‑service, die‑cast 496 mm cabinets for fast maintenance and perfect flatness.
- Stand‑system friendly: fixes directly to beMatrix / Aluvision style frames (55/62 mm), reducing sub‑structure and build time.
- Dynamo CMS included: manage content in the cloud or locally with scheduling, playlists and simple handover.
Two turnkey sizes, four pixel pitches
2.976 m × 1.984 m (6×4 of 496 mm)
- 1.29 mm (often called 1.2 mm): 2304 × 1536 px
- 1.55 mm (1.5 mm): 1920 × 1280 px
- 1.93 mm (1.9 mm): 1536 × 1024 px
- 2.58 mm (2.5 mm): 1152 × 768 px
4.96 m × 2.48 m (10×5 of 496 mm)
- 1.29 mm: 3840 × 1920 px
- 1.55 mm: 3200 × 1600 px
- 1.93 mm: 2560 × 1280 px
- 2.58 mm: 1920 × 960 px
What’s included
- NovaStar video processor sized to the pixel load (VX600 / VX1000 / NovaPro UHD Jr).
- Media player + Dynamo CMS (cloud or local) pre‑configured for your playlists and schedule.
- Professional installation anywhere in the UK plus onsite training handover.
- 3‑Year RTB warranty as standard. Optional full‑service contract (24–48 hour response) on request.
Technical specifications
| Cabinet size | 496 × 496 mm (die‑cast) |
|---|---|
| Per‑cabinet resolution | 1.29 mm: 384×384 | 1.55 mm: 320×320 | 1.93 mm: 256×256 | 2.58 mm: 192×192 |
| Brightness | >800–1000 nits (indoor) |
| Refresh rate | 1920–3840 Hz |
| Max power | 600 W/m² (design to max) |
| Voltage | AC 100–240 V |
| Controller | NovaStar VX600 / VX1000 / NovaPro UHD Jr (matched to pixel load) |
| CMS | Dynamo CMS (cloud or local) |
Power & weight planning
| 2.976 × 1.984 m | ≈3.54 kW max | ≈18 A @230 V (+15%) | 24 cabinets | ≈221 kg screen mass |
|---|---|
| 4.96 × 2.48 m | ≈7.38 kW max | ≈37 A @230 V (+15%) | 50 cabinets | ≈460 kg screen mass |
FAQs
Which NovaStar processor will be supplied?
We size the processor to the exact pixel load. VX600 is suitable up to ~3.9 million pixels, VX1000 to ~6.5 million, and NovaPro UHD Jr to ~10.4 million for the highest‑resolution option.
Can I use cloud or local content control?
Yes. Dynamo CMS supports both cloud and local workflows. We pre‑configure the media player to your preference.
Is the DRE compatible with beMatrix/Aluvision?
Yes, the DRE mounts cleanly to beMatrix and Aluvision style frames (55/62 mm), streamlining stand builds.
How do you calculate power?
We multiply the product’s max power per square metre (600 W/m²) by the screen area, then plan current at 230 V with a 15% headroom.
What warranty and support are included?
A 3‑Year RTB warranty is standard. Optional service contracts with 24–48 hour response are available on request.

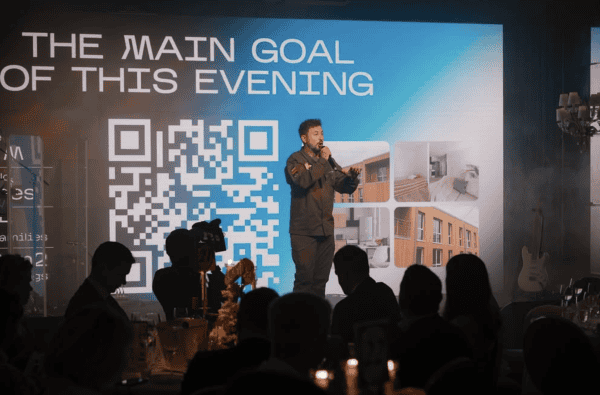

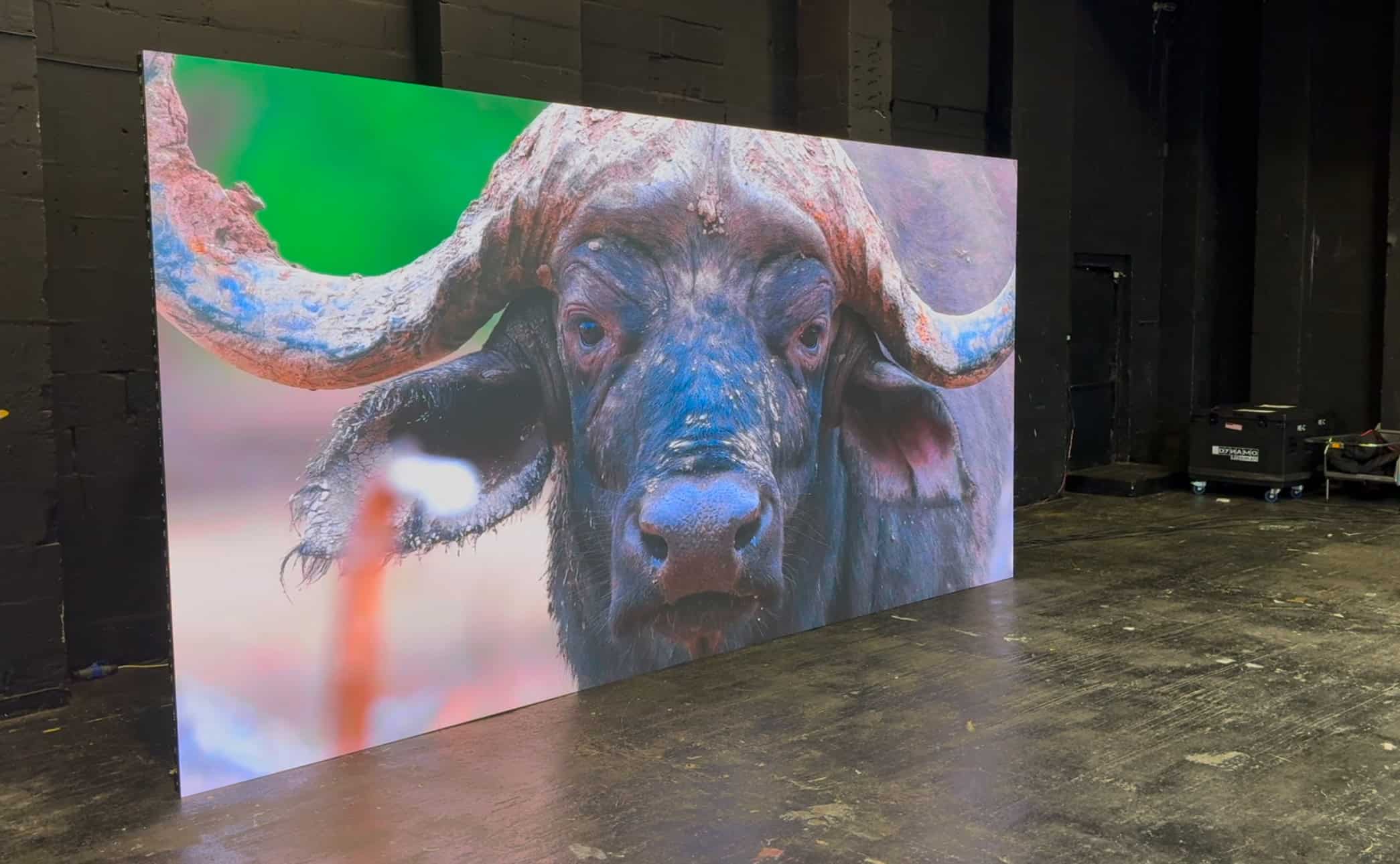

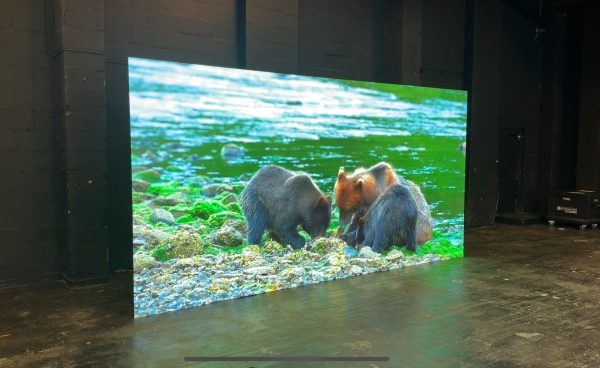

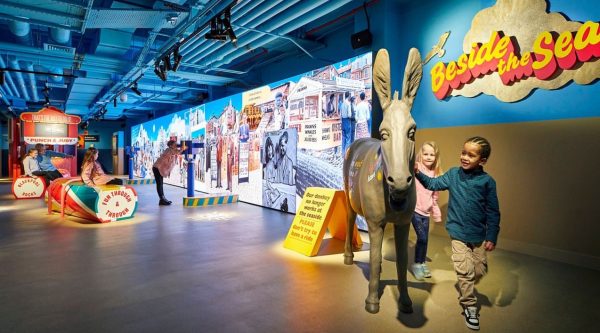

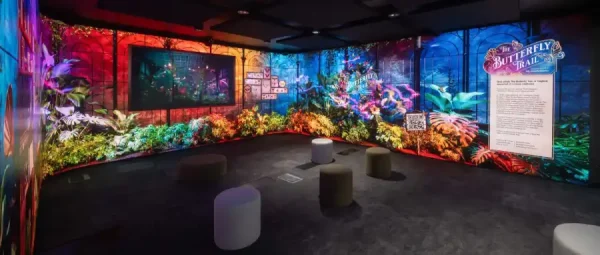

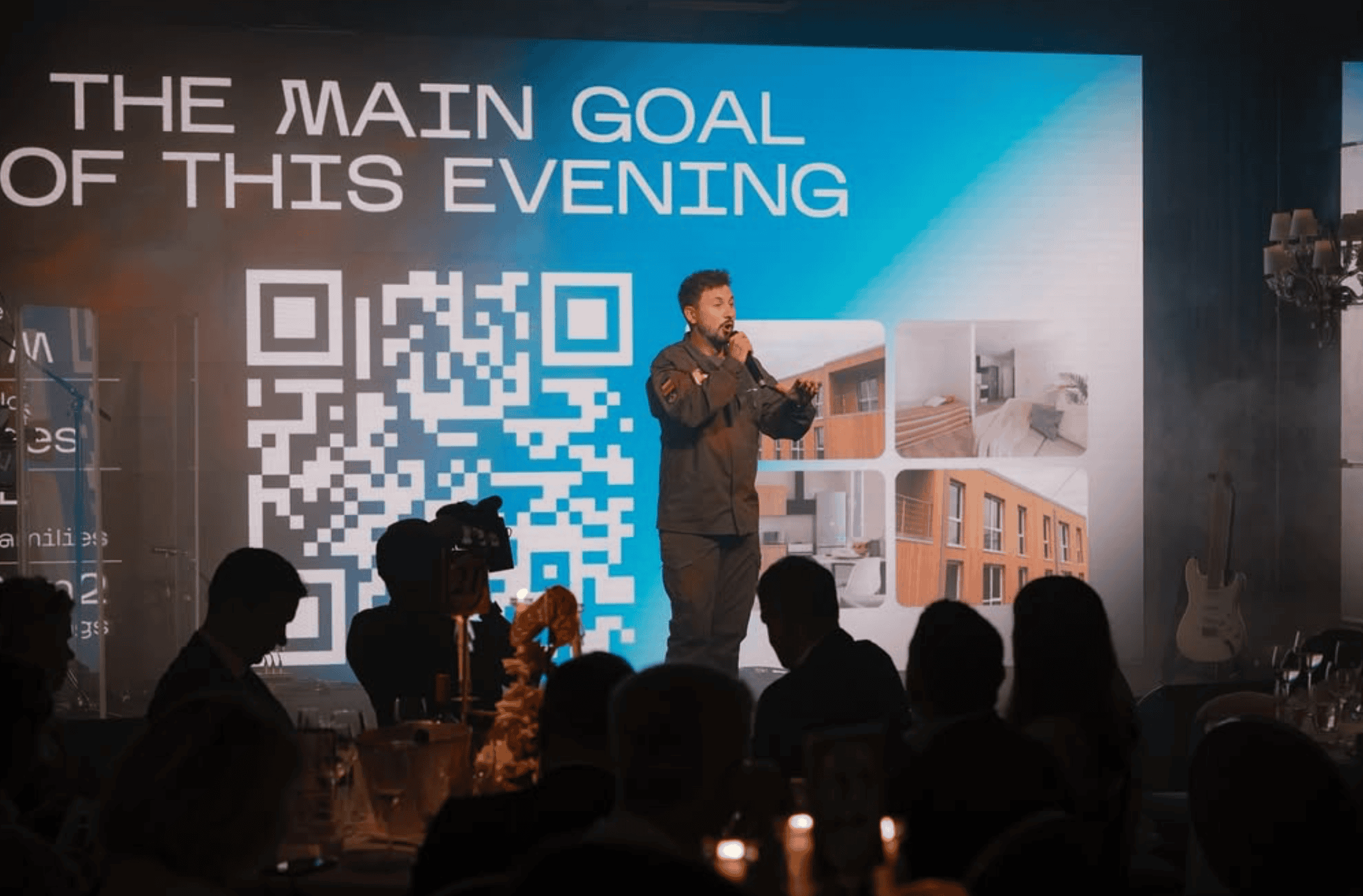

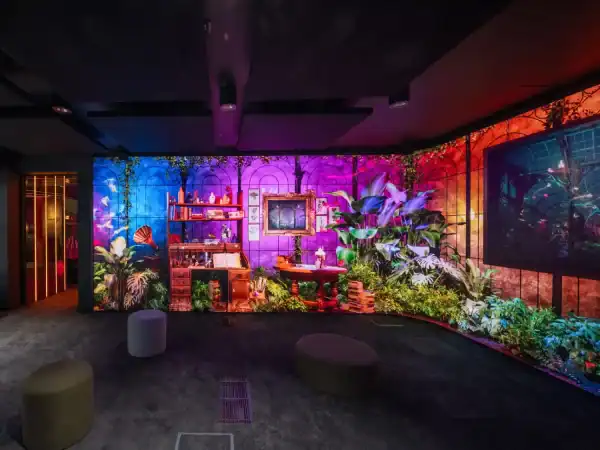

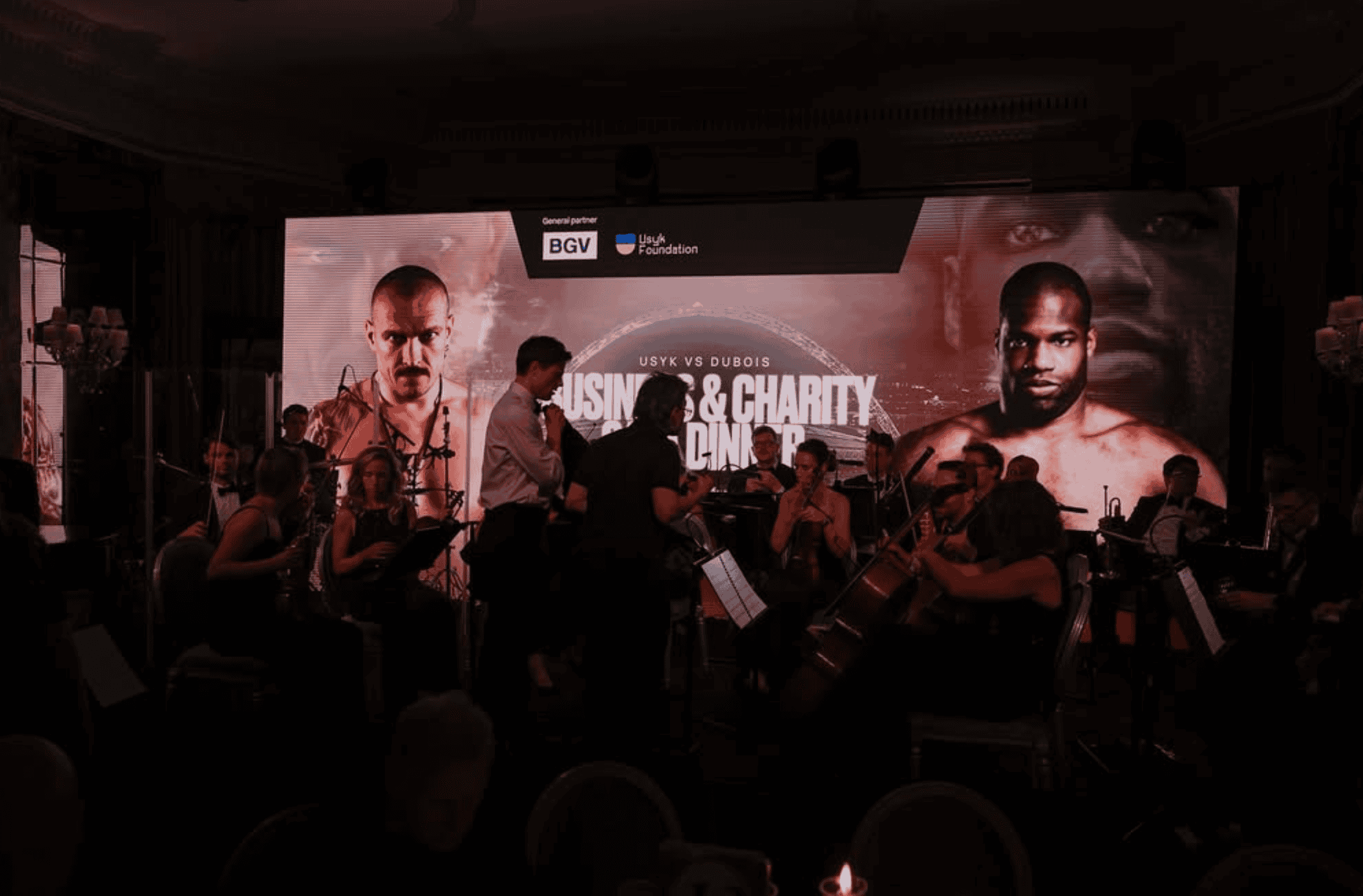

Would you like a formal quotation or images of similar projects we’ve completed? Our team has delivered LED across some of the UK’s most prestigious venues and brands. Contact us to get started.
