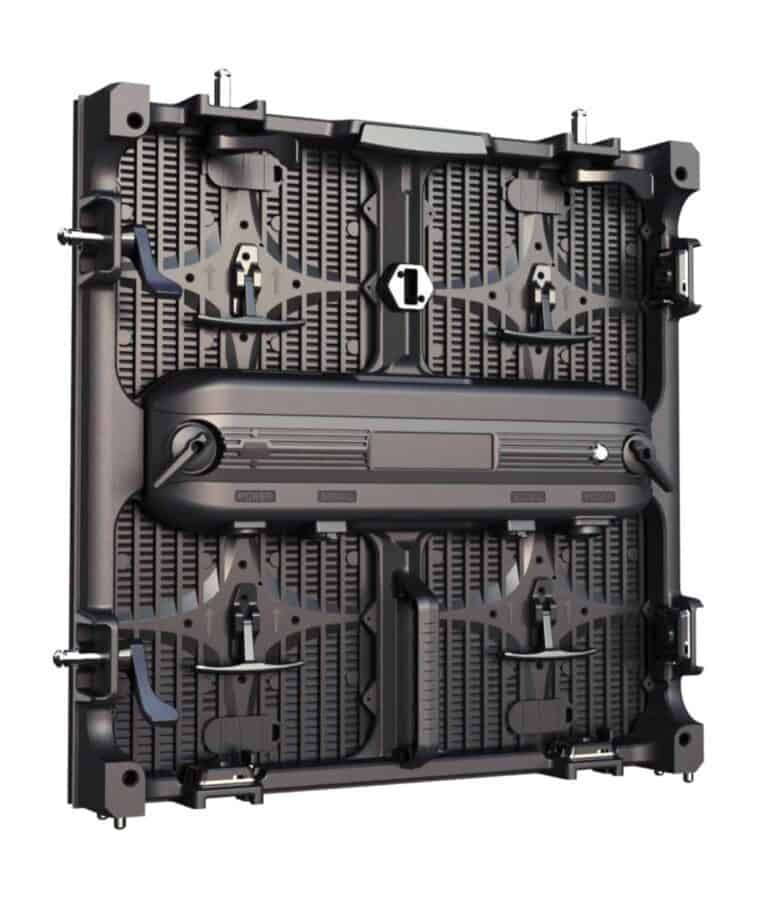

Outdoor LED Rental Cabinet SMD (RGB) with P4.8mm pixel pitch
The Dynamo DR Outdoor LED Rental cabinet has a simple yet effective industrial design whose characteristics include fast installation, assured flatness and extremely reliable gap control. The Dynamo DR series focuses on reliable and accurate installations as well as high-definition images, dynamic animation effects and vivid video playback.
IP65 Outdoor LED Cabinet
Our outdoor LED rental cabinets are IP65 rated on the front and IP54 on the rear and with a working condition humidity between 10%-90% fantastic visuals are guaranteed in all weather conditions and climates.
Hanging LED Cabinet
Specifications:
|
Parameter |
DR 3.9S |
DR 4.8S |
|
|
Physical
Parameter
|
Pixel Configuration |
SMD1921 |
SMD1921/2525 |
|
Pixel Pitch （mm） |
3.9 |
4.8 |
|
|
Pixel matrix per panel |
128×128 / 128×256 |
104×104 / 104×208 |
|
|
Pixel density（pixels/sq.m.） |
65536 |
43264 |
|
|
Cabinet Dimensions (LxWxH)/（mm） |
500*500*85 / 500*1000*85 |
500*500*85 / 500*1000*85 |
|
|
Module Dimensions (LxWxH)/（mm） |
250*500*16 |
250*500*16 |
|
|
Panel material |
Die Casting Aluminum |
Die Casting Aluminum |
|
|
Cabinet weight (kg/panel) |
8/12 Kg |
8/12 Kg |
|
|
Module weight (kg/panel) |
1.25 |
1.25 |
|
|
Electronic
Parameter
|
Colour Grayscale (Bit) |
14 bit |
14 bit |
|
Gray Scale per Colour （level) |
16384 |
16384 |
|
|
Refresh Rate（Hz） |
1920-3840 |
1920-3840 |
|
|
Driving Type |
1/16 |
1/13 |
|
|
Signal Transmission Distance （m） |
CAT5 cable:＜100 m; |
CAT5 cable:＜100 m; |
|
|
Optical
Parameter
|
Brightness（nit） |
5000 |
5000 |
|
Optimal Horizontal Viewing Angle（°） |
160 |
160 |
|
|
Optimal Vertical Viewing Angle（°） |
140 |
140 |
|
|
Electrical
Parameter
|
AC Input Voltage（V） |
AC: 100V～240V |
AC: 100V～240V |
|
AC Input Power Maximum Value（W/m²） |
690 |
611 |
|
|
AC Input Power Typical Value（W/m²） |
230 |
203 |
|
|
Circumstance Parameter |
Storage Temperature（℃） |
-40 -60 |
-40 -60 |
|
Working Temperature (℃) |
-30~50 |
-30~50 |
|
|
IP rating (Front/Rear) |
IP65/IP54 |
IP65/IP54 |
|
|
Storage Humidity (RH) |
10%~90% non-condensing |
10%~90% non-condensing |
|
|
Working Humidity (RH) |
10%~90% non-condensing |
10%~90% non-condensing |
|
|
Lifetime Typical Value（hrs） |
≥100000 |
≥100000 |
|
|
Installation Type |
Cabinet installation type |
Rental |
Rental |
| Vertical lifting limit ( cabinets pcs ) | 20 | 20 | |
