3D ROBOTIC LED SCREEN CAMEL SERIES -KINETIC LED
Inspired by the strength and adaptability of camels, the Kinetic Camel Series combines
kinetic technology with flexible design. Each panel is highly flexible, easy to adjust to meet different needs. Like camels carrying heavy loads, these panels are durable, able to withstand frequent setup and teardown while maintaining high-quality visuals.
With a modular design, the Kinetic Camel Series is easy to expand, making it a perfect choice for rental companies and businesses needing flexible display solutions.

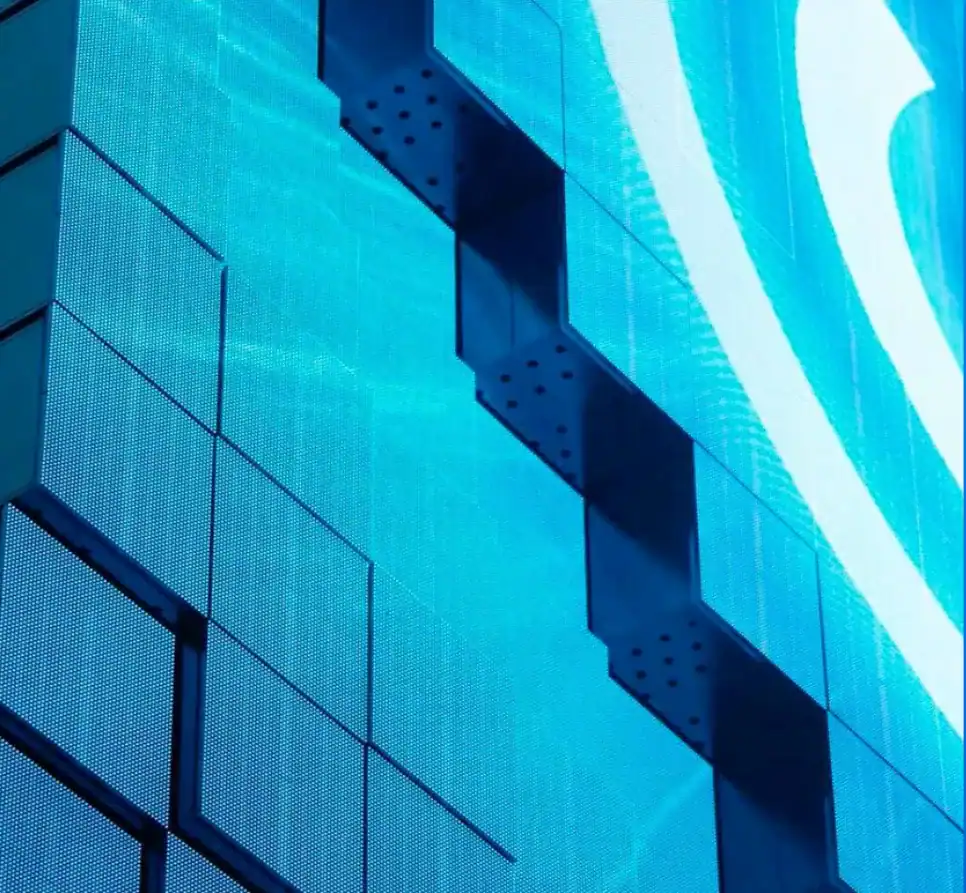

3D EXPERIENCE
A huge customised LED wall made of hundreds of LED modules controls controlled by a mechanical unit.
The units to slide forward then back according to the video content.
The user is able to make infinite creative designs to present an excellent 3D visual effect.
PRODUCT SPECIFICATION
| Pitch | P1.5625 | P1.945 | P2.604 | P3.91 |
|---|---|---|---|---|
|
LED Module Dimension(mm) |
248.5×248.5
|
|||
|
Gap between Units(mm) |
1.5(1.0~2.0)
|
|||
|
Motion Unit Dimension(mm) |
248.5×248.5 (0.0618m²) |
|||
|
Resolution of Unit |
160×160 |
128×128 |
96×96 |
64×64 |
|
Cabinet Dimension(Motion Units Qty) |
500×500 (2×2) |
|||
|
Cabinet Thickness(Standby mode)(mm) |
320 |
|||
|
Max. Forward Stroke(mm) |
200 |
|||
|
Max. Forward Speed(mm/s) Min. |
500 |
|||
|
MotionQty per Sqm |
0.5 |
|||
|
Min. Forward-back Cycle Time(s) |
16 |
|||
|
Weight per Sqm(Kg/m²) |
12 |
|||
|
Max. Power Capacity(w/m²) |
720 |
|||
|
Power Supply Requirement Screen |
≥3KW:220V Single phase; ≥3KW:380V Three phases/Five wires ≥600 |
|||
|
Screen Brightness(cd/m²) |
≥600 |
|||
|
Ambient Temperature(℃) |
0〜40℃ |
|||
|
Environmental Attentions |
Indoor, No etchant gas, No inflammable gas, No oiled mist and dust
|
|||
|
Heat Dissipation |
Open self-cooling (with fan cooling) |
|||
PRODUCT SPECIFICATION
Why Choose Dynamo LED Displays for Robotic LED
We’re not just another LED supplier. Dynamo LED Displays is known for:
Expertise and Experience
Our seasoned team has delivered countless installations in various sectors—from retail giants to cutting-edge command centres. We bring unparalleled insight to each new project, ensuring you receive a solution that truly meets your needs.Commitment to Quality
We strive to deliver the highest quality displays, backed by thorough testing and a commitment to international safety and performance standards.Competitive Pricing
While we never compromise on quality, we continually seek the best pricing options to give our clients outstanding value for money.Dedicated Customer Support
From your first query to post-installation follow-ups, our support team is with you every step of the way, ensuring your robotic display performs perfectly throughout its lifespan.

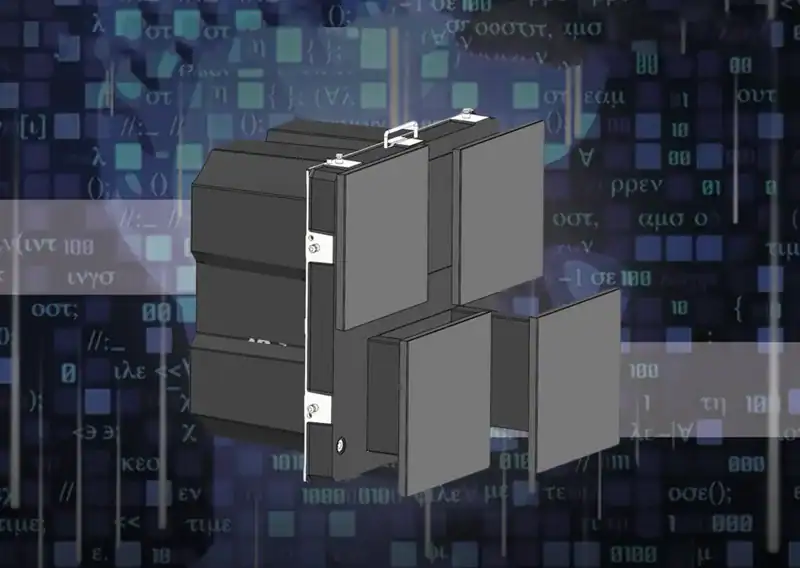

PRODUCT INTRODUCTION

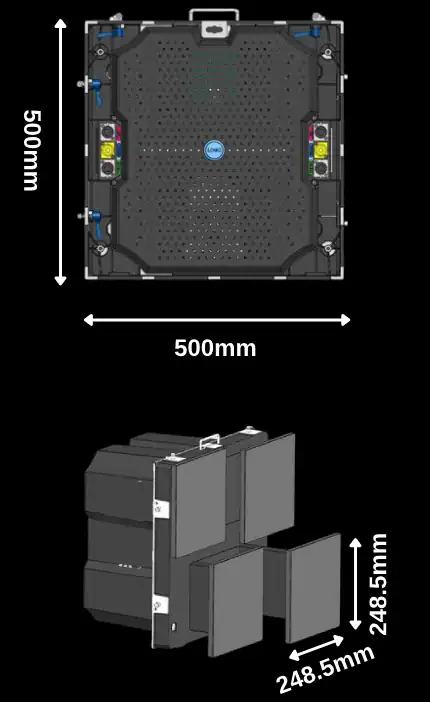

Motion Unit Size 248.5×248.5 (0.0618m²)
Cabinet Size(Motion Units Qty) 500 x 500 mm (2×2)
Weight Per Sqm 12kg
Easy Installation
Independent Software
FEATURES
- Gap between Units of Indoor 250-I is ≤1.5mm the precise sliding
- Structure design and the extremely fine gap between the screens means more complete and clear content.
- More realistic 3D visual effect
Precision Machining Technology
- More than 90% of mechanical parts are precision processed. Industrial linear guides ensure accurate operation.
MAX. NOISE VALUE 55DB(A)
Noise reduction design.
Keep the indoor environment quiet during operation.

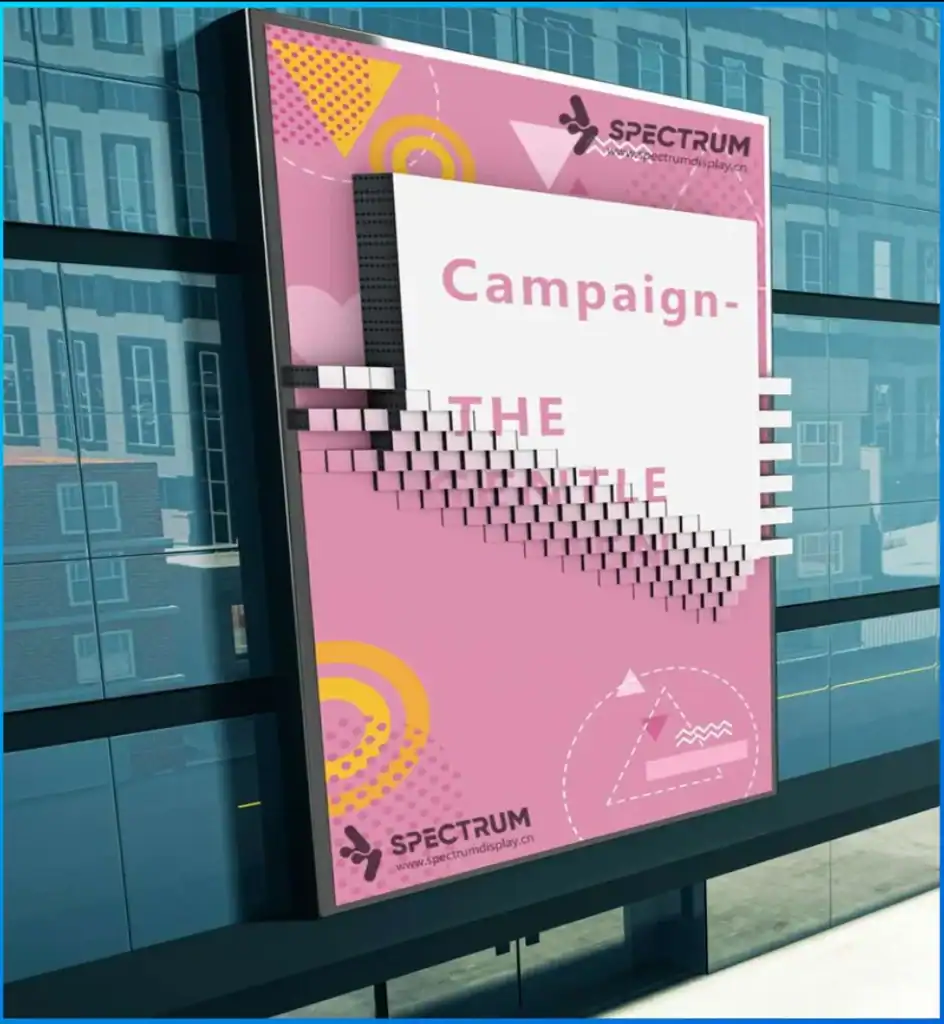

PERFECT PERFORMANCE OF STATIC AND DYNAMIC IMAGES

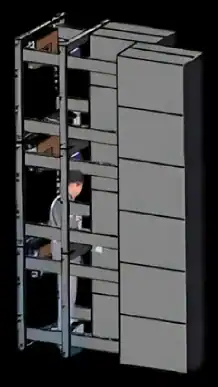

CONVENIENT MAINTENANCE
Maintainance Steps

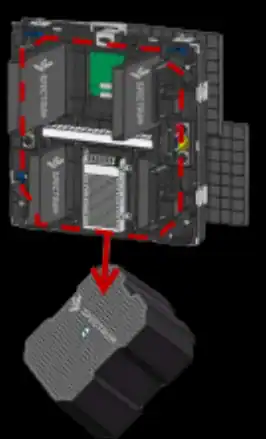

(A) Open the back cover to repair the entire circuit, receiving card, and power supply

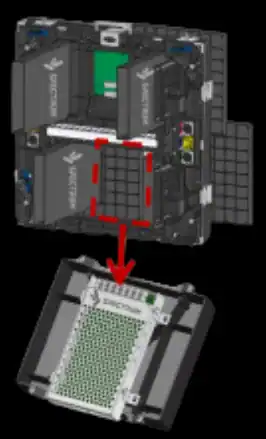

(B) Removed the power supply mounting plate, revealing a large hole.

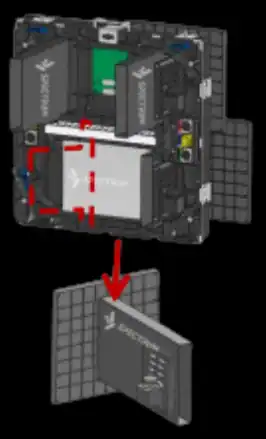

(C) The entire motion unit can be removed, and then the motion mechanism and modules can be repaired.

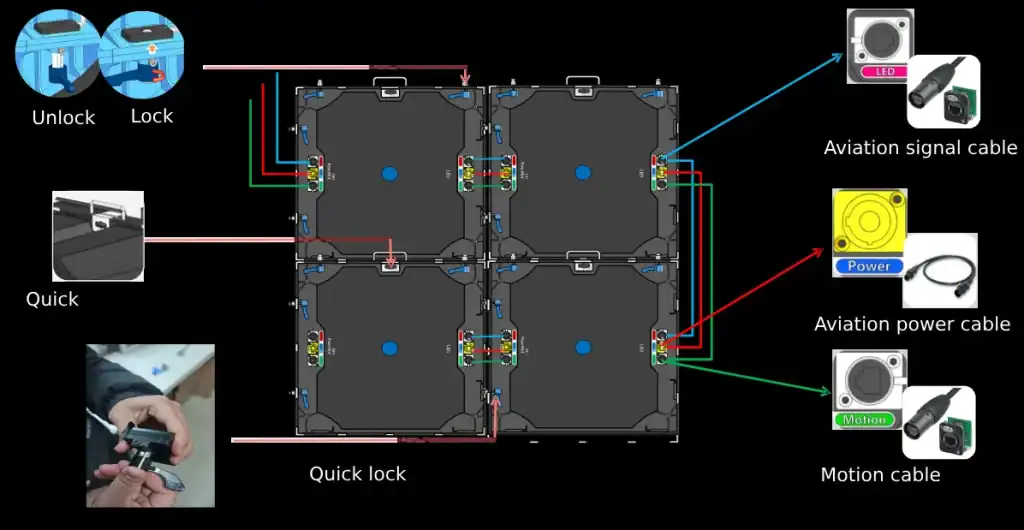

SUITABLE FOR RENTAL SCENARIOS
STRUCTURE INTRODUCTION

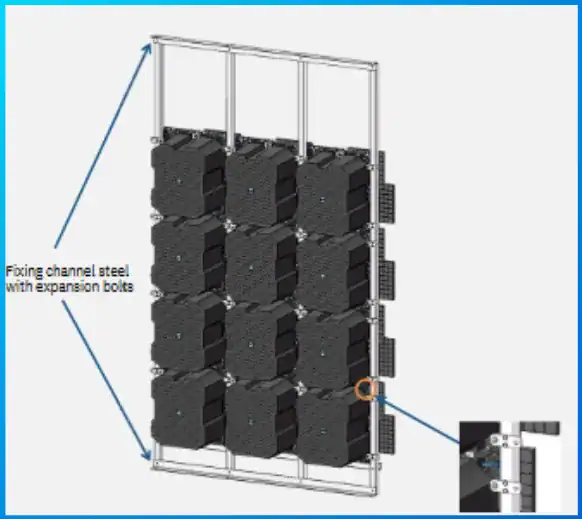

Fixed to ceiling Structure
Stacking Structure

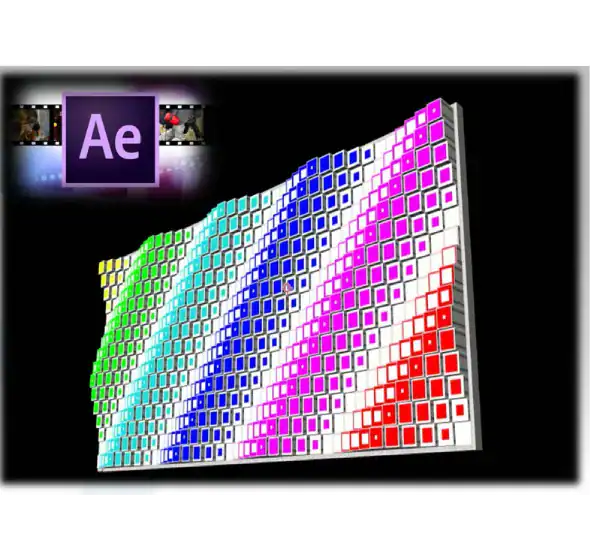

PROFESSIONAL SUPPORTING SOFTWARE
- Specifically designed digital content editing software for the screen
- Simplifies the production process of movies and actions
- Create a 3D, game like creative output

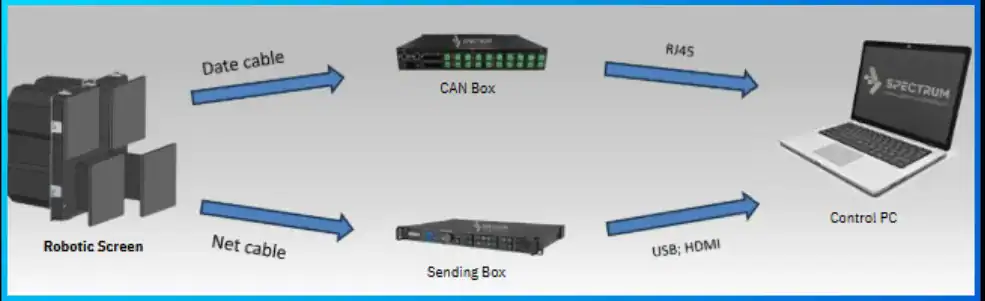

CONNECTION DIAGRAM
APPLICATION SCENARIOS

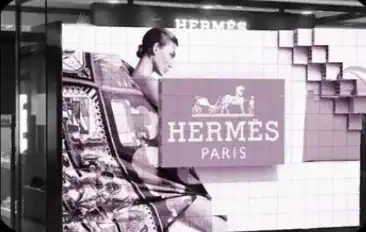

Shopping Mall

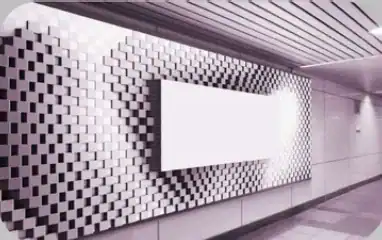

Metro Station

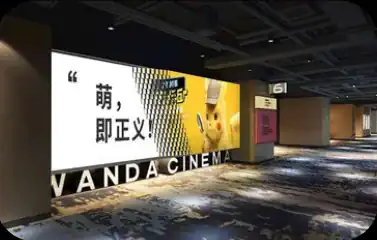

Cinema

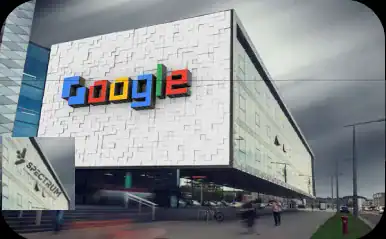

Building

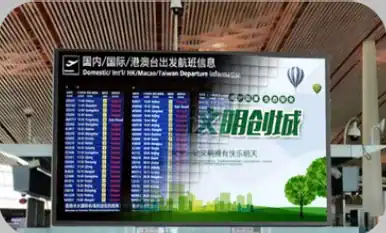

Railway Station

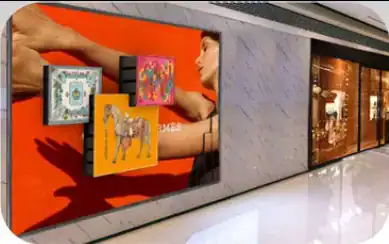

Science Museum
